GC73AB8046

Please Inquire

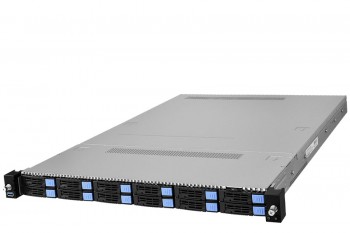

Mitac 1U 12Bays Single Processor Rackmount Server

1S AMD Siena CPU
12 RDIMM slots with DDR5-4800 memory support
12 2.5" hot-swap NVMe with 4 2.5" SATA drive bays
1 FH/HL + 1 FH/FL PCIe 5.0 x16 slots

Storage configuration notice:
12x 2.5" NVMe U.2 drive
2x M.2

SKU	B8046G73AE12HR

Processor

Q'ty / Socket Type:
(1) AMD Socket SP6

Supported CPU Series:
(1) AMD EPYC™ 8004 Series Processor

Thermal Design Power Wattage:
Max up to 225W (TDP)

Memory

Supported DIMM Qty:
(12) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) - 4th Gen. / RDIMM DDR5 3600 MHz (2DPC)

Capacity:
Up to 1,152GB RDIMM DDR5 4800/3600 memory

Memory channel:
6 Channels per CPU

Memory voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

Dimension (D x W x H):
28.74" x 17.26" x 1.72"
730mm x 438.5mm x 43.6mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) ID w/ LED

LEDs:
(1) ID / (1) PWR

I/O Ports:
(1) USB 3.2 Gen.1 port

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5

Onboard Devices

LAN
PHY:
Realtek RTL8211F

Storage NVMe
Connector (M.2):
(2) 22110/2280 (by PCIe Gen 3 interface)
Connector (U.2):
(6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe

HDD Drive Bays

Q'ty / Type:
(12) 2.5" hot-swap NVMe HDD/SSDs

Front Drive Bay Interface:
(12) NVMe U.2

Front Drive Backplane Support:
NVMe / SATA 6Gb/s

Expansion Slots

PCIe:
(1) PCIe Gen 5 x16 slot / (1) PCIe Gen 5 x16 from (2) MCIO x8

Pre-installed TYAN Riser Card (PCIe Gen.5):
(1) M8046G73-L16-1F riser for (1) FH/HL PCIe Gen.5 x 16 slot / (1) CEM Riser for (1) FH/FL PCIe Gen.5 x 16 slot

Others:
(1) DC-SCM slot

Physical Dimension Abbreviation:
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) / FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm)

Power Supply

Type:
CRPS

Input Range:
AC 100-127V/12A / AC 200-240V/8.5A

Frequency:
50/60 Hz

Output Watts:
1,300 Watts

Efficiency:
80 plus Titanium

Redundancy:
1+1

Input Output

USB:
(1) USB2.0 port (@ rear) / (1) USB3.2 Gen.1 port (@ front) / (1) USB3.2 Gen.1 port (@ rear)

RJ-45:
(1) GbE port dedicated for IPMI

Button:
ID Button / Power Button / Reset Button

Cooling

Fan:
(8) 4056 fans

Air Duct:
(2) Tailored Air Duct

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support：
Please refer to our TPM supported list.
Interface：
SPI

System Monitoring
Chipset：
Aspeed AST2600
Temperature：
Monitors temperature for CPU & memory & system environment
Voltage：
Monitors voltage for CPU, memory, chipset & power supply
LED：
Over temperature warning indicator / Fan & PSU fail LED indicator
Others：
Watchdog timer support

Server Management
Onboard Chipset：
Onboard Aspeed AST2600 (on DCSCM module)
AST2600 iKVM Feature：
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature：
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

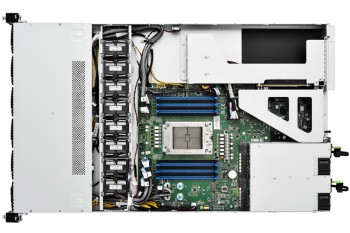

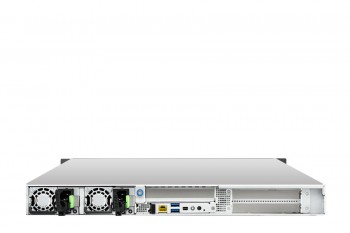

PHOTOS

GC73AB8046

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 8024PN (2.05GHz,80W)

AMD EPYC 4th Gen Processor 8024P (2.40GHz,90W)

Added

AMD EPYC 4th Gen Processor 8124P (2.45GHz,125W)

AMD EPYC 4th Gen Processor 8224P (2.55GHz,160W)

AMD EPYC 4th Gen Processor 8224PN (2.00GHz,120W)

AMD EPYC 4th Gen Processor 8124PN (2.00GHz,100W)

AMD EPYC 4th Gen Processor 8324P (2.65GHz,180W)

AMD EPYC 4th Gen Processor 8434P (2.50GHz,200W)

AMD EPYC 4th Gen Processor 8434PN (2.00GHz,155W)

AMD EPYC 4th Gen Processor 8324PN (2.05GHz,130W)

AMD EPYC 4th Gen Processor 8534P (2.30GHz,200W)

AMD EPYC 4th Gen Processor 8534PN (2.00GHz,175W)

MEMORY

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Intel D7-P5520 NVMe U.2 SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

NETWORK CARD

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

*No Network Card

Added

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
