GC68AB8056-2T

Please Inquire

Mitac 1U 12Bays Single Processor Rackmount Server

1S AMD Genoa / Bergamo / Genoa X CPU
24 DIMM slots w/ DDR5 4800 memory support
12 NVMe U.2 hot swap, tool less drive bays
PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
2 NVMe M.2 slots for boot drives

SKU	B8056G68AE12HR-2T

Processor

Q'ty / Socket Type:
(1) AMD Socket SP5

Supported CPU Series:
(1) AMD EPYC™ 9004 Series Processor

Thermal Design Power Wattage:
Max up to 360W* (cTDP)

Memory

Supported DIMM Qty:
(24) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 3600 MHz (2DPC)

Capacity:
Up to 3,072GB RDIMM/3DS RDIMM DDR5 3600 memory

Memory channel:
12 Channels per CPU

Memory voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

Dimension (D x W x H):
26.77" x 17.26" x 1.69"
680mm x 438.5mm x 43mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) ID w/ LED

LEDs:
(1) ID / (1) PWR

I/O Ports:
(1) USB 3.2 Gen.1 port

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5

Onboard Devices

LAN
Q'ty / Port:
(2) 10GbE ports + (1) GbE dedicated for IPMI
Controller:
Intel X710-AT2
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(1) SFF-TA-1016 (MCIO 8x) for (4) SATA ports
Controller:
Direct from AMD EPYC CPU

Storage NVMe
Connector (M.2):
(2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2):
(6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s

Front Drive Bay Interface:
(12) NVMe with (4) SATA 6Gb/s / SAS 12Gb/s ports

Front Drive Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe

Expansion Slots

PCIe:
(2) PCIe Gen 5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5):
(1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left) / (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)

Others:
(1) PCIe Gen.5 x16 OCP 3.0 mezzanine slot

Power Supply

Type:
Slim 1U

Input Range:
AC 100-240V/12-6A

Frequency:
50/60 Hz

Output Watts:
850 Watts

Efficiency:
80 plus Platinum

Redundancy:
1+1

Serviceability:
Hot-swap

Input Output

USB:
(1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 port (@ front) / (2) USB3.2 Gen.1 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(2) 10 GbE ports + (1) dedicated GbE for IPMI

Button:
UID Button / Power Button

Cooling

Fan:
(3) 4028 fans / (3) 4056 fans

Air Duct:
Tailored Air Duct

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

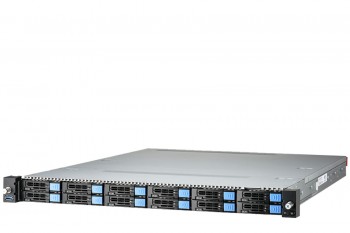

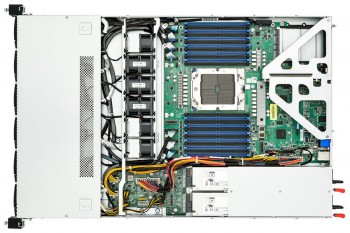

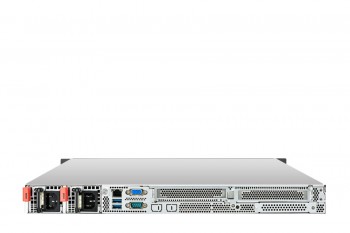

PHOTOS

GC68AB8056-2T

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9684X (3.42GHz,400W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

MEMORY

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

*No NVMe M.2 Drives

Added

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

*No NVMe U.2 Drives

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Intel D7-P5520 NVMe U.2 SSD 3.84TB

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

*No Network Card

Added

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
