R2520G6-U2XD

Please Inquire

Mitac 2U 24Bays Dual Processor Rackmount Server

Up to 350W 2 Intel Xeon 6 processors with air cooling
32 RDIMM slots w/ DDR5-6400 (1DPC)memory support
Up to 1 PCIe Gen 5 x16 slot (w/ x8 link in HH/HL) + 2 PCIe Gen 5 x16 slots (FH/HL) + 2 PCIe Gen 5 x16 slots for 2 Retimer Cards (AXXG5X16RTM) + 2 OCP v3.0 LAN mezzanine slots
24 NVMe U.2 hot-swap, tool-less drive bays
2 NVMe M.2 22110 / 2280 slots
DC-SCM v2.0
(1+1) 2000W RPSU, 80+ Titanium

Storage configuration notice:
24x 2.5" Hard drive
2x M.2

SKU	R2520G6U2XD

Processor

Q'ty / Socket Type:
(2) LGA4710

Supported CPU Series:
Xeon® 6 Processor

Thermal Design Power Wattage:
Max up to 350W (TDP)

Memory

Supported DIMM Qty:
(16)+(16) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 6400 MHz (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) -P Core only

Capacity:
Up to 8192GB RDIMM *Follow latest Intel DDR5 Memory POR

Memory channel:
8-Channel DDR5 RDIMM / MRDIMM

Memory voltage:
1.1V

Chassis

2U Rackmount Chassis

Dimensions

Dimension (D x W x H):
30.31" x 17.24" x 3.43"
770mm x 438mm x 87mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) ID w/ LED / (1) RST / (1) NMI

LEDs:
(1) PWR / (1) ID / (1) Drive / (1) System Event

I/O Ports:
(1) USB 2.0 port / (1) USB 3.0 port

Bios	Brand / ROM size: AMI / 64MB Feature: PXE boot support / Console Redirection / SMBIOS 3.6 / ACPI 6.5 / ACPI sleeping states S0, S5 / UEFI Secure Boot / IPMI Boot / Redfish support / PFR Secure Update / HTTP Boot

Onboard Devices

LAN
Q'ty / Port:
(1) GbE dedicated for IPMI
PHY:
Realtek RTL8211F

Storage NVMe
Connector (M.2):
(2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2):
(12) SFF-TA-1016 (MCIO 8x) for (24) front NVMe

Graphic
Connector type:
Mini Display Port
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(24) 2.5" Hot-Swap SSDs

Front Drive Bay Interface:
(24) SATA 6Gb/s / SAS 24Gb/s / NVMe U.2

Front Drive Backplane Support:
SAS 24Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

PCIe:
(1) PCIe Gen 5 x16 slot (w/ x8 link in HH/HL) / (2) PCIe Gen 5 x16 slots (FH/HL) / (2) PCIe Gen 5 x16 slots for (2) Retimer Cards (AXXG5X16RTM)

Others:
(2) PCIe Gen.5 x16 OCP 3.0 mezzanine slots

Power Supply

Type:
RPSU

Input Range:
AC 100-127V/12A / AC 200-240V/ 10A

Frequency:
50/60 Hz

Output Watts:
2,000 Watts

Efficiency:
80 plus Titanium

Redundancy:
1+1

Notification:
We have additional PSU options available, including 1300W, 2700W, and 3200W.

Input Output

USB:
(1) USB3.0 port / (1) USB UART (on DCSCM)

DisplayPort:
(1) Mini Display Port

RJ-45:
(1) GbE port dedicated for IPMI

Cooling

Fan:
(6) 6056 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
5%~95%, non-condensing

Details

TPM (Optional)

TPM Support:

TM-TPM2-MS-I-9672

Interface:

SPI

System Monitoring

Chipset Aspeed AST2600

Temperature:

Monitors temperature for CPU & memory & system environment

Voltage:

Monitors voltage for CPU, memory, chipset & power supply

LED:

Over temperature warning indicator / Fan & PSU fail LED indicator

Server Management

Onboard Chipset:

Onboard Aspeed AST2600 (on DCSCM module)

AST2600 iKVM Feature:

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

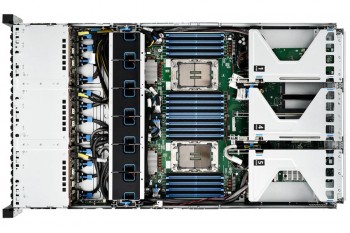

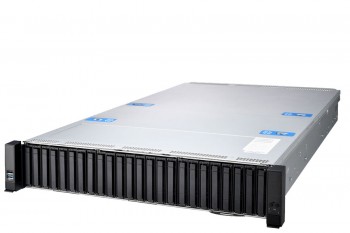

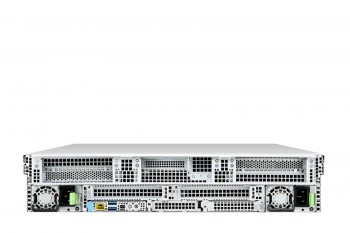

PHOTOS

MY CONFIGURATION

CPU

Intel® Xeon® 6 6700 Series Processors 6710E (2.40 GHz 250W)

Added

Intel® Xeon® 6 6700 Series Processors 6746E (2.00 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6756E (1.80 GHz 225W)

Intel® Xeon® 6 6700 Series Processors 6740E (2.40 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6766E (1.90 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6731E (2.20 GHz 250W)

Intel® Xeon® 6 6700 Series Processors 6780E (2.20 GHz 330W)

MEMORY

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

*No NVMe M.2 Drives

Added

WD Black SN850 M.2 G4 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

*No Network Card

Added

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
