G4520G6-N

Please Inquire

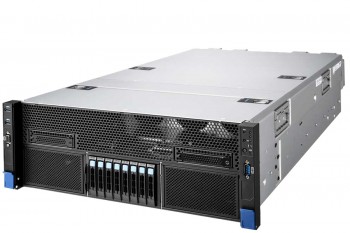

Mitac/Tyan 4U 8Bays Dual Processor Rackmount Server

32 RDIMM slots with DDR5-6400 (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) P core memory support
2 Broadcom PEX89104 PCIe 5.0 switch deployed
11 FH/FL PCIe 5.0 x16
8 NVMe U.2 hot-swap, tool-less drive bays
3 NVMe M.2 22110/2280 slots
3 PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
8 Hot-swap fans and redundant PSU

Applications:
AI / Machine Learning / HPC / Big Data Analytics / Media and Entertainment / Cloud and Virtualization / Edge AI and IoT / Cybersecurity and Blockchain / Finance and Risk Analysis / Healthcare and Life Sciences / Education and Research

Storage configuration notice:
8x 2.5" NVMe U.2 drive
3x M.2

SPECIFICATIONS

SKU	G4520G6U2BC-N

Processor

Q'ty / Socket Type:
(2) LGA4710
Supported CPU Series:
Xeon® 6 Processor
Thermal Design Power Wattage:
Max up to 350W* (TDP)

Memory

Supported DIMM Qty:
(16)+(16) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 6400 MHz (1DPC) / 5200MHz (2DPC) / MRDIMM 8000 (1DPC) -P Core only

Capacity:
Up to 8192GB RDIMM *Follow latest Intel DDR5 Memory POR

Memory channel:
8-Channel DDR5 RDIMM / MRDIMM

Memory voltage:
1.1V

Chassis

4U Rackmount Chassis

Dimensions

Dimension (D x W x H):
32.78" x 17.62" x 6.9"
934.28mm x 447.4mm x 176mm

Front Panel

Buttons:
(1) UID / (1) PWR w/ LED / (1) RST

LEDs:
(1) HDD / (1) ID / (1) System Event

I/O Ports:
(2) USB 3.2 Gen.1 ports / (1) COM Port / (1) VGA port

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0,S1,S5

Onboard Devices

LAN

Q'ty / Port:

(1) GbE dedicated for IPMI

PHY:

Realtek RTL8211F

Storage NVMe

Connector (M.2):

(3) 22110/2280 (by PCIe Gen 4 interface)

Graphic

Connector:

type D-Sub 15-pin

Resolution:

Up to 1920x1200

Chipset:

Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(8) 2.5" Hot-Swap NVMe HDD/SSDs

Front Drive Bay Interface:
(8) NVMe U.2

Front Drive Backplane Support:
NVMe

Expansion Slots

PCIe:
(11) PCIe Gen 5 x16 slots (FH/FL)
Others:
(3) PCIe Gen.5 x16 OCP 3.0 mezzanine slots

Power Supply

Type:
CRPS
Input Range:
AC 200-240V/16A
Frequency:
50/60 Hz
Output Watts:
9,600Watts
Efficiency:
80 plus Titanium
Redundancy:
3+1

Input Output

USB:
(2) USB3.0 ports / (2) USB3.2 Gen.1 ports

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(1) GbE port dedicated for IPMI

Cooling

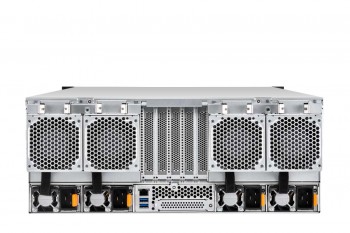

(4) 8080 hot-swap fan modules at rear / (8) 8038 hot-swappable fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator

Server Management:
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
