FT65TB7130-2T-N

Please Inquire

Mitac/Tyan 4U 10Bays Dual Processor Rackmount Server

2S Intel Emerald Rapids / Sapphire Rapids CPU
16 DIMM slots w/ DDR5 4800 memory support
2 FH/10.5"L double-wide PCIe 5.0 x16 + 1 FH/10.5"L single-wide PCIe 5.0 x16 slots
8 3.5" SATA + 2 2.5" SATA hot swap , tool less drive bays
1 NVMe M.2 2280 slot
Single ATX12V PSU

Storage configuration notice:
2x 2.5" HDD drive
8x 3.5" HDD Drive
1x M.2

SKU	B7130F65TV10H-2T-N

Processor

Q'ty / Socket Type:
(2) LGA4677

Supported CPU Series:
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors

Thermal Design Power Wattage:
Max up to 250W (TDP)

Memory

Supported DIMM Qty:
(8)+(8) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) - 5th Gen.

Capacity:
Up to 2,048GB RDIMM/RDIMM-3DS DDR5 5600/4800 *Follow latest Intel DDR5 Memory POR

Memory channel:
8 Channels per CPU

Memory voltage:
1.1V

Chassis

Workstation Server

Dimensions

Dimension (D x W x H):
25.5” x 16.8” x 6.9”
650mm x 427mm x 176mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) UID / (1) RST / (1) NMI

LEDs:
(1) HDD / (1) ID / (3) LAN / (1) System Event

I/O Ports:
(2) USB 3.0 ports

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5

Onboard Devices

LAN
Q'ty / Port：
(2) 10GbE ports + (1) GbE dedicated for IPMI
Controller：
Intel X710-AT2
PHY：
Realtek RTL8211F

Storage SATA
Connector：
(10) SATA
Controller：
Intel C741
Speed：
6Gb/s
RAID：
RAID 0/1/10/5 (Intel RSTe)

Storage NVMe
Connector (M.2)：
(1) 2280 (by PCIe 4.0 interface)

Graphic
Connector type：
D-Sub 15-pin
Resolution：
Up to 1920x1200
Chipset：
Aspeed AST2600

HDD Drive Bays

Q'ty / Type：
(2) 2.5" Hot-Swap HDD/SSDs / (8) 3.5" Hot-Swap HDD/SSDs

Front Drive Bay Interface：
(2) SATA 6Gb/s / (8) SATA 6Gb/s / SAS 12Gb/s

Front Drive Backplane Support：
SAS 12Gb/s /SATA 6Gb/s

Notification：
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact our technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

(2) PCIe Gen 5 x8 slots / (3) PCIe Gen 5 x16 slots

Power Supply

Type:

ATX

Input Range:

AC 100~240V/15~12A

Frequency:

50/60 Hz

Output Watts:

1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)

Efficiency:

80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)

Redundancy:

N/A

Input Output

USB:
(1) USB2.0 TYPE-A conn. / (1) USB3.1 Gen.1 header / (1) USB3.1 Gen.1 ports

COM:
(1) header

VGA:
(1) D-Sub 15-pin port

RJ-45:
(2) 10 GbE ports + (1) dedicated GbE for IPMI

SATA:
(14) SATA-III ports from AHCI

Button:
ID Button / Power Button / Reset Button

Cooling

(2) 8038 exhausted fans module at rear / (3) easy-swap 12038 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

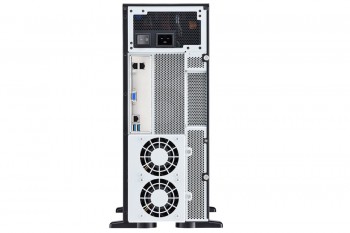

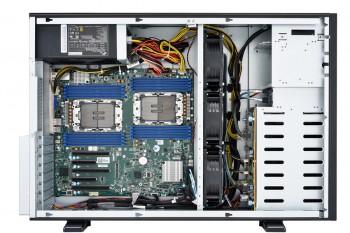

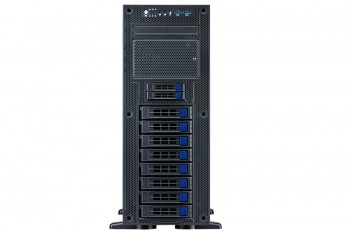

PHOTOS
