FT65TB8050-2T-N

Please Inquire

Mitac/Tyan 4U 10Bays Single AMD Processor Rackmount Server

1S AMD Turin / Genoa / Bergamo / Genoa X CPU
8 DIMM slots w/ DDR5 6000 memory support
5 FH/10.5"L PCIe 5.0 x16 slots
Supports 2 DW x16 + 2 SW x16 GPU cards
8 3.5" SATA + 2 NVMe U.2 hot swap, tool less drive bays
2 NVMe M.2 22110 / 2280 slots
2 10GbE + 2 GbE + 1 IPMI ports
Single ATX12V PSU

Storage configuration notice:
2x 2.5" HDD Drive
8x 3.5" HDD Drive
2x M.2

SKU	B8050F65TV8E2H-2T-N

Processor

Q'ty / Socket Type:
(1) AMD Socket SP5

Supported CPU Series:
(1) AMD EPYC™ 9004/9005 Series Processors

Thermal Design Power Wattage:
Max up to 320W (cTDP)

Memory

Supported DIMM Qty:
(8) DIMM slots

DIMM Type / Speed:
3DS RDIMM DDR5 6000MHz / RDIMM DDR5 6000MHz

Capacity:
Up to 2,048GB RDIMM/3DS RDIMM DDR5 6000 memory

Memory channel:
8 Channels per CPU

Memory voltage:
1.1V

Chassis

Workstation Server

Dimensions

Dimension (D x W x H):
25.5” x 16.8” x 6.9”
650mm x 427mm x 176mm

Front Panel

Buttons:
(1) ID / (1) PWR w/ LED / (1) RST

LEDs:
(1) HDD / (1) ID / (2) LAN / (1) System Event

I/O Ports:
(2) USB 3.0 ports

Bios	Brand / ROM size: AMI / 64MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5

Onboard Devices

LAN

Q'ty / Port:

(2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI

Controller:

Intel I210-AT / Intel X710-AT2

PHY:

Realtek RTL8211F

Storage SATA

Connector:

(10) SATA

Controller:

Direct from AMD EPYC CPU

Speed:

6Gb/s

RAID:

N/A

Storage NVMe

Connector:

(M.2) (2) 22110/2280 (by PCIe Gen 4 interface)

Connector:

(U.2) (2) 2.5"NVMe SSD

Graphic

Connector type:

D-Sub 15-pin

Resolution:

Up to 1920x1200

Chipset:

Aspeed AST2600

HDD Drive Bays

Q'ty / Type:

(2) 2.5" Hot-Swap NVMe HDD/SSDs / (8) 3.5" Hot-swap HDD/SSDs

Front Drive Bay Interface:

(2) SATA 6Gb/s / NVMe / (8) SATA 6Gb/s / SAS 12Gb/s

Front Drive Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification:

The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact our technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

PCIe:
(5) PCIe Gen 5 x16 slots

Physical Dimension Abbreviation:
FH/10.5”L (Full-height / 10.5” in length ): 4.4" x 10.5" (111.2 x 266.7mm)

Power Supply

Type:
ATX
Input Range:
AC 100~240V/15~12A
Frequency:
50/60 Hz
Output Watts:
1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency:
80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)

Input Output

USB:
(2) USB3.0 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(2) 10GbE ports + (2) GbE ports + (1) dedicated GbE for IPMI

Button:
ID Button

Cooling

(2) 8038 exhausted fans module at rear / (3) easy-swap 12038 fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

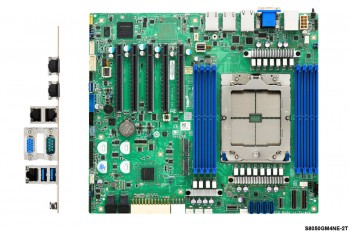

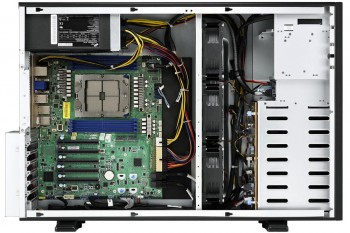

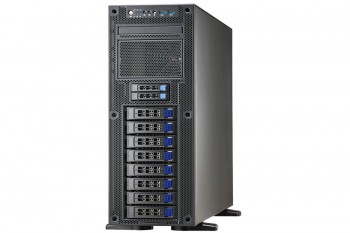

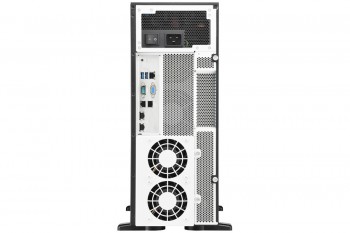

PHOTOS

FT65TB8050-2T-N

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 8024PN (2.05GHz,80W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 8024P (2.40GHz,90W)

AMD EPYC 4th Gen Processor 8124P (2.45GHz,125W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 8224P (2.55GHz,160W)

AMD EPYC 4th Gen Processor 8224PN (2.00GHz,120W)

AMD EPYC 4th Gen Processor 8324P (2.65GHz,180W)

AMD EPYC 4th Gen Processor 8124PN (2.00GHz,100W)

AMD EPYC 4th Gen Processor 8324PN (2.05GHz,130W)

AMD EPYC 4th Gen Processor 8434PN (2.00GHz,155W)

AMD EPYC 4th Gen Processor 8434P (2.50GHz,200W)

AMD EPYC 4th Gen Processor 8534P (2.30GHz,200W)

AMD EPYC 4th Gen Processor 8534PN (2.00GHz,175W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9175F (4.2GHz,320W)

AMD EPYC 5th Gen Processor 9275F (4.1GHz,320W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9375F (3.8GHz,320W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

AMD EPYC 5th Gen Processor 9645 (2.3GHz,320W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

MEMORY

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

NVMe M.2

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

*No NVMe M.2 Drives

Added

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

OS DRIVE

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

*No OS Drive

Added

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

GPU/Coprocessor

NVIDIA L40S 48GB GDDR6 GPU Card

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA H200 141GB HBM3e GPU Card

NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
