FT65TB5652-G

Please Inquire

Mitac/Tyan 2U 8Bays single Processor Rackmount Server

1S Intel Emerald Rapids / Sapphire Rapids CPU
8 DIMM slots with DDR5-4800 memory support
4 FH/FL double-wide PCIe 5.0 x16 slots
6 3.5" SATA + 2 NVMe U.2 hot-swap, tool-less drive bays
1 NVMe M.2 2280 slot (PCIe 3.0 x4)
1 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
Single ATX12V PSU

Storage configuration notice:
2x 2.5" NVMe U.2 drive
6x 3.5" HDD Drive
1x M.2

SKU	B5652F65TV6E2H-G

Processor

Q'ty / Socket Type:
(1) LGA4677

Supported CPU Series:
4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors

Thermal Design Power Wattage:
Max up to 350W (TDP)

Memory

Supported DIMM Qty:

(8) DIMM slots

DIMM Type / Speed:

RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MHz (1DPC) / 4400MHz (2DPC) - 5th Gen.

Capacity:

Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 5600/4800/4400 /*Follow latest Intel DDR5 Memory POR

Memory channel 8 Channels per CPU

Memory voltage 1.1V

Chassis

Workstation Server

Dimensions

Dimension (D x W x H):
25.59" x 17.245" x 6.93"
650mm x 438mm x 176mm

Front Panel

Buttons:
(1) UID / (1) PWR w/ LED / (1) RST

LEDs:
(1) HDD / (1) ID / (1) System Event / (2) LAN activity

I/O Ports:
(2) USB 2.0 ports / (1) USB 3.2 Gen.1 port / (1) COM Port / (1) LAN Port (IPMI) / (1) VGA port / (1) Line in / Line out / MIC

Bios	Brand / ROM size: AMI / 32MB Feature: Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5

Onboard Devices

LAN
Q'ty / Port:
(1) GbE port + (1) GbE dedicated for IPMI
Controller:
Intel I210
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(6) SATA
Controller:
Intel C741
Speed:
6Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

Storage NVMe
Connector (M.2):
(1) 2280 (by PCIe 3.0 x4)
Connector (U.2):
(1) MCIO x8

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(2) 2.5" Hot-Swap NVMe HDD/SSDs / (6) 3.5"/2.5" Hot-Swap SSD/HDD

Front Drive Bay Interface:
(2) SATA 6Gb/s / NVMe / (6) SATA 6Gb/s / SAS 12Gb/s

Front Drive Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification:
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact our technical support if a discrete SAS HBA/RAID adapter is required.

Expansion Slots

(1) PCIe Gen 5 x8 slot / (4) PCIe Gen 5 x16 slots

Power Supply

Type:
ATX
Input Range:
AC 100~240V/15~12A
Frequency:
50/60 Hz
Output Watts:
1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency:
80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)
Redundancy:
N/A

Input Output

USB:
(2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports (@ rear)
COM:
(1) DB-9 COM port
VGA:
(1) D-Sub 15-pin port
Audio:
(1) 2x5-pin header
RJ-45:
(1) GbE ports + (1) GbE dedicated for IPMI
Button:
UID Button

Cooling

Fan:
(3) 12cm fans

Air Duct:
Tailored Air Duct

Operating Environment

Operating Temp.:
0° C ~ 40° C (32° F~ 104° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)

TPM Support:

Please refer to our TPM supported list.

Interface:

SPI

System Monitoring

Chipset:

Aspeed AST2600

Temperature:

Monitors temperature for CPU & memory & system environment

Voltage Monitors voltage for CPU, memory, chipset & power supply

LED:

Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator

Others:

Watchdog timer support

Server Management

Onboard Chipset:

Onboard Aspeed AST2600

AST2600 iKVM Feature:

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature:

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

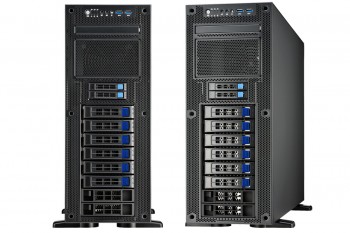

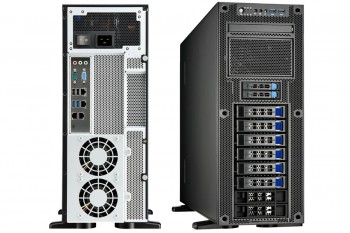

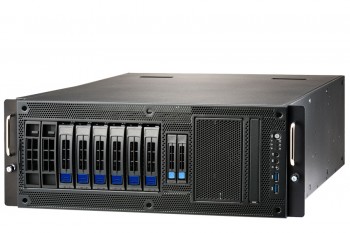

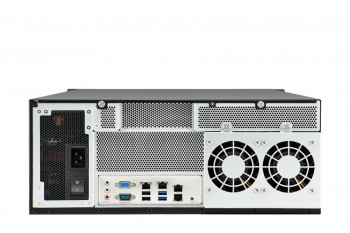

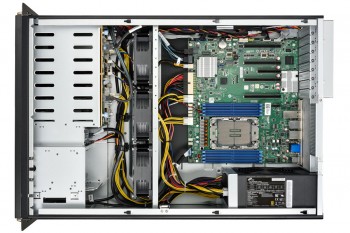

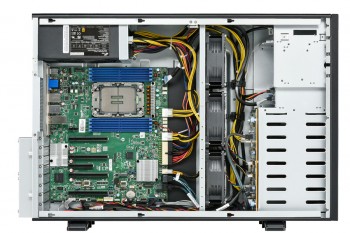

PHOTOS

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)

Added

Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)

Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)

MEMORY

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Added

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

NVMe M.2

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

NVMe U.2/U.3

*No NVMe U.2/U.3 Drives

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

NETWORK CARD

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

GPU/Coprocessor

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H200 141GB HBM3e GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

4698

0.0000
