HG68B8016

Please Inquire

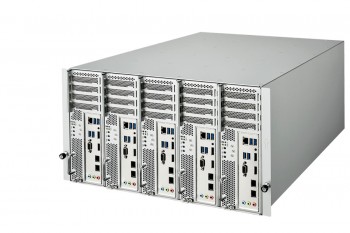

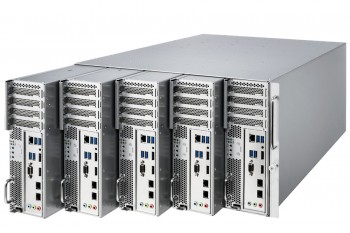

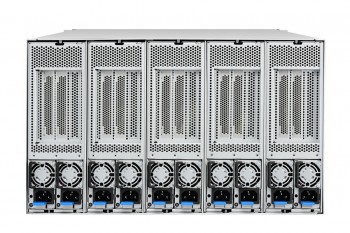

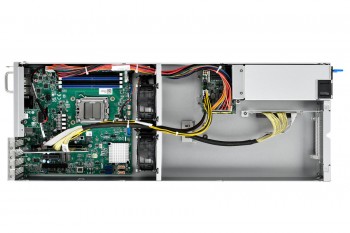

Mitac/Tyan 6U 5Nodes Single AMD Processor per Node Rackmount Cloud Server

Single-socket AMD EPYC™ 4005/4004 series processors (per node)
4 DIMM slots support up to UDDR5-5600 ECC memory (1DPC config.; per node)
2 NVMe M.2 (per node)
1 PCIe 5.0 and 2 PCIe 4.0 slots (per node)

SKU	B8016H68D5

Processor

(per node)

Q'ty / Socket Type:
(1) AMD Socket AM5

Supported CPU Series:
(1) AMD Ryzen 7000 Series Processor / (1) AMD EPYC™ 4005/4004 Series Processor

Configurable Thermal Design Power Wattage:
Max up to 105W (TDP)

Memory

(per node)

Supported DIMM Qty:
(4) DIMM slots

DIMM Type / Speed:
DDR5 ECC UDIMM & non-ECC 5600

Capacity:
Up to 192GB UDIMM

Memory channel:
2 Channels per CPU

Memory voltage:
1.1V

Chassis

6U Rackmount Chassis

Dimensions

Dimension (D x W x H):
26.85" x 17.60" x 10.44"
682mm x 447mm x 265.3mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) RST

LEDs:
(1) PWR / (1) HDD / (1) Warning

I/O Ports:
(4) USB 3.2 Gen.1 ports / (1) VGA port / (2) Display ports / (1) Line in / Line out / MIC / (3) RJ-45

Bios	(per node) Brand / ROM size: AMI / 32MB Feature: Console Redirection / ACPI S0, S5. S3

Onboard Devices

LAN (per node)

Q'ty / Port:

(2) GbE ports

Controller:

Intel I210

PHY:

Realtek RTL8211F

Storage NVMe (per node)

Connector:

(M.2) (2) 2280 (by PCIe.4 interface)

Graphic (per node)

Connector type:

D-Sub 15-pin

Resolution:

Up to 1920x1200

Chipset:

Aspeed AST2600

Expansion Slots

(per node)
PCIe:
(1) PCIe Gen.4 x4 slot / (1) PCIe Gen.4 x8 slot ( w/ x4 link) / (1) PCIe Gen.5 x16 slot

Power Supply

(per node)
Type:
CRPS
Input Range:
AC 100-127V/10A / AC 200-240V/5A
Frequency:
50-60 Hz
Output Watts:
800 Watts
Efficiency:
80 plus Titanium
Redundancy:
1+1

Input Output

(per node)
USB:
(4) USB3.2 Gen.1 ports

VGA:
(2) Display ports / (1) D-Sub 15-pin port

Audio:
(1) Line in / Line out / MIC

RJ-45:
(2) GbE ports

Button:
ID Button / Power Button / Reset Button

Cooling

(2) easy-swap 8038 fans are pre-installed / per node

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4005 Series Processor 4565P (4.30GHz,170W)

AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)

AMD EPYC 4005 Series Processor 4585PX (4.30GHz,170W)

AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)

AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)

Added

AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4484PX (4.40GHz,120W)

AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)

AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)

AMD EPYC 4004 Series Processor 4564P (4.50GHz,170W)

AMD EPYC 4004 Series Processor 4584PX (4.20GHz,120W)

MEMORY

16G DDR5 5600MHz ECC UDIMM

Added

32G DDR5 5600MHz ECC UDIMM

NVMe M.2

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

*No NVMe M.2 Drives

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
