G8825Z5

Please Inquire

Mitac/Tyan 2U 12Bays Dual Processor Rackmount Server

(2) AMD EPYC™ 9005/9004 AMD CPUs (Turin / Genoa)
(8) AMD Instinct™ MI325X accelerators support
(12+12) 6TB RDIMM DDR5 6000 memory support
(8) Half-Height + (4) Full-Height PCIe 5.0 x16 slots
(2) NVMe M.2 2280/22110 slots
(8) hot-swap 2.5" NVME U.2 drive bays
(15) hot-swap Fans
(4+2) 3300W hot-swap RPSU, 80+ Titanium

Storage configuration notice:
8x 2.5" NVMe U.2 drive
2x M.2

SKU	G8825Z5U2BC

Processor

Q'ty / Socket Type:
(2) AMD Socket SP5

Supported CPU Series:
(2) AMD EPYC™ 9004 Series Processors / (2) AMD EPYC™ 9005 Series Processors

Thermal Design Power Wattage:
Max up to 500W (TDP)

Memory

Supported DIMM Qty:
(12)+(12) DIMM slots

DIMM Type / Speed:
RDIMM DDR5 6400MHz

Capacity:
Up to 6,144GB RDIMM DDR5 6000 memory

Memory channel:
12 Channels per CPU

Memory voltage:
1.1V

Chassis

8U Rackmount Chassis

Dimensions

Dimension (D x W x H):
33.46" x 17.63" x 13.82"
850mm x 448mm x 351mm

Front Panel

Buttons:
(1) PWR w/ LED / (1) UID / (1) RST

LEDs:
(1) PWR / (1) LAN / (1) System Event

I/O Ports:
(2) USB 3.0 ports + (1) RJ-45

Bios	Brand / ROM size: AMI / 32MB Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.7/PnP/Wake on LAN / ACPI 6.5 / ACPI sleeping states S0, S5

Onboard Devices

LAN

Q'ty / Port:

(1) GbE dedicated for IPMI

PHY:

Realtek RTL8211FD-CG

Storage NVMe

Connector (U.2):

(4) SFF-TA-1016 (MCIO 8x) for (8) front NVMe

Graphic

Connector type:

D-Sub 15-pin

Resolution:

Up to 1920x1200

Chipset:

Aspeed AST2600

HDD Drive Bays

Q'ty / Type:
(8) 2.5" Hot-Swap SSDs

Front Drive Bay Interface:
(8) NVMe U.2

Front Drive Backplane Support:
NVMe

Expansion Slots

(4) PCIe Gen 5 x16 slots (FH/HL) / (8) PCIe Gen 5 x16 slots (HH/HL)

Power Supply

Type:
RPSU
Input Range:
AC 200-220V/ 16A / AC 220-240V/16A
Frequency:
47/63 Hz
Output Watts:
3,300 Watts
Efficiency:
80 plus Titanium
Redundancy:
4+2 ( AC 220~240V /16A) / 5+1 ( AC 200~220V /16A)

Input Output

USB:
(2) USB3.0 ports

VGA:
(1) D-Sub 15-pin port

RJ-45:
(1) GbE port dedicated for IPMI

Button:
UID Button / Power Button / Reset Button

Others:
(1) UID LED / (1) PWR LED

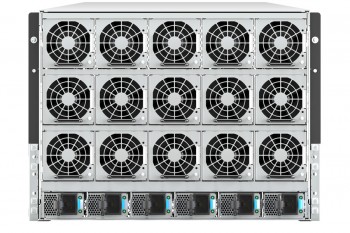

Cooling

(15) 8cm fans

Operating Environment

Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C

Details

TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9684X (3.42GHz,400W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 8024P (2.40GHz,90W)

AMD EPYC 4th Gen Processor 8124PN (2.00GHz,100W)

AMD EPYC 4th Gen Processor 8324P (2.65GHz,180W)

AMD EPYC 4th Gen Processor 8024PN (2.05GHz,80W)

AMD EPYC 4th Gen Processor 8224PN (2.00GHz,120W)

AMD EPYC 4th Gen Processor 8124P (2.45GHz,125W)

AMD EPYC 4th Gen Processor 8224P (2.55GHz,160W)

AMD EPYC 4th Gen Processor 8434P (2.50GHz,200W)

AMD EPYC 4th Gen Processor 8324PN (2.05GHz,130W)

AMD EPYC 4th Gen Processor 8434PN (2.00GHz,155W)

AMD EPYC 4th Gen Processor 8534P (2.30GHz,200W)

AMD EPYC 4th Gen Processor 8534PN (2.00GHz,175W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

AMD EPYC 5th Gen Processor 9275F (4.1GHz,320W)

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9175F (4.2GHz,320W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9475F (3.65GHz,400W)

AMD EPYC 5th Gen Processor 9375F (3.8GHz,320W)

AMD EPYC 5th Gen Processor 9555 (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9555P (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9565 (3.15GHz,384W)

AMD EPYC 5th Gen Processor 9645 (2.3GHz,320W)

AMD EPYC 5th Gen Processor 9575F (3.3GHz,400W)

AMD EPYC 5th Gen Processor 9825 (2.2GHz,390W)

AMD EPYC 5th Gen Processor 9655P (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9745 (2.4GHz,400W)

AMD EPYC 5th Gen Processor 9655 (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9755 (2.7GHz,500W)

AMD EPYC 5th Gen Processor 9845 (2.1GHz,390W)

AMD EPYC 5th Gen Processor 9965 (2.25GHz,500W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

MEMORY

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

*No NVMe M.2 Drives

Added

NVMe U.2/U.3

*No NVMe U.2/U.3 Drives

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

GPU/Coprocessor

NVIDIA L40S 48GB GDDR6 GPU Card

*No GPU

Added

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA H200 141GB HBM3e GPU Card

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
