1015A-MT

Please Inquire

OVERVIEW

Supermicro 1U 1Bays Single Processor AMD Rackmount Server

AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 Series Processor up to 170W TDP
4 DDR5 UDIMM slots, ECC/Non-ECC DDR5-5200 up to total 192GB
1 PCIe 5.0 x16 FHHL slot
IPMI 2.0 + KVM with Dedicated LAN (1GbE)
Dual 1GbE LAN (Intel® I210-AT)
500W High-Efficiency Power Supply Platinum Level Certified
Web/Hosting Application, Email/Firewall/Application Server, Designed for small and medium businesses

Storage configuration notice:
Hot-swap:
1x Fixed 3.5" drive bays
M.2:
2x M.2 SSD

To maintain quality and integrity, this product is sold only as a completely-assembled system.

SPECIFICATIONS

SKU	AS-1015A-MT

Processor

CPU:
Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors

Core Count:
Up to 16C/32T

Note:
Supports 60W - 170W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 1 single-width GPU

Supported GPU:
NVIDIA PCIe: RTX 4000 Ada Generation, RTX A4000, L4, A2
AMD PCIe: Radeon Pro W7500

CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43 mm)
Width:
17.2" (437 mm)
Depth:
16.9" (429 mm)

Front Panel

LED:
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED

Buttons:
Power On/Off button
System Reset button

Bios	BIOS Type: AMI 32MB SPI Flash

Onboard Devices

SATA:
SATA (6Gbps) ; RAID 0/1 support

NVMe:
NVMe; RAID 0/1 support(Native)

Chipset:
AMD B650

Network Connectivity:
1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT

HDD Drive Bays

Drive Bays Configuration:
Default: Total 1 bay
1 internal fixed 3.5" SATA drive bay
Option A: Total 4 bays
4 internal fixed 2.5" SATA* drive bays
(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:
2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

Expansion Slots

PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x16 FHHL slot

Power Supply

1x 500W Platinum Level (93%) power supply
Dimension (WxHxL):
100 x 40 x 180 mm

Input:
500W: 100-240Vac
500W: 100-240Vac / 50-60Hz

+12V:
Max: 41A / Min: 0.5A (100Vac-240Vac)
Max: 41A / Min: 0.5A

5V SB:
Max: 3A / Min: 0A

Output Type:
24pin ATX

Certification:
Platinum Level Certified

Input Output

LAN:
1 RJ45 1 GbE Dedicated BMC LAN port

USB:
3 Type-A ports(Rear)
2 Type-C ports(Rear)
1 Type-C port(Rear)

Video:
1 VGA port
1 DisplayPort 1.4 port
1 HDMI 2 port

Audio:
Rear Audio

TPM:
1 TPM header

Cooling

Fans:
6x 40mm Fan(s)

Air Shroud:
1 Air Shroud

Operating Environment

ROHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Details

Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
ACPI 6.0 Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Supply Chain Security: Remote Attestation
Runtime BMC Protections

PC Health Monitoring
FAN:
Status monitor for speed control
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Other Features:
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature:
CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

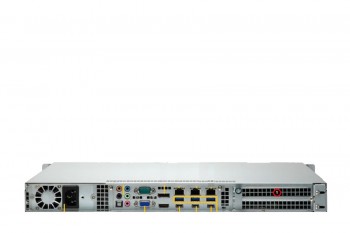

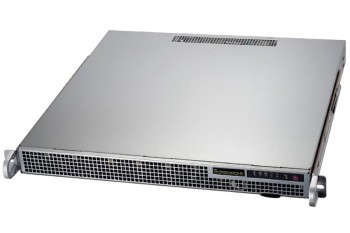

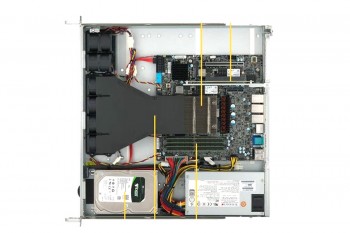

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4484PX (4.40GHz,120W)

AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)

AMD EPYC 4005 Series Processor 4565P (4.30GHz,170W)

AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)

AMD EPYC 4005 Series Processor 4585PX (4.30GHz,170W)

AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)

AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)

Added

AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)

AMD EPYC 4004 Series Processor 4564P (4.50GHz,170W)

AMD EPYC 4004 Series Processor 4584PX (4.20GHz,120W)

MEMORY

16G DDR5 5600MHz ECC UDIMM

Added

32G DDR5 5600MHz ECC UDIMM

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

*No NVMe M.2 Drives

Added

GPU/Coprocessor

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

*No GPU

Added

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA H200 141GB HBM3e GPU Card

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
