3015MR-H8TNR

Please Inquire

OVERVIEW

Supermicro 3U 8-Node 16Bays Single Processor AMD Rackmount MicroCloud Server

Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
AMD Knoll - Integrated I/O Controller Hub
8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot
8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
2200W Redundant 80+ Titanium Level high-efficiency power supplies
Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login

Storage configuration notice:
External:
2x 2.5" U.2 Drive per node

M.2:
1x M.2 per node

To maintain quality and integrity, this product is sold only as a completely-assembled system.

SPECIFICATIONS

SKU	AS-3015MR-H8TNR

Processor

(per Node)
CPU:
Single Socket AM5 (LGA-1718)
AMD EPYC™ 4005/4004 Series Processor

Core Count:
Up to 16C/32T; Up to 128MB Cache

Note:
Supports 65W - 170W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a our representative for details.

GPU (per Node)
Max GPU Count:
Up to 1 single-width GPU

Supported GPU:
NVIDIA PCIe: T4, L4, A2

Memory

(per Node)
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V

Chassis

3U Rackmount Chassis

Dimensions

Height:
5.21" (132 mm)
Width:
17.26" (438 mm)
Depth:
23.2" (589 mm)

Front Panel

LED:
8 Individual Node Status Indicators
Power Failure

Buttons:
Power On/Off

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM

Onboard Devices

(per Node)
NVMe:
NVMe; (Native)

Chipset:
AMD Knoll - Integrated I/O Controller Hub

Network Connectivity:
No NIC option supported

HDD Drive Bays

(per Node)
Drive Bays Configuration:
Default: Total 2 bays
2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays
(*SAS/SATA support may require additional storage controller and/or cables)

M.2:
1 M.2 NVMe/SATA slot (M-key 2280/22110)

Expansion Slots

(per Node)
PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x8 (in x16) LP slot
1 PCIe 5.0 x8 MicroLP slot

Power Supply

2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
76 x 40 x 336 mm

Total Output Power:
(for CCC only)
(for UL/cUL use only)

Input:
1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)

+12V:
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)

5V SB:
Max: 1A / Min: 0A

Output Type:
Backplanes (gold finger)

Input Output

(per Node)
USB:
2 USB 2.0 ports
1 Type-C port(front)
Video:
1 port
TPM:
1 TPM Onboard/port 80

Cooling

Fans:
4 Heavy Duty 8cm Fan(s)

Air Shroud:
8 Air Shrouds

Operating Environment

ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)

Details

Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI 6.0 Power Management

PC Health Monitoring
Temperature:
Monitoring for CPU and chassis environment
CPU:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN:
Fan speed control, Dual Cooling Zone

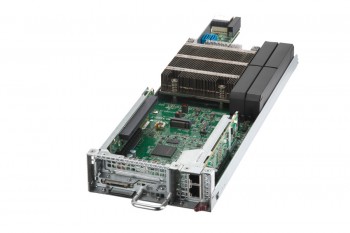

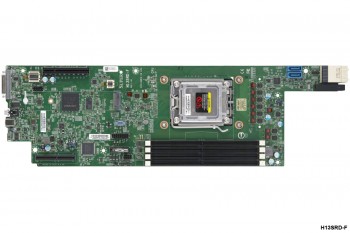

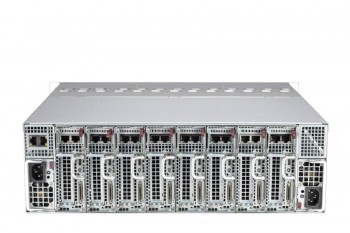

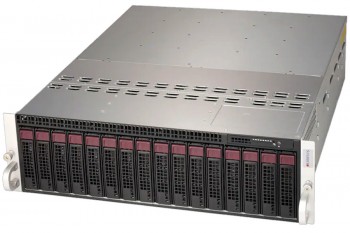

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)

AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)

AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)

AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)

Added

AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)

AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)

AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)

MEMORY

16G DDR5 5600MHz ECC UDIMM

Added

32G DDR5 5600MHz ECC UDIMM

NVMe M.2

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

*No NVMe M.2 Drives

Added

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

*No NVMe U.2/U.3 Drives

Added

NETWORK CARD

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

*No Network Card

Added

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
