3015MR-H10TNR

Please Inquire

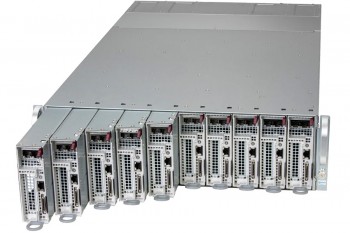

Supermicro 3U 10Nodes 40Bays Single Processor AMD Rackmount MicroCloud Server

Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
Support for up to 1 single-width PCIe GPU accelerator cards
Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login

Storage configuration notice:
External:
(2+2)x 2.5" Fixed Drive per Node
M.2:
1x M.2 per Node

SKU	AS-3015MR-H8TNR

Processor

(per Node)
CPU:
Single Socket AM5 (LGA-1718)
AMD EPYC™ 4005/4004 Series Processor

Core Count:
Up to 16C/32T; Up to 128MB Cache

Note:
Supports 65W - 170W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details.

GPU (per Node)
Max GPU Count:
Up to 1 single-width GPU

Supported GPU:
NVIDIA PCIe: L4, A2

Memory

(per Node)
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V

Chassis

3U Rackmount Chassis

Dimensions

Height:
5.16" (131 mm)
Width:
17.68" (449 mm)
Depth:
30.51" (775 mm)

Front Panel

Buttons:
Power On/Off

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM

Onboard Devices

(per Node)
NVMe:
NVMe; (Native)

Chipset:
System on Chip

Network Connectivity:
No NIC option supported

HDD Drive Bays

(per Node)
Drive Bays Configuration:
Default: Total 4 bays
2 internal fixed 2.5" PCIe 5.0 NVMe drive bays
2 internal fixed 2.5" SATA drive bays

M.2:
1 M.2 NVMe slot (M-key 2280/22110)

Expansion Slots

(per Node)
PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x16 LP slot
1 PCIe 5.0 x4 MicroLP slot

Power Supply

4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 203 mm

Input:
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)

+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)

12V SB:
Max: 3.5A / Min: 0A
Max: 3.5A

Output Type:
Backplanes (gold finger)

Input Output

(per Node)
USB:
2 USB 2.0 ports

Video:
1 port

TPM:
1 TPM Onboard/port 80

Cooling

Fans:
5 Heavy Duty 8cm Fan(s)

Air Shroud:
10 Air Shrouds

Operating Environment

ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)

Details

Management

Software:

SuperCloud Composer®

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations:

Power-on mode for AC power recovery

ACPI 6.0 Power Management

Security

Hardware:

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features:

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

Temperature:

Monitoring for CPU and chassis environment

CPU:

Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.

3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V

FAN

Fan:

speed control, Dual Cooling Zone
