EB202-CP

$4,123.00

ADD TO CART

OVERVIEW

AIC 2U 8Bays Single AMD Processor Rackmount Server

Supports up to 2 GPU cards
Supports Gen5 E1.S, E3.S (2 types of EDSFF) and Gen4 U.2 form factor as open bay design
Supports 4th Gen AMD EPYC™ Processors (Codename: Genoa)
Short-depth design for space-critical applications
4 PSU options: 1600W 1+1, 1200W 1+1, single PSU and DC input (1200W)
Full drive removal with one lever
Easy maintain riser PCIe cards

Storage configuration notice:

External:
8x E1.S or 8x E3.S or 4x U.2

Internal:
2x M.2

SPECIFICATIONS

SKU

EB202-CP

Processor

Processor Support :
4th Gen AMD EPYC™ Processors (Codename: Genoa)
CPU Interconnection: Support CPU TDP up to 360W
Please contact Technical Support for more info/details about optimized CPUs and specialized system

Socket Type:
SP5

Memory

Supports total up to 4TB
DDR5 4800 MHz
Total 8 memory slots

Chassis

2U Rackmount Chassis

Dimensions

(W x D x H)
mm：
438 x 558.8 x 87.2
inches：
17 x 22 x 3.4

Front Panel

Power switch
Reset button
ID button
2 x USB 2.0

Bios	BIOS Type: AMI / SPI (Serial Peripheral Interface) FLASH interface BIOS Features: ACPI PXE IPMI KCS interface SMBIOS Serial console redirection SR-IOV CXL Secure Boot TPM PCIe Hotplug

Onboard Devices

IPMI:
IPMI 2.0 compatible BMC with iKVM support / AST2600 (eSPI)

Network Controllers:
Broadcom BCM5720 for BMC shared NIC management and Data transfer
Realtek RTL8211F GbE for BMC dedicate management port (NCSI shared NIC - reserved BCM5720)

Graphics:
1920X1200 32bpp@60Hz

HDD Drive Bays

External:
Options:
E1.S 8-bay (9.5mm)
E3.S 8-bay (7.5mm)
U.2 4-bay (2.5")

Internal:
2 x NGFF (M.2) M-Key (2280/22110) support PCIe Gen5

Backplane (Options)
1 x 8-port E1.S (9.5mm)/E3.S (7.5mm) backplane
2 x 2-port U.2 (2.5”) backplane

Expansion Slots

1 x PCIe Gen5 X16 slot (HHHL)
2 x PCIe Gen5 X8 slots (FHHL)
2 x PCIe Gen5 X16 slot double deck (FHFL)
1 x OCP 3.0 Mezz. PCIe Gen5 X16

Power Supply

4 PSU options:
Edge applications – redundant/single (1600W)
Edge applications – 1200W 1+1
Training simulation – single PSU (1600W or 1200W)
Edge applications and vehicle – DC input (1200W)

Input Output

Rear I/O
LAN:
1x RJ45 for Dedicated BMC management

USB:
2x USB 3.0 Type-A connectors

Serial Port:
1x COM (for audio jack)

Display:
1x Mini display port

ID:
1x ID LED

Cooling

Low noise/low power fans, 4 x 6056 fans, supports fan redundancy, 2 x 4028 fans in back of EDSFF drive backplane

Operating Environment

Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
Storage operating humidity : 5%~95% non-condensing

Details

LEDs

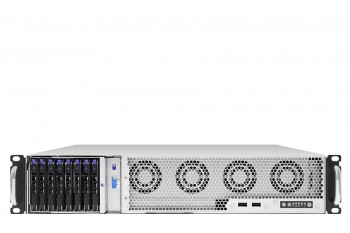

Front of System
Front panel:
Power status, HDD status, Lan LED, BMC Alert LED, ID LED

SSD status:
Green light : running
Flashing green light : reading
Amber light : no function, customize
Blue light : no function, customize

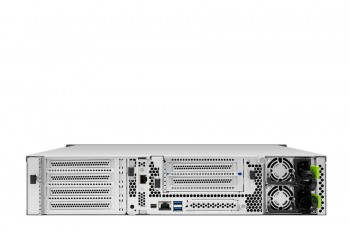

Back of System
PSU:
Constant bright green light: system running
Red light : power has issue
Flashing green light : has power but system does not turned on

System Management
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH Support

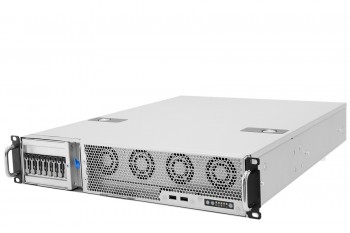

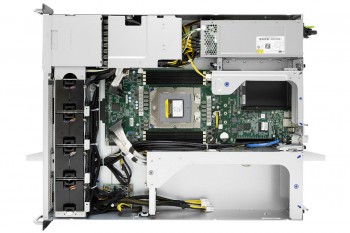

PHOTOS

EB202-CP

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

+ $8,743.00

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

+ $4,869.00

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

+ $7,952.00

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

+ $6,145.00

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

+ $2,032.00

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

+ $2,906.00

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

+ $1,834.00

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

+ $4,011.00

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

+ $3,774.00

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

+ $2,150.00

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

+ $7,458.00

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

+ $6,418.00

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

+ $6,175.00

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

+ $798.00

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

+ $2,469.00

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

+ $4,540.00

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

+ $1,210.00

MEMORY

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

+ $345.00

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

- $34.00

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

+ $62.00

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

+ $99.00

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

+ $280.00

Enterprise-Class HDD/SSD

Samsung PM1743 NVME E3.S SSD 3.84TB

+ $1,026.00

Samsung PM1743 NVME E3.S SSD 1.92TB

+ $650.00

Samsung PM1743 NVME E3.S SSD 7.68TB

+ $1,619.00

Samsung PM1743 NVME E3.S SSD 15.36TB

+ $3,202.00

Samsung PM9A3 NVME E1.S SSD 7.68TB

+ $1,293.00

*No Hard Drive

Added

NVMe M.2

WD Black SN850 M.2 G4 NVMe SSD 2TB

+ $639.00

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

+ $68.00

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

+ $142.00

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

+ $98.00

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

+ $81.00

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

+ $133.00

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

+ $55.00

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

+ $409.00

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

+ $128.00

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

+ $231.00

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

+ $426.00

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

+ $686.00

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

+ $325.00

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

+ $291.00

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

+ $242.00

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

+ $780.00

WD Black SN850 M.2 G4 NVMe SSD 1TB

+ $235.00

WD Black SN850 M.2 G4 NVMe SSD 500GB

+ $158.00

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

+ $260.00

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

+ $215.00

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

+ $286.00

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

+ $81.00

*No NVMe M.2 Drives

Added

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

+ $128.00

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

+ $112.00

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

+ $221.00

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

+ $126.00

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

+ $163.00

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

+ $829.00

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

+ $413.00

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

+ $2,501.00

NETWORK CARD

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $1,664.00

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

+ $790.00

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

+ $950.00

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

+ $689.00

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

+ $620.00

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

+ $2,200.00

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

+ $271.00

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

+ $1,279.00

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

+ $123.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

+ $363.00

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

+ $96.00

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

+ $289.00

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

+ $1,976.00

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

+ $341.00

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

+ $377.00

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

+ $610.00

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

+ $512.00

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

+ $2,145.00

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

+ $475.00

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

+ $636.00

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

+ $428.00

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

+ $462.00

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

+ $501.00

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

+ $558.00

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

+ $241.00

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

+ $99.00

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Debian Linux (No Media) (32-Bit/64-Bit)

+ $99.00

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

+ $99.00

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Microsoft Windows Server 2022 Standard 64-bit-1User

+ $799.00

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

+ $299.00

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

+ $399.00

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

+ $599.00

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

+ $899.00

3 Year Parts Replacement Warranty - Server Value Over $10000

+ $1,280.00
