J2024-08-04X

$4,326.00

AIC 2U 24Bays Dual SAS Expander JBOD

J2024-08-04X, a high-performance 2U 24-Bay 24Gb/s JBOD, perfect for enterprise storage applications. This JBOD enclosure supports 24 x 3.5” hot-swappable drives with dual expander modules for superior scalability and reliability. Featuring LSI SAS4X40 expander chips and an optimized airflow design, it ensures efficient cooling and seamless integration into compact server environments. Ideal for businesses seeking a robust and flexible storage solution.

2U with 24-bay hot-swap LFF 3.5” drive bays
4 x SAS-4 24G Mini-SAS host port per expander module
Built-in RTC module for reliable timekeeping
Less than 33” without Cable Management Arm (CMA)
Redundant 80+ Platinum and Titanium level hot-plug power supplies

SPECIFICATIONS

SKU	J2024-08-04X

Details

General
Number of Expander: Dual
Expander Chip:
LSI SAS4X40
Host/Expansion Interface:
4 x Mini-SAS HD (SFF-8674) per expander module

Drives Supported
Drive Interface :
12Gb & 6Gb SAS/SATA
Form Factor: 3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm: Yes

Hot swap & Redundancy
Drive Bays: 24 hot swap
Cooling:
4 x 60x56mm easy swap fans
Power Supply (options):
800W 1+1 hot swap redundant 80+ Platinum/ Titanium
Power Entry: Dual AC Inlet
Expander Modules: Dual expanders (Optional)

Electrical & Environment
Universal A/C Input:
100-127V~, 50/60Hz, 10A
200-240V~, 50/60Hz, 5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%
Non-operating Environment:
Operating altitude condition : 0 ~ 10K ft
Storage temperature : -20° ~ 60°C
System relative humidity : 10% - 90%

Physical Specification
Dimensions (W x D x H):
mm: 438 x 838 x 88
inches: 17.24 x 33 x 3.5
Mounting:
Standard: 36’’ slide rail

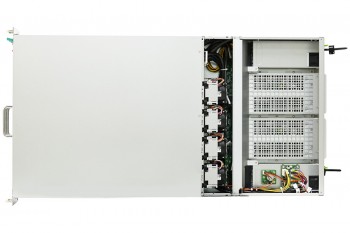

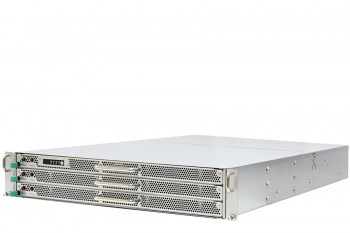

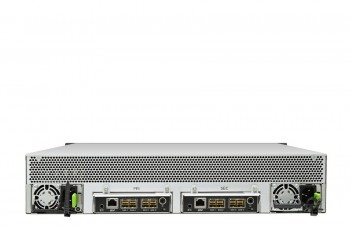

PHOTOS

J2024-08-04X

MY CONFIGURATION

Enterprise-Class HDD/SSD

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

+ $66.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

+ $80.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

+ $40.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

+ $122.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

+ $221.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

+ $321.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

+ $521.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

- $51.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

+ $11.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

- $10.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

+ $133.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

+ $1,062.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

+ $151.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

+ $191.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

+ $268.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

+ $201.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

+ $821.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

+ $1,092.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

+ $721.00

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

+ $1,192.00

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

+ $1,092.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

+ $161.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

+ $70.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

+ $201.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

+ $30.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

+ $25.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

+ $31.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

+ $101.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

- $38.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

+ $108.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

- $24.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

+ $258.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

+ $183.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

+ $301.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

+ $112.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

+ $691.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

+ $501.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

+ $801.00

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

+ $922.00

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

+ $922.00
