G293-Z22-AAP1

Please Inquire

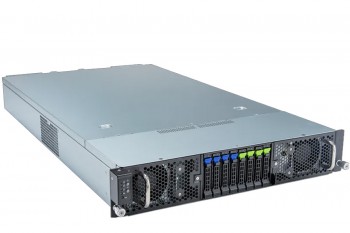

Gigabyte 2U 8Bays Single AMD Processor up to 8GPU Rackmount Server

Supports up to 8 x Dual slot Gen5 GPUs
Single AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 12 x DIMMs
Dual ROM Architecture
2x 10Gb/s LAN ports via Broadcom® BCM57416
4x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
4x 2.5" SATA/SAS hot-swap bays
2x M.2 slots with PCIe Gen5 x4 interface
8x FHFL PCIe Gen5 x16 slots for GPUs
2x LP PCIe Gen5 x16 slots for add-in cards
Dual 3000W 80 PLUS Titanium redundant power supply

Storage configuration notice:
External:
8x 2.5" Hot-swap Drive Bays
Internal:
2x M.2

SKU	G293-Z22-AAP1

Processor

CPU:
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 300W

The EPYC 9005 series processors with a cTDP of 300W are supported only under ambient temperatures of 30°C.

Socket:
1x LGA 6096
Socket SP5

Memory

12 x DIMM slots
DDR5 memory supported
12-Channel memory per processor

AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

Chassis

2U Rackmount Chassis

Onboard Devices

LAN
Rear:
2x 10Gb/s LAN (1 x Broadcom® BCM57416)
Support NCSI function

1x 10/100/1000 Mbps Management LAN

Video
Integrated in ASPEED® AST2600
1x VGA port

HDD Drive Bays

Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS
4 x 2.5" SATA/SAS

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4

SAS card is required to support SAS drives.

Expansion Slots

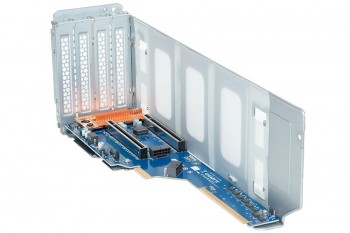

Riser Card CRSG622 x 2:
4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG623 x 2:
4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
2 x LP x16 (Gen5 x16), from CPU

Note:
Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.

The system is only validated with a uniform GPU model.

Power Supply

Dual 3000W 80 PLUS Titanium redundant power supply

AC Input:
100-127V~/ 14.5A, 50/60Hz
200-220V~/ 16A, 50/60Hz
220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
240Vdc/ 16A

DC Output:
Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A

Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A

Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

The system power supply requires C19 power cord.

Input Output

Front I/O
1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED

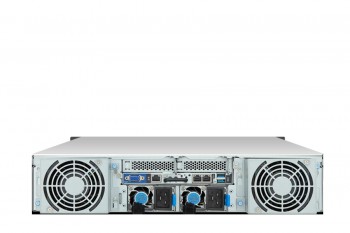

Rear I/O
2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x RJ45 ports
1x MLAN port
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED

Cooling

System Fans

8 x 80x80x38mm (18,300rpm)

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details

System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
