SYS-522GA-NRT

Please Inquire

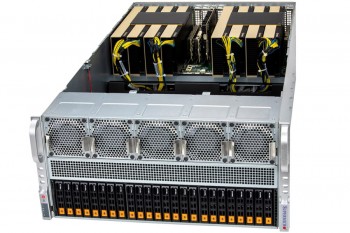

Supermico 5U 24Bays Dual Processor up to 10GPU Rackmount Server

Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP
Support for up to 10x PCIe GPU accelerator cards
24 DIMM slots, ECC RDIMM / MRDIMM DDR5
Up to 13 PCIe 5.0 x16 FHFL slots
24x U.2/U.3 NVMe and 2x M.2 NVMe
Flexible networking with AIOM slots
High Performance Computing, VDI, AI/Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design & Visualization, 3D Rendering, Diagnostic Imaging

Storage configuration notice:
External:
24x 2.5" Hot-swap Drive Bays
Internal:
2x M.2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 16 or 24 DIMMs, 2 GPUs and 1 storage Device)

SPECIFICATIONS

SKU	SYS-522GA-NRT

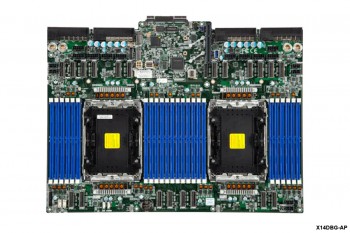

Processor

CPU:
Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores

Core Count:
Up to 128C/256T; Up to 504MB Cache per CPU

Note:
Supports up to 500W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs

Supported GPU:
NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S, L4
View GPU Options

CPU-GPU Interconnect:
PCIe 5.0 x16 Switch Dual-Root

GPU-GPU Interconnect:
NVIDIA® NVLink® Bridge (optional)

Certification:
Nvidia Certified

Memory

Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Memory Voltage:
1.1V

Chassis

5U Rackmount Chassis

Dimensions

Height:
8.75" (222.5 mm)
Width:
17.2" (438 mm)
Depth:
31" (786.1 mm)

Front Panel

LED:
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED

Buttons:
Power On/Off button
System Reset button

Bios	BIOS Type: AMI 32MB SPI Flash EEPROM

Onboard Devices

Chipset:
System on Chip

Network Connectivity:
2 RJ45 10GbE with Intel® X710-AT2

HDD Drive Bays

Drive Bays Configuration

Default: Total 24 bays

24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays

M.2:

2 M.2 NVMe slots (M-key)

Expansion Slots

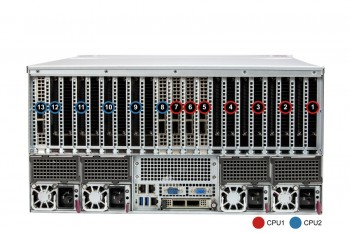

PCI-Express (PCIe) Configuration

Default

13 PCIe 5.0 x16 FHFL slots

M.2:

2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)

Power Supply

6x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 203 mm

Input:
2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)

+12V:
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)

12V SB:
Max: 3.5A / Min: 0A
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

Input Output

LAN:
2 RJ45 10 GbE LAN ports (Intel® I350)

USB:
2 USB 3.0 Type-A ports(Rear)

Video:
1 VGA port

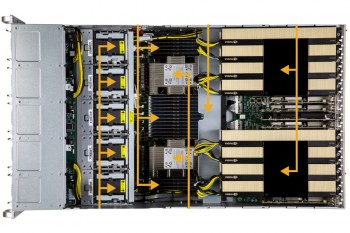

Cooling

Fans:
10 heavy duty fans with optimal fan speed control

Air Shroud:
1 Air Shroud

Operating Environment

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Details

Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!

Power configurations:
Power-on mode for AC power recovery
ACPI Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator

FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
