AS -5126GS-TNRT2

Please Inquire

Supermicro 5U 10Bays Dual AMD Processor up to 8GPU Rackmount Server

Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
(Please check System Memory Section for detail)
Total of 13 PCIe 5.0 x16 FHFL slots
Supports up to 10 double-width PCIe GPU accelerator cards
(8 double-width GPU is recommended, other 5 slots reserved for Networking scale out)
Flexible networking with AIOM support
Dual front hot-swap 2.5" SATA + 8 front hot-swap 2.5" NVMe drive bays
Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies
(Power supply redundancy based on configuration and application load)
AI / Deep Learning, 3D Rendering Farm, Visualization / Simulation, High Performance Computing, Multimedia/Digital Content creation

Storage configuration notice:
External:
8x 2.5" Hot-swap NVMe Drives
2x 2.5" Hot-swap SATA Drives
M.2:
1x M.2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 GPU, 2 DIMMs and 1 storage Device)

SPECIFICATIONS

SKU	AS-5126GS-TNRT2

Processor

CPU:
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors

Core Count:
Up to 192C/384T

Note:
Supports up to 500W TDP CPUs

GPU
Max GPU Count:
Up to 10 double-width GPUs

Supported GPU:
NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S

CPU-GPU Interconnect:
PCIe 5.0 x16 Switch Dual-Root

GPU-GPU Interconnect:
NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)

Certification:
Nvidia Certified

Memory

Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

Memory Voltage:
1.1V

Chassis

5U Rackmount Chassis

Dimensions

Height:
8.75" (222.5 mm)
Width:
17.2" (438 mm)
Depth:
31" (786.1 mm)

Bios	BIOS Type: AMI 64MB SPI Flash EEPROM

Onboard Devices

SATA:
SATA (6Gbps)

Chipset:
System on Chip

Network Connectivity:
2 RJ45 10GbE

HDD Drive Bays

Drive Bays Configuration:
Default: Total 10 bays
2 front hot-swap 2.5" SATA drive bays
8 front hot-swap 2.5" NVMe drive bays

M.2:
1 M.2 PCIe 3.0 x4 NVMe slot (M-key)

Expansion Slots

Default
13 PCIe 5.0 x16 FHFL slots
Option A
11 PCIe 5.0 x16 FHFL slots

Power Supply

6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 203 mm

Input:
2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)

+12V:
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)

12V SB:
Max: 3.5A / Min: 0A
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

Input Output

LAN:
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
USB:
2 ports(rear)
Video:
1 VGA port

Cooling

Fans:
10 heavy duty fans with optimal fan speed control

Operating Environment

Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Details

Management

Software:

SuperCloud Composer®

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations:

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware:

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features:

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU:

Monitors for CPU Cores, Chipset Voltages, Memory

7 +1 Phase-switching voltage regulator

FAN:

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature:

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

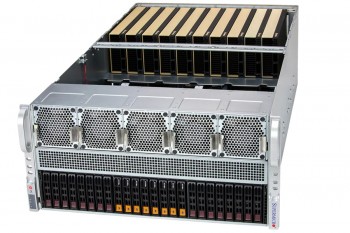

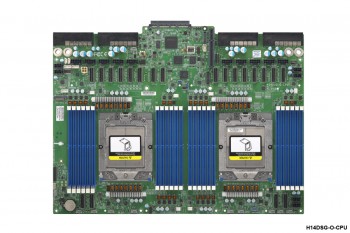

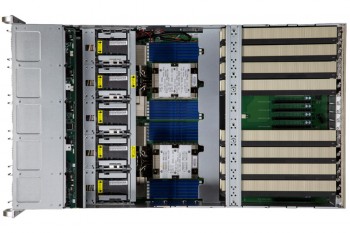

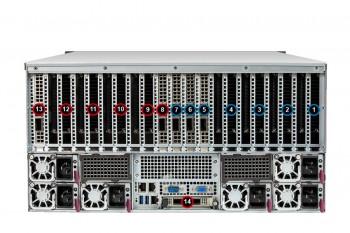

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 5th Gen Processor 9745 (2.4GHz,400W)

AMD EPYC 5th Gen Processor 9845 (2.1GHz,390W)

AMD EPYC 5th Gen Processor 9965 (2.25GHz,500W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 5th Gen Processor 9825 (2.2GHz,390W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9684X (3.42GHz,400W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 5th Gen Processor 9475F (3.65GHz,400W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9175F (4.2GHz,320W)

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9275F (4.1GHz,320W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9555 (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9375F (3.8GHz,320W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

AMD EPYC 5th Gen Processor 9555P (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9565 (3.15GHz,384W)

AMD EPYC 5th Gen Processor 9575F (3.3GHz,400W)

AMD EPYC 5th Gen Processor 9645 (2.3GHz,320W)

AMD EPYC 5th Gen Processor 9655P (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9655 (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9755 (2.7GHz,500W)

MEMORY

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

NVMe M.2

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

*No NVMe M.2 Drives

Added

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

NVMe U.2/U.3

Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB

Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB

*No NVMe U.2/U.3 Drives

Added

Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB

Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB

Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

GPU/Coprocessor

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA L40S 48GB GDDR6 GPU Card

Added

NVIDIA H200 141GB HBM3e GPU Card

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA H100 80GB HBM2e GPU Card

NVIDIA L40 48GB GDDR6 GPU Card

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE

4772

0.0000
