F2026-01-G5

$11,047.00

ADD TO CART

OVERVIEW

AIC 2U 26Bays JBOF

2U high-availability support 26 x hot swap Gen5 U.2 dual port drives
Broadcom 89144 PCIe Gen5 switch base bridge board
Supports dual controllers up to 8 x PCIe Gen5 x16 slots
Designed for low latency and high performance applications
PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
Fully redundant, fault-tolerant system supporting hot swap design for easy maintence and management
Intelligent Enclosure Managment with IPMI 2.0 compliance
Tool-less tray design

Storage configuration notice:
External:
26x 2.5" Hot-swap Drive Bays

SPECIFICATIONS

SKU	F2026-01-G5

Details

General
Number of Controller:
2

PCIe Switch:
Broadcom PEX 89144

Host/Expansion Interface:
4 x PCIe Gen5 x16 per canister
8 x PCIe Gen5 x16 per system
Supports up to 4 DPUs

Drives Supported
Drive Interface:
SFF-8639
Form Factor:
U.2

Administration / Management
Admin/Firmware Upgrade:
BMC with IPMI 2.0 compliance
LED Indicators:
Yes

Hot swap & Redundancy
Disk Drive:
26
Cooling:
7 x 4056 PWM fans per canister
Total 14 fans

Power Supply:
3200W 1+1 hot swap redundant 80+ Titanium

Power Entry:
Dual AC Inlet

Controller:
Dual

Electrical & Environment
Universal A/C Input:
100~240V AC Full Range

Operating Environment:
Temperature 0ºC to 35ºC
Relative humidity 20% to 80%

Non-operating Environment:
Storage temperature : -20° to 60°C
System relative humidity : 10% to 90%

Dimensions (W x D x H):
mm:
438 x 750 x 88
inches:
17.2 x 29.5 x 3.5

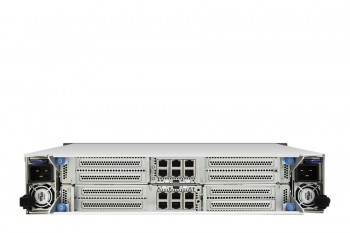

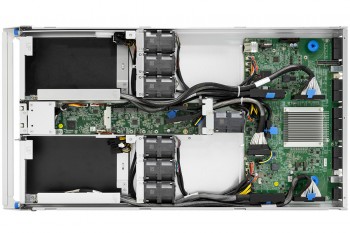

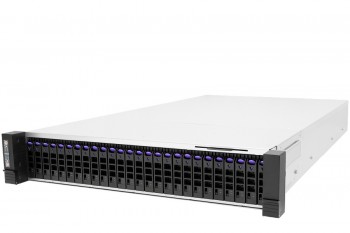

PHOTOS

F2026-01-G5
