RC4U60036

Please Inquire

OVERVIEW

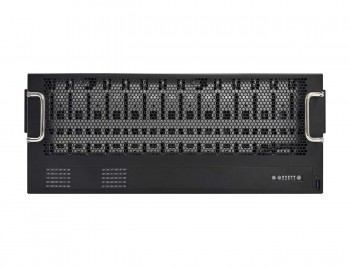

YM 4U 60 Bays single Node Server Storage

4U high-density storage server supports 60 hot-swap 3.5” SAS drive bays
Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
Supports DDR5 RDIMM and PCIe Gen5 extensions
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

SPECIFICATIONS

SKU

RC4U60036

Processor

Processor Support:
Dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
Dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)

Please contact our Technical Support for more info/details about optimized CPUs and specialized system.
CPU Interconnection: 16/20GTs

Socket Type:

Socket E1 (LGA-4677-X)

Memory

DDR5 5600/4800MHz RDIMM (1DPC)
Total 16 memory slots; 8 slots per CPU (1DPC)
Supports up to 4TB (3DS RDIMM)

Chassis

4U Rackmount Chassis

Dimensions

mm: 434 x 853 x 176
inches: 17.1 x 33.6 x 7

weight:

90KG
200lbs

Front Panel

System power on/off, System reset, 1x USB3.0 Type-A

LEDs:
Power status, System alert, LAN activity, Drive activity, System ID

HDD Drive Bays

Drive Bays
External:
60 x 3.5” hot swap (SATA/SAS)
8 x 2.5” hot swap (6 NVMe Gen4 + 2 SATA )

Internal:
2 x M.2/M-Key/2280 (PCIe Gen4)

Backplane
Top-load:
2 x 30-port 12G SAS BP with 40-PHY expander
Rear:
8-bay Gen5 Tri-mode config as 6 NVMe + 2 SATA

Expansion Slots

5x PCIe x16 slots (FHHL)
1x PCIe x8 slot (FHHL)

Details

Country of Original:
CN

ECCN:
5A992.c

HS Codes:
8471709000

US Schedule B HTS Code:
8471709000

GB HS Codes:
8471709000
