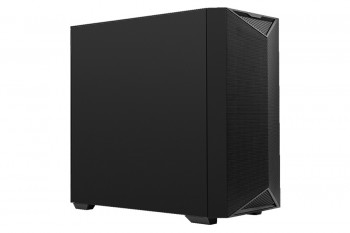

MSI NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip AI XpertStation
Tower (NVIDIA DGX Station™)

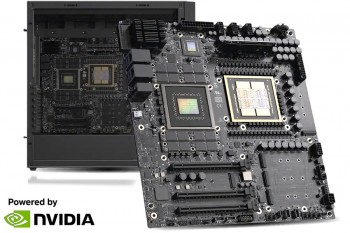

Single NVIDIA Grace™ CPU Superchip with 72 Arm® Neoverse V2 cores
Single NVIDIA Blackwell Ultra GPU
748 GB of Coherent Memory
2x 2280/22110 PCIe 5.0 x4 NVMe M.2 ports
2x 2280/22110 PCIe 6.0 x4 NVMe M.2 ports
Max 3x PCIe 5.0 expansion slots, supporting up to 1x RTX PRO 6000 Blackwell Workstation or RTX PRO 6000 Blackwell Max-Q Workstation or RTX PRO 4000 Blackwell or RTX PRO 2000 Blackwell PCIe GPU card
2x 400G QSFP112 ports with NVIDIA ConnectX-8 SuperNICs
1x 1000Base-T Dedicated Server Management Port with:
ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
Hardware Root of Trust & TPM 2.0 Supported
Application: AI Development, Data Science, AI Inference, Personal Cloud
1x PCIe 5.0 x16 FHFL double wide slot
2x PCIe 5.0 x16 FHFL single wide slots with x8 signals
1x PCIe 2.0 x1 2230 M.2 for WiFi/BT
Power Supply
1x 1600W ATX 80 PLUS Titanium
Dimension (WxHxL): 150 x 86 x 210 mm
Rating:
AC Input: 100-114Vac, 15A, 47-63Hz
Output: Max 1300W
AC Input: 115-240Vac, 15-8A, 47-63Hz
Output: Max 1600W
C19 power cords are required and will be offered as optional accessories.
Input Output

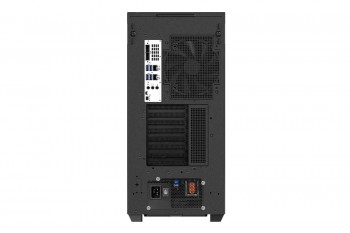

Rear I/O:
1x 1000Base-T Dedicated Server Management Port
2x QSFP112 ports
1x 10GBase-T Ethernet port
4x USB3.1 Type A ports
1x Mini DP port
1x 2 ch audio port
1x Micro USB COM port
Cooling
1x Liquid cooling module for max. 1400W CPU+GPU
6x 12025 System Fans
Operating Environment
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Operating humidity: 10% to 80% (non-condensing)
Non-operating Temperature: 5°C ~ 40°C (41°F to 104°F)
Non-operating Relative Humidity: 10% to 80% (non-condensing)
Details
Security:
Chassis Intrusion
On-board TPM2.0
Hardware Root of Trust - Microchip CEC1736 supported
Server Management:
(1) 1000Base-T Dedicated Server Management Port
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
eMMC for local BMC storage media
Certification:
CE, FCC (Class A)
Optional parts
Gaphics card:
RTX PRO 6000 Blackwell Workstation Edition
RTX PRO 6000 Blackwell Max-Q Workstation Edition
RTX PRO 4000 Blackwell SFF Edition
RTX PRO 2000 Blackwell
Power cords:
C19 power cord 250V/15A(US, NEMA 6-15P): K33-3001366-I45
