B685-D80-LS1

Please Inquire

Gigabyte 6U 10 Nodes 2Bays per Node AMD Processor Blade Server

Integrated-manifold full-system DLC solution
6U 10-node front access server system
Dual AMD EPYC™ 9006 SP7 Server processors per node
16-Channel liquid-cooled DDR5 RDIMM/MRDIMM per CPU with 32 x DIMMs per node
2x liquid-cooled E3.S Gen6 NVMe bays per node
3x liquid-cooled LP PCIe Gen6 x16 slots per node
7+5 3200 W 80 PLUS Titanium redundant power supplies

Storage configuration notice:
External:
2x E3.S NVMe drive bays per node

SKU	B685-D80-LS1

Processor

CPU:
AMD EPYC™ 9006 SP7 Server processors

Dual processors per node, PPT up to 600 W

Note:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
20x LGA 7536
Socket SP7

Memory

32x DIMM slots per node
Support DDR5 RDIMM/MRDIMM
16-Channel memory per processor

RDIMM: Up to 8000 MT/s
MRDIMM: Up to 12800 MT/s

MRDIMMs are supported only on select CPU SKUs.

Chassis

6U Chassis

Dimensions

WxHxD
447mm x 262.3mm x 900mm

Onboard Devices

LAN
Front:
1x Management LAN per node

Rear (MLAN board):
2x Chassis Management LAN [1]

Note:
Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.

Video
Integrated in ASPEED® AST2700
1x Mini-DP per node

HDD Drive Bays

Front:
2x E3.S Gen6 NVMe per node, from CPU_0

Expansion Slots

2x LP x16 (Gen6 x16) per node, from CPU_0
1x LP x16 (Gen6 x16) per node, from CPU_1

Power Supply

7+5 3200 W 80 PLUS Titanium redundant power supplies

AC Input:
100-127V~, 16A, 50-60Hz
200-220V~, 16A, 50-60Hz
220-240V~, 16A, 50-60Hz

DC Input: (Only for China)
240Vdc, 16A

DC Output:
Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A

Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A

Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

Note:
The system power supply requires C19 power cord.

Input Output

Front I/O
Per node:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x MLAN port
1x Power button with LED
1x System status LED
1x ID LED

Rear I/O
MLAN board:
2x CMC ports
1x CMC status LED

Cooling

System Fans
4x 80x80x80mm

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

Note:
To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.

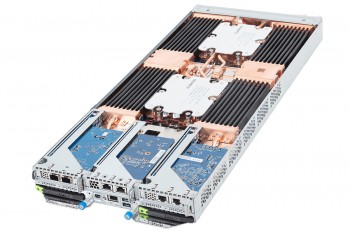

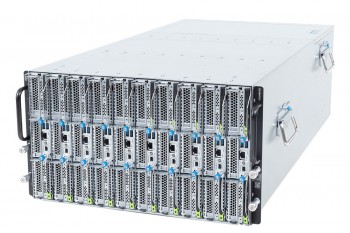

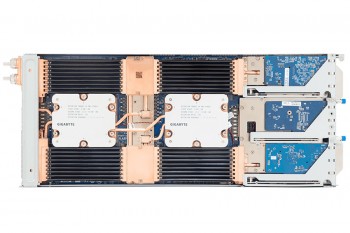

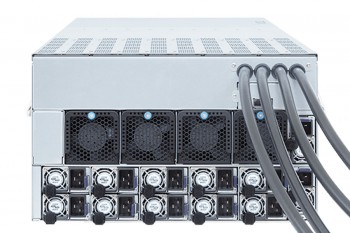

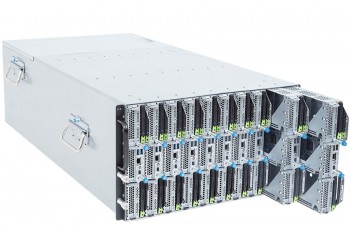

PHOTOS
