B683-Z80-AAS1

Please Inquire

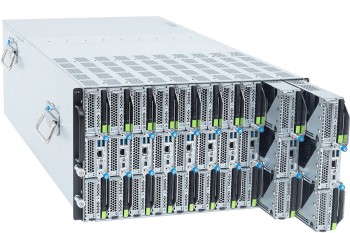

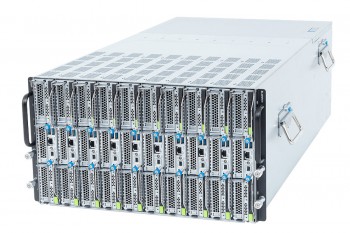

Gigabyte 6U 10Nodes 20Bays AMD Processor Blade Server

6U 10-node front access server system

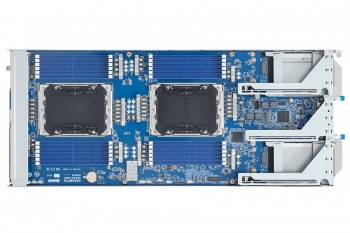

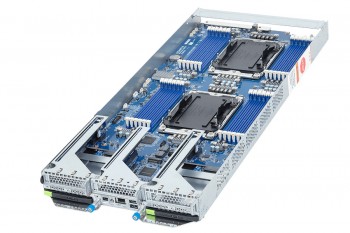

Dual AMD EPYC™ 9005/9004 Series Processors per node
12-Channel DDR5 RDIMM, 24 x DIMMs per node
2x E3.S Gen5 NVMe hot-swap bays per node
2x LP PCIe Gen5 x16 slots per node
10x 3200W 80 PLUS Titanium redundant power supplies

Storage configuration notice:
External:
2x E3.S NVMe drive bays per node

SKU	B683-Z80-AAS1

Processor

CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor per node, TDP up to 500W

Note:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
20x LGA 6096
Socket SP5

Memory

24x DIMM slots per node
Support DDR5 RDIMM
12-Channel memory per processor

AMD EPYC™ 9005:
Up to 6400 MT/s

AMD EPYC™ 9004:
Up to 4800 MT/s

Chassis

6U Chassis

Dimensions

WxHxD

447mm x 262.3mm x 900mm

Onboard Devices

LAN
Front:
1x 10/100/1000 Mbps Management LAN per node

Rear (MLAN board):
2x Chassis Management LAN

Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.

Video
Integrated in ASPEED® AST2600
1x Mini-DP per node

HDD Drive Bays

Front hot-swap:
2x E3.S Gen5 NVMe per node, from CPU_0

Expansion Slots

Riser Card x 2:
1x LP x16 (Gen5 x16) per node, from CPU_0
1x LP x16 (Gen5 x16) per node, from CPU_1

Power Supply

10 x 3200W 80 PLUS Titanium redundant power supplies

AC Input:
100-127V~/ 16A, 50-60Hz
200-220V~/ 16A, 50-60Hz
220-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
240Vdc/ 16A

DC Output:
Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A

Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A

Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

Note:
The system power supply requires C19 power cord.

Input Output

Front I/O
Per node:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x MLAN port
1x Power button with LED
1x System status LED
1x ID LED

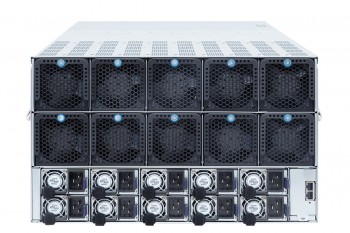

Rear I/O
MLAN board:
2x CMC ports
1x CMC status LED

Cooling

System Fans
10x 80x80x80mm

Operating Environment

Operating temperature: 10°C to 25°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

AMD EPYC 5th Gen Processor 9655 (2.6GHz,400W)

AMD EPYC 5th Gen Processor 9755 (2.7GHz,500W)

AMD EPYC 5th Gen Processor 9965 (2.25GHz,500W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 5th Gen Processor 9655P (2.6GHz,400W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9684X (3.42GHz,400W)

AMD EPYC 5th Gen Processor 9535 (2.4GHz,300W)

AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)

Added

AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)

AMD EPYC 5th Gen Processor 9175F (4.2GHz,320W)

AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)

AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)

AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)

AMD EPYC 5th Gen Processor 9365 (3.4GHz,300W)

AMD EPYC 5th Gen Processor 9355P (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9355 (3.55GHz,280W)

AMD EPYC 5th Gen Processor 9455P (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9455 (3.15GHz,300W)

AMD EPYC 5th Gen Processor 9275F (4.1GHz,320W)

AMD EPYC 5th Gen Processor 9375F (3.8GHz,320W)

AMD EPYC 5th Gen Processor 9475F (3.65GHz,400W)

AMD EPYC 5th Gen Processor 9555 (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9565 (3.15GHz,384W)

AMD EPYC 5th Gen Processor 9555P (3.2GHz,360W)

AMD EPYC 5th Gen Processor 9645 (2.3GHz,320W)

AMD EPYC 5th Gen Processor 9575F (3.3GHz,400W)

AMD EPYC 5th Gen Processor 9825 (2.2GHz,390W)

AMD EPYC 5th Gen Processor 9845 (2.1GHz,390W)

AMD EPYC 5th Gen Processor 9745 (2.4GHz,400W)

MEMORY

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM1743 NVME E3.S SSD 3.84TB

Samsung PM1743 NVME E3.S SSD 1.92TB

Added

Samsung PM1743 NVME E3.S SSD 7.68TB

Samsung PM1743 NVME E3.S SSD 15.36TB

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
