AS-2127H7-N

Please Inquire

Supermicro 2U 24Bays Dual AMD Processor Rackmount Server

Dual Socket AMD EPYC™ 9006 SP7 Series Processors up to 512 Cores
Supports up to 4 PCIe 6.0 x16 slots
Supports up to 32 DDR5 RDIMMs/MRDIMMs
Flexible networking with 1 AIOM slot (OCP 3.0 SFF/TSFF compliant)
Modular front drive bay design supporting up to 16 U.2/E3.S or 12 E1.S hot-swappable NVMe drives
Front PCIe slot available on select configurations
Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
AI Inference and Machine Learning, Cloud Computing, Enterprise Server, High Performance Computing (HPC)

To maintain quality and integrity, this product is sold only as a completely-assembled system (with 2 CPUs, Min. of 4 DIMMs, 1 AIOM/AOC NIC and 1 Storage Device).

Storage configuration notice:
External:
24x 2.5" Hot-swap Drive Bays

2x M.2

SPECIFICATIONS

SKU	AS-2127H7-N

Processor

CPU:
Dual processor(s)
AMD EPYC™ 9006 SP7 Series Processors

Core Count:
Up to 512C/1024T

Note:
Supports up to 600W TDP CPUs (Air Cooled)

Memory

Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM
Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM

Memory Voltage:
1.1V

Chassis

2U Rackmount Chassis

Dimensions

Height:
3.5" (88.9 mm)
Width:
17.26" (438.4 mm)
Depth:
32.64" (829 mm)

Bios	BIOS Type: AMI 64MB SPI Flash EEPROM BIOS Features: Plug and Play (PnP) USB Keyboard support ACPI 6.6 UEFI 2.11 SMBIOS 3.8 or later

Onboard Devices

Network Connectivity:
Via AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

HDD Drive Bays

Drive Bays Configuration

Option A: Total 24 bays

24 front hot-swap 2.5" SAS/SATA drive bays

Option B: Total 16 bays

16 front hot-swap 2.5" PCIe 6.0 NVMe drive bays

Option C: Total 16 bays

16 front hot-swap E3.S 1T PCIe 6.0 NVMe drive bays

Option D: Total 12 bays

12 front hot-swap E1.S PCIe 6.0 NVMe drive bays

(NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:

2x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; Optional, hot-swappable with RAID)

Expansion Slots

PCI-Express (PCIe) Configuration

Option A

4x PCIe 6.0 x16 FHFL double-width slots

1x PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)

Option B

3x PCIe 6.0 x16 FHFL double-width slots

1x PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)

Option C

2x PCIe 6.0 x16 FHFL double-width slots

2x PCIe 6.0 x8 FHFL slots

1x PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)

(Requires additional parts, please contact us for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

CXL Support:

Up to 4 CXL 3.1 x16 devices

Power Supply

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 265 mm

Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only)
2700W: 200-240Vac

+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
Max: 225A / Min: 0A (200Vac-240Vac)

12V SB
Max: 3.5A / Min: 0A

Output Type
Backplanes (gold finger)

Input Output

LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports (rear)
Video:
1x VGA port
TPM:
1x TPM header

Cooling

Fans:
6x counter-rotating 60x60x56mm Fan(s)

Air Shroud:
2x Air Shrouds

Operating Environment

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Details

Management
Software：
SuperCloud Composer® (SCC)
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
KVM with dedicated LAN
IPMI 2.0
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
IPMIView
Power configurations：
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism

Security
Hardware：
Trusted Platform Module (TPM) 2.0
Features：
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
Fan：
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature：
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage：
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

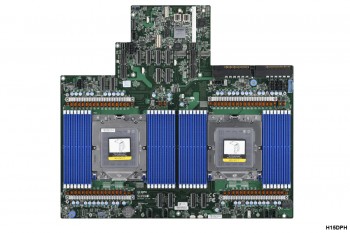

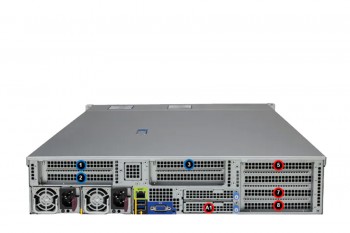

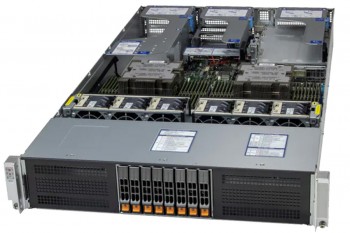

PHOTOS
