AS-1127H7-N

Please Inquire

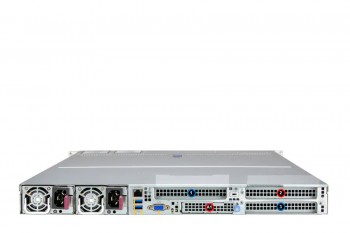

Supermicro 1U 12Bays Dual AMD Processor Rackmount Server

Dual Socket AMD EPYC™ 9006 SP7 Series Processors up to 512 Cores
Supports up to 2 PCIe 6.0 x16 FHFL slots + 1 PCIe 6.0 x16 FHHL slot
Supports up to 32 DDR5 RDIMMs/MRDIMMs
Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)
Modular front drive bay design supporting up to 12 U.2/E1.S/E3.S hot-swappable NVMe drives
Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, High Performance Computing (HPC)

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2CPUs, Min. of 4 DIMMs, 1 AIOM/AOC NIC and 1 Storage device).

Storage configuration notice:
External:
12x 2.5" Hot-swap Drive Bays

2x M.2

SPECIFICATIONS

SKU	AS-1127H7-N

Processor

CPU:
Dual processor(s)
AMD EPYC™ 9006 SP7 Series Processors

Core Count:
Up to 512C/1024T

Note:
Supports up to 600W TDP CPUs (Air Cooled)

Memory

Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM
Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM

Memory Voltage:
1.1V

Chassis

1U Rackmount Chassis

Dimensions

Height:
1.7" (43 mm)
Width:
17.2" (437 mm)
Depth:
30.66" (778.7 mm)

Front Panel

Buttons:
Power On/Off
UID button

LED:
HDD activity
LAN1 activity
LAN2 activity
Power status
System information

Bios	BIOS Type: AMI 64MB SPI Flash EEPROM BIOS Features: Plug and Play (PnP) USB Keyboard support ACPI 6.6 UEFI 2.11 SMBIOS 3.8 or later

Onboard Devices

Network Connectivity:
Via AIOM

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

HDD Drive Bays

Drive Bays Configuration

Default: Total 12 bays

12x front hot-swap 2.5" SAS*/SATA drive bays

Option A: Total 12 bays

12x front hot-swap 2.5" PCIe 6.0 NVMe drive bays

Option B: Total 12 bays

12x front hot-swap E3.S 1T PCIe 6.0 NVMe drive bays

Option C: Total 12 bays

12x front hot-swap E1.S PCIe 6.0 NVMe drive bays

(NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:

2x M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)

Expansion Slots

PCI-Express (PCIe) Configuration

Default

1x PCIe 6.0 x16 FHHL slot

2x PCIe 6.0 x16 FHFL slots

1x PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible)

CXL Support

Up to 3 CXL 3.1 x16 devices

Power Supply

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm

Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)

+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)

12V SB
Max: 3.5A / Min: 0A
Max: 3.5A

Output Type
Backplanes (gold finger)

Input Output

LAN:
1x RJ45 1 GbE Dedicated BMC LAN port
USB:
2x USB 3.0 ports (rear)
1x USB 3.0 port (front)
Video:
1x VGA port
TPM:
1x TPM header

Cooling

Fans:
Up to 8 counter-rotating 40x40x56mm Fan(s)

Air Shroud:
2 Air Shrouds

Operating Environment

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Details

Management
Software:
SuperCloud Composer® (SCC)
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
KVM with dedicated LAN
IPMI 2.0
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
IPMIView
Power configurations:
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
Fan:
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

PHOTOS

MY CONFIGURATION

CPU

AMD EPYC 9006 SP7 Series Processor 9686F (3.4GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9756 (3.15GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9556 (2.75GHz,300W)

Added

AMD EPYC 9006 SP7 Series Processor 9G76 (3.4GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9656 (3.05GHz,400W)

AMD EPYC 9006 SP7 Series Processor 9586F (3.75GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9966 (2.9GHz,600W)

AMD EPYC 9006 SP7 Series Processor 9996 (2.55GHz,600W)

AMD EPYC 9006 SP7 Series Processor 9846 (2.85GHz,500W)

MEMORY

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Enterprise-Class HDD/SSD

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM1743 NVME E3.S SSD 15.36TB

Samsung PM1743 NVME E3.S SSD 7.68TB

Samsung PM1743 NVME E3.S SSD 3.84TB

Samsung PM1743 NVME E3.S SSD 1.92TB

Samsung PM9A3 NVME E1.S SSD 7.68TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Added

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

NVMe M.2

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

*No NVMe M.2 Drives

Added

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

NETWORK CARD

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Intel NT E810-XXVDA2 Based OCPV3 Ethernet Network Adapter 25G

Broadcom BCM957414 2 x 25G/10GbE SFP28 Network Adapter OCP Model

Intel E810-XXVDA2 PCIe 4.0 X8 25Gb Dual Port SFP28 Nic Card

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
