G295-D21-AP1

Please Inquire

OVERVIEW

Gigabyte 2U 2+6 Bays Single AMD Processor AI Server

Supports up to 4x dual-slot PCIe Gen6 GPUs
Single AMD EPYC™ 9006 SP7 Server processors
12-Channel DDR5 RDIMM/MRDIMM per CPU with 12x DIMMs
2x 10 Gb/s LAN ports via Broadcom® BCM57416
2x 2.5" Gen5 NVMe hot-swap bays
Optional 4x 2.5" Gen5 NVMe/SATA/SAS-4 or 6x 2.5" SATA/SAS-4 hot-swap bays
1x M.2 slot with PCIe Gen4 x2
4x FHFL PCIe x16 slots with Gen6 x16 lanes for GPUs
1x LP PCIe x16 slot with Gen6 x16 lanes for add-in cards
1x LP PCIe x16 slot with Gen6 x8 lanes for add-in cards
2x 3000 W 80 PLUS Titanium redundant power supplies

Storage configuration notice:
External:
up to 8x hot-swap drive bays

1x M.2

SPECIFICATIONS

SKU	G295-D21-AP1

Processor

CPU
AMD EPYC™ 9006 SP7 Server processors

Single processor, PPT up to 600 W

Socket
1 x LGA 7536
Socket SP7

Memory

12x DIMM slots
Support DDR5 RDIMM/MRDIMM
12-Channel memory per processor

RDIMM: Up to 8000 MT/s
MRDIMM: Up to 12800 MT/s

MRDIMMs are supported only on select CPU SKUs.

Chassis

2U Rackmount Chassis

Dimensions

WxHxD
448mm x 87.5mm x 800mm

Onboard Devices

LAN
Rear:
2x 10 Gb/s LAN (1 x Broadcom® BCM57416)
Support NCSI function

1x Management LAN

Video
Integrated in ASPEED® AST2700
1x VGA port

HDD Drive Bays

Front hot-swap:
2x 2.5" Gen5 NVMe

Optional front hot-swap:
4x 2.5" Gen5 NVMe/SATA/SAS-4 or 6 x 2.5" SATA/SAS-4 [1]

Internal M.2:
1x M.2 (2280/22110), PCIe Gen4 x2

Note:
Storage card required to support optional drives. Only one card supported, and total drive bandwidth limited to 16i.

An alternative SKU supports 4 x native NVMe drives with LP PCIe slots. Please contact our technical support for more information.

Expansion Slots

4x FHFL x16 (Gen6 x16), for GPUs
1x LP x16 (Gen6 x16)
1x LP x16 (Gen6 x8)

Note:
GPU video output ports are not available due to mechanical limitations.

The system is only validated with a uniform GPU model.

Power Supply

2x 3000 W 80 PLUS Titanium redundant power supplies

AC Input:
100-127V~, 15.5A, 50-60Hz
200-220V~, 15.5A, 50-60Hz
220-240V~, 15.5A, 50-60Hz

DC Input: (Only for China)
240Vdc, 15.5A

DC Output:
Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A

Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A

Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

The system power supply requires C19 power cord.

Input Output

Front I/O
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED

Rear I/O
2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
1x Serial port
2x RJ45 ports
1x MLAN port
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED

Cooling

System Fans
6x 80x80x80mm

Operating Environment

Operating temperature: 10°C to 25°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

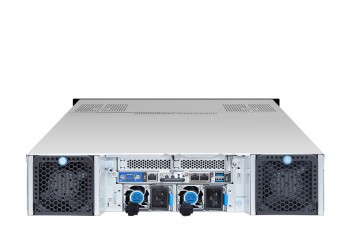

PHOTOS

G295-D21-AP1

MY CONFIGURATION

CPU

AMD EPYC 9006 SP7 Series Processor 9586F (3.75GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9G76 (3.4GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9556 (2.75GHz,300W)

Added

AMD EPYC 9006 SP7 Series Processor 9656 (3.05GHz,400W)

AMD EPYC 9006 SP7 Series Processor 9686F (3.4GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9756 (3.15GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9846 (2.85GHz,500W)

AMD EPYC 9006 SP7 Series Processor 9996 (2.55GHz,600W)

AMD EPYC 9006 SP7 Series Processor 9966 (2.9GHz,600W)

MEMORY

Samsung 96GB DDR5 6400MHz ECC RDIMM Memory

Samsung 32GB DDR5 6400MHz ECC RDIMM Memory

Added

Samsung 64GB DDR5 6400MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Added

NVMe M.2

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

*No NVMe M.2 Drives

Added

(Optional) Enterprise-Class HDD/SSD

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

*No Hard Drive

Added

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

NETWORK CARD

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel NT E810-XXVDA2 Based OCPV3 Ethernet Network Adapter 25G

Broadcom BCM957414 2 x 25G/10GbE SFP28 Network Adapter OCP Model

Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter

Intel E810-XXVDA2 PCIe 4.0 X8 25Gb Dual Port SFP28 Nic Card

Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

*No Network Card

Added

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

GPU/Coprocessor

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

*No GPU

Added

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA RTX PRO 5000 Blackwell GPU 48G

NVIDIA RTX PRO 6000 Blackwell GPU 72G

NVIDIA RTX PRO 4000 Blackwell GPU 24G

NVIDIA RTX PRO 4500 Blackwell GPU 32G

NVIDIA RTX PRO 2000 Blackwell GPU 16G

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
