Components
LSI-9261-8I
$484.00 Configured Summary
LSI-9261-8I

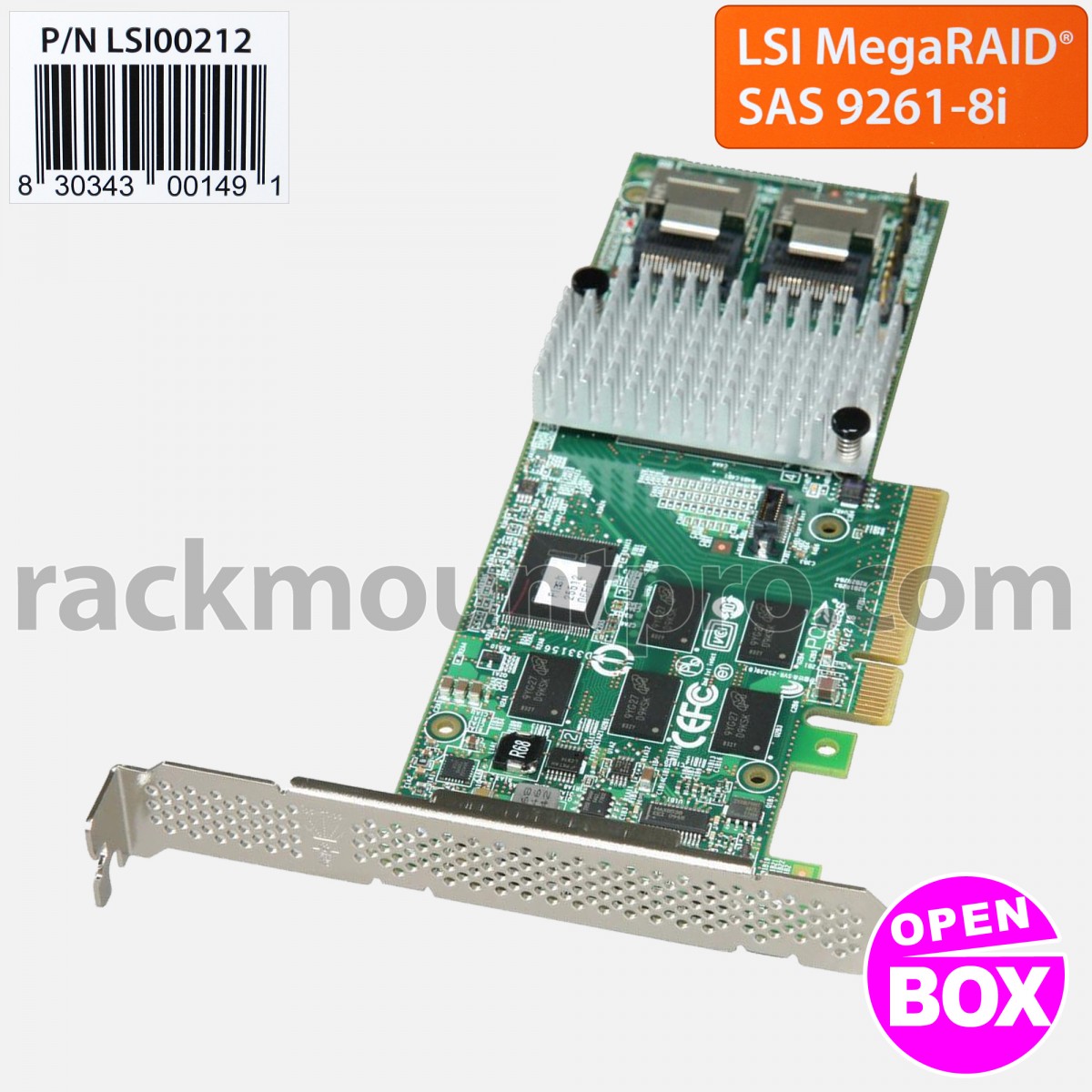

OPEN BOX LSI LSI00212 9261-8i 6Gb/s 8-Port PCIe 2.0 512MB Cache MegaRAID Controller Card

8 ports - LSI SAS 9260-8i PCI-Express Low Profile Ready SATA/SAS 6Gb/s throughput w/ 512MB DDR II Cache- 6 Gb/s Ready
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU LSI-9261-8I
Details
Brand:
LSI

Model:
SAS 9261-8i (LSI00212)

Type:
SAS / SATA

Interface:
8 Ports PCI-Express host interface

Connectors:
2 X internal Mini SAS (SFF-8087)

Transfer Rate:
6 Gb/s throughput per port

Cache Memory:
512MB DDR II Cache 800MHz

RAID:
Raid 0/ 1/ 5/ 6/ 50/ 60

Bus Interface:
PCI-Express 2.0 x8

SAS Processor:
LSISAS2108ROC

Drives Supported:
32 (Max)

Software MyStorage:
Drive monitoring, HBA management, drive topology

OS Support:
Microsoft Windows Server 2003/2008 (32-bit, 64-bit) (x86 and AMD64) XP, Win 7
Red Hat Linux RHEL 3
Novell NetWare 5.1 and 6.5
SuSE Linux/SLES
Sun SPARC Solaris 2.6 thru 2.10

MTFB:
>200,000 Hours

Bracket:
Full Height and Low-Profile

PCI Form Factor:
6.6 x 2.7 (Low-Profile)
LSI-9261-8ILSI-9261-8ILSI-9261-8ILSI-9261-8ILSI-9261-8I
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
