SMT2200RM2U
$1,196.00 Configured Summary
SMT2200RM2U

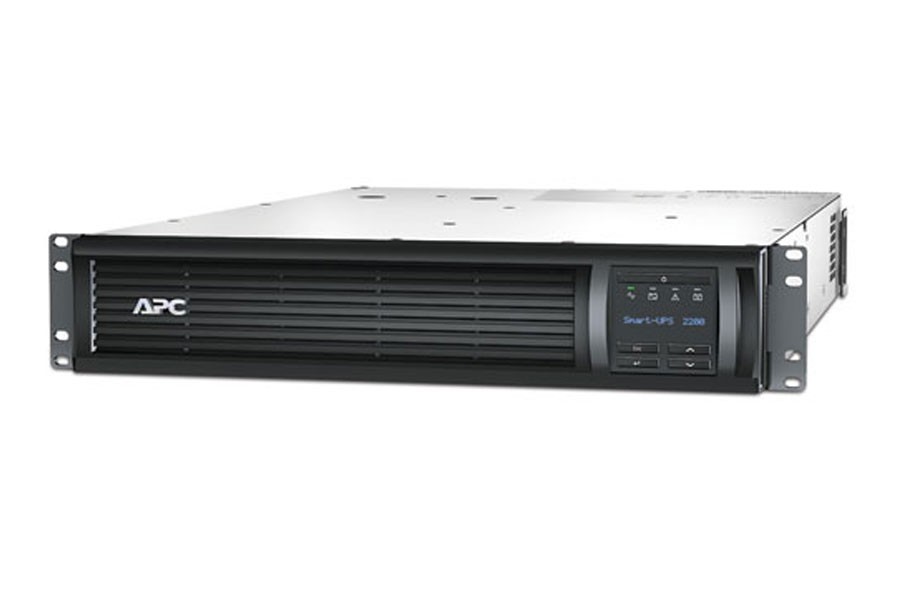

APC 2200VA 1920W RM 2U LCD 120V Smart-UPS

APC Smart-UPS,1920 Watts /1920 VA,Input 120V /Output 120V, Interface Port USB, Rack Height 2U
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SMT2200RM2U
Details
Output
Output Power Capacity:
1920 Watts / 1920 VA
Max Configurable Power:
1980 Watts / 2200 VA
Nominal Output Voltage:
120V
Output Voltage Distortion:
Less than 5%
Output Frequency (sync to mains):
50/60Hz +/- 3 Hz
Topology:
Line Interactive
Waveform Type:
Sine wave

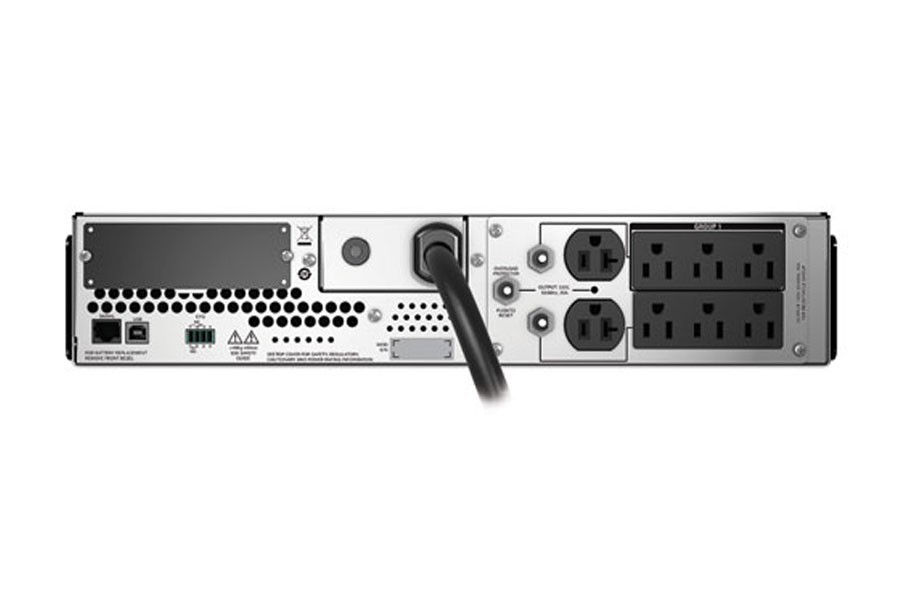

Output Connections:
6x NEMA 5-15R
2x NEMA 5-20R

Input
Nominal Input Voltage:
120V
Input Frequency:
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:
NEMA 5-20P
Cord Length:
2.44 meters
Input voltage range for main operations:
82 - 143V
Input voltage adjustable range for mains operation:
75 - 154V

Communications & Management
Interface Port(s):
USB
Available SmartSlot™ Interface Quantity:
1
Control panel:
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO):
Yes

Surge Protection and Filtering
Surge energy rating:
530 Joules

Physical
Maximum Height:
86.00 mm
Maximum Width:
480.00 mm
Maximum Depth:
683.00 mm
Rack Height:
2U

Environmental
Operating Environment:
0 - 40 °C
Operating Relative Humidity:
0 - 95%
Operating Elevation:
0-3000 meters
Storage Temperature:
-15 - 45 °C
Storage Relative Humidity:
0 - 95%
Storage Elevation:
0-15000 meters
Audible noise at 1 meter from surface of unit:
55.00 dBA
Online Thermal Dissipation:
215.00 BTU/hr

Conformance
Regulatory Approvals:
CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Standard Warranty:
3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status
RoHS:
Compliant
REACH:
Contains No SVHCs
SMT2200RM2USMT2200RM2U
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
