946ED-R2KJBOD
Please Inquire Configured Summary
946ED-R2KJBOD

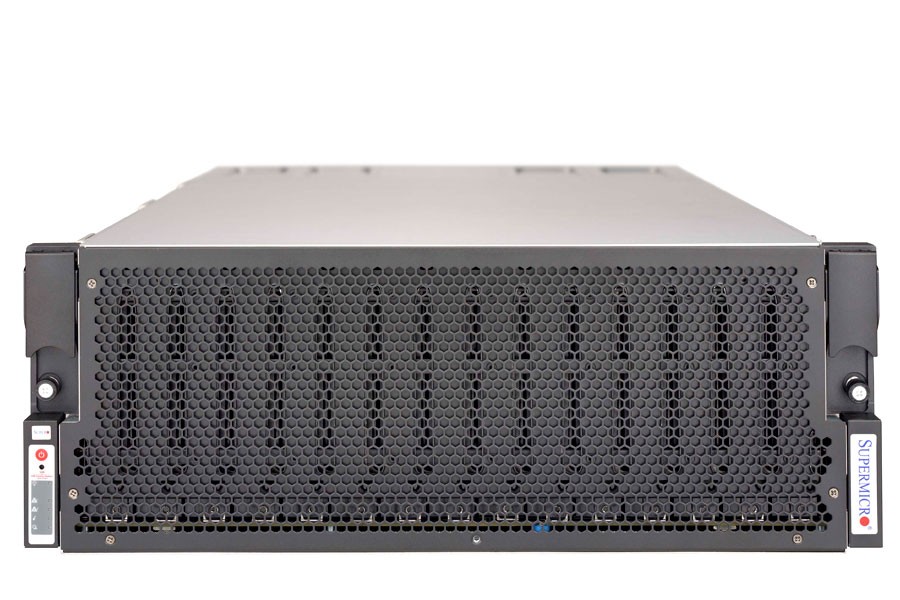

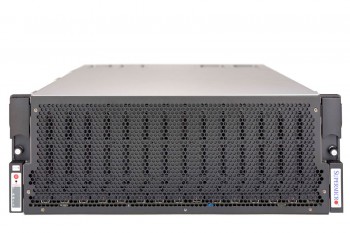

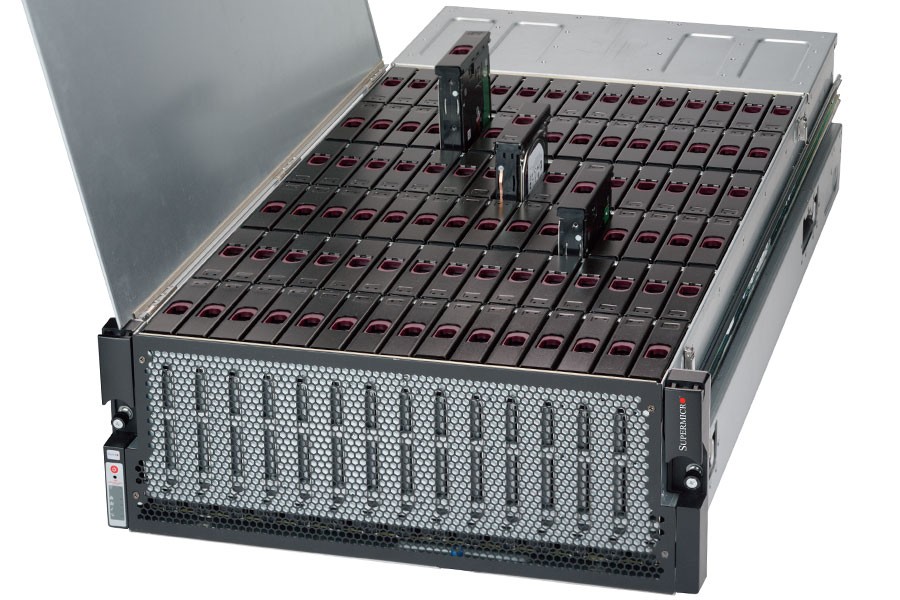

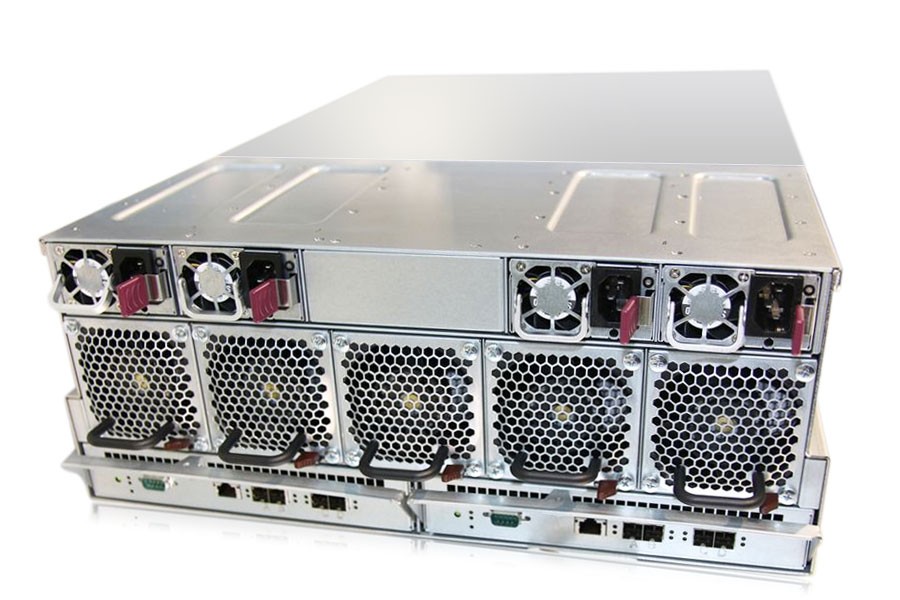

Supermincro 4U 90-bay Top-loading SAS3 12Gb/s Dual Expander JBOD

  • Extreme High Density and High Capacity Dual-path Storage Enclosure
  • Support 90 x 3.5” or 2.5” Top Loading SAS3 12Gb/s Hot-swappable HDDs
  • Hot-swappable Expanders with redundant BMC
  • Hot-swappable Tool-less Modular Design
  • High Performance up to 20+ GB/s data transfer rate

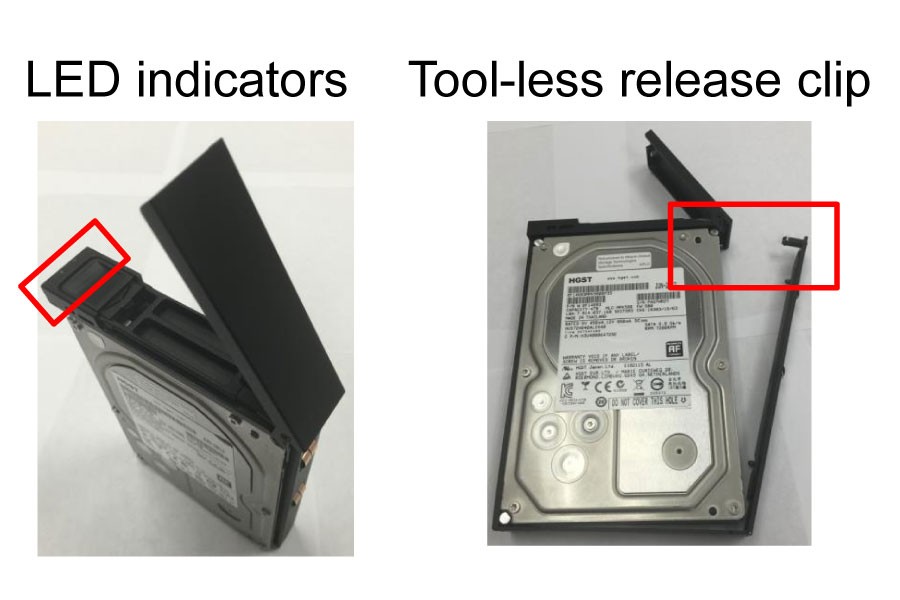

  • Tool-less HDD tray with HDD LED indicator
  • SCSI Enclosure Services (SES 3.0) compliant
  • Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
For quality assurance purpose, the product is required to be sold as complete system with HDDs fully integrated and tested. Please contact sales representative for validated HDDs.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 946ED-R2KJBOD
Chassis
4U Chassis
Dimensions
Height:
7" (178mm)
Width:
17.6" (447mm)
Depth:
35.66" (906mm)
Front Panel
Buttons:
Power On/Off button
Unit Identification (UID) button
LEDs:
2 Network Activity LEDs
Power Fail LED
System Information LED
Unit Identification (UID) LED
HDD Drive Bays
90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
SAS HDD only recommended
Power Supply

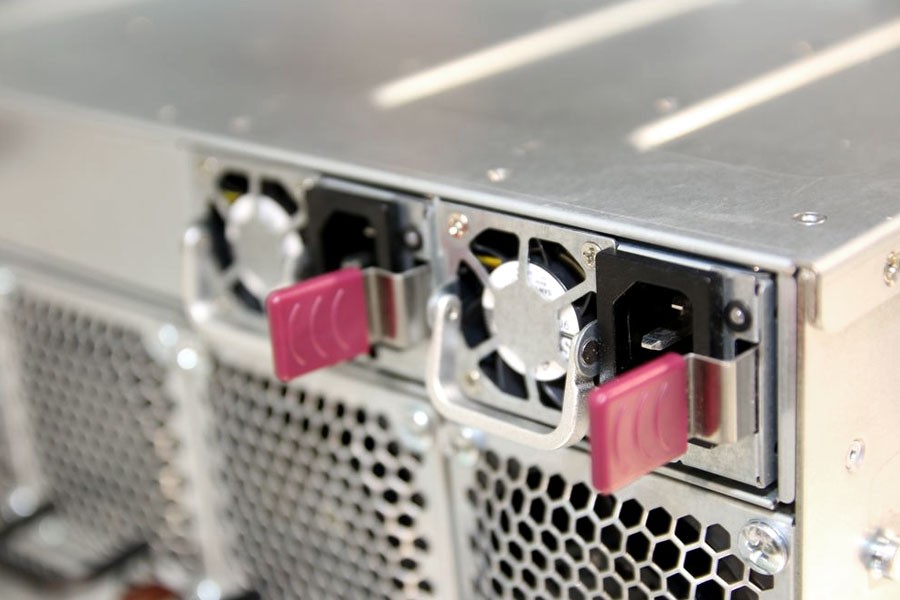

1U 1000W Redundant Single Output Power Supply Titanium Level
AC Input:
100-127 V, 50-60 Hz
200-240 V, 50-60 Hz
+12V:
Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)
12V SB:
Max: 2.1A
Certification:
80+ Titanium Level

Regulatory (Power Supply)
Power Supply Safety / EMC:
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
Cooling
5x 80mm heavy duty fans with PWM fan speed control
Operating Environment
Operating Temperature Range:
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range:
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range:
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range:
5% - 95% (non-condensing)
Details
Expander Module

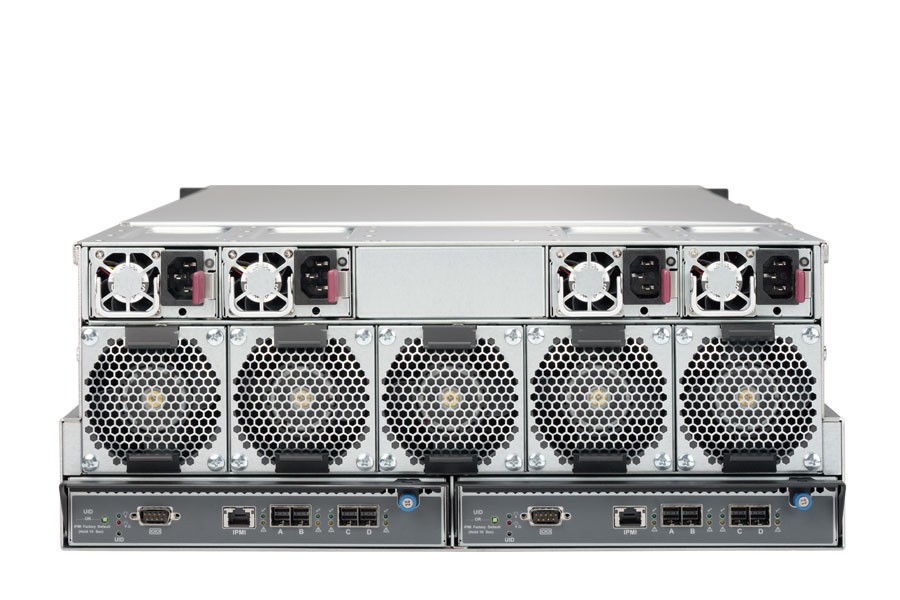

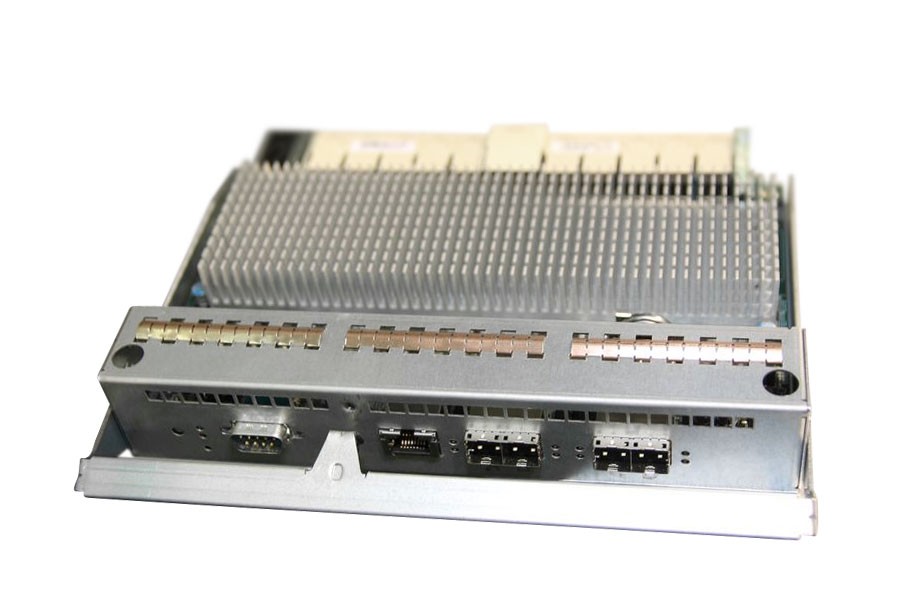

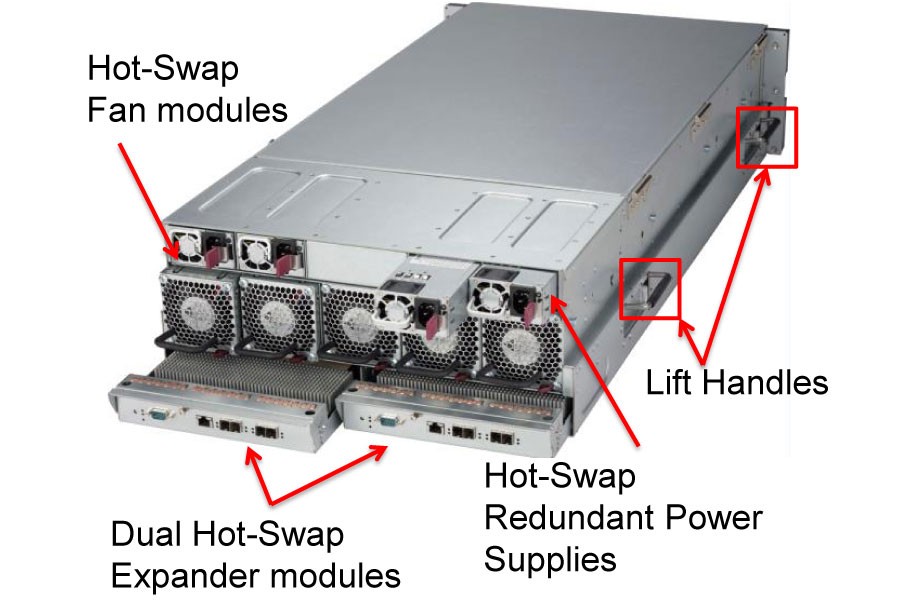

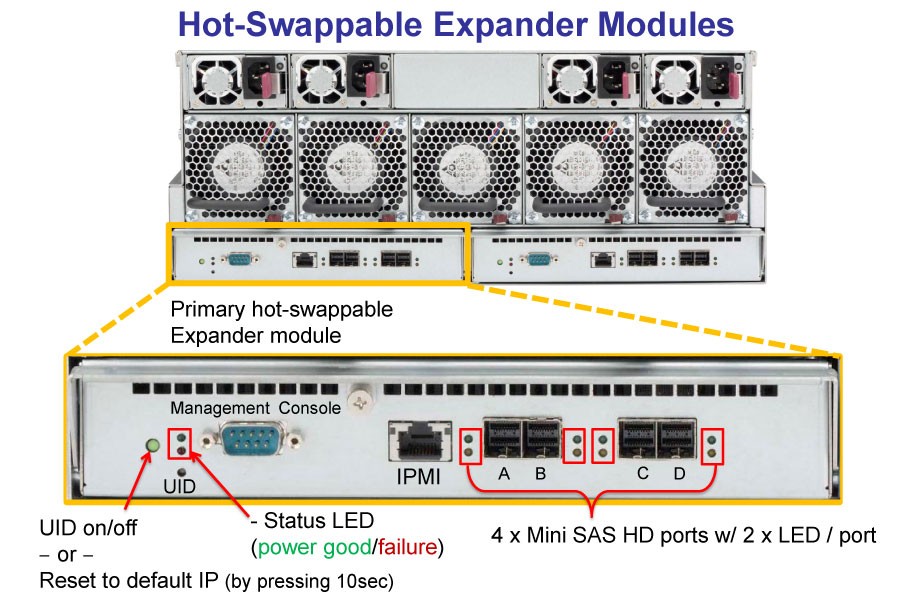

Dual hot-swappable SAS3 expander module
946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD946ED-R2KJBOD
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
File Description Date Type Size Download
946ED-R2KJBOD Datasheet 05-01-15 PDF 7,735.99 KB
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SAS 12Gb/s 7200RPM 2TB
Added
3.5" SAS 12Gb/s 7200RPM 4TB
3.5" SAS 12Gb/s 7200RPM 6TB
3.5" SAS 12Gb/s 7200RPM 8TB
2.5" SAS 12Gb/s 10000RPM 900GB
2.5" SAS 12Gb/s 10000RPM 1.2TB
2.5" SAS 12Gb/s 10000RPM 1.8TB
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
