T21P-4U-78
$3,900.00 Configured Summary
T21P-4U-78

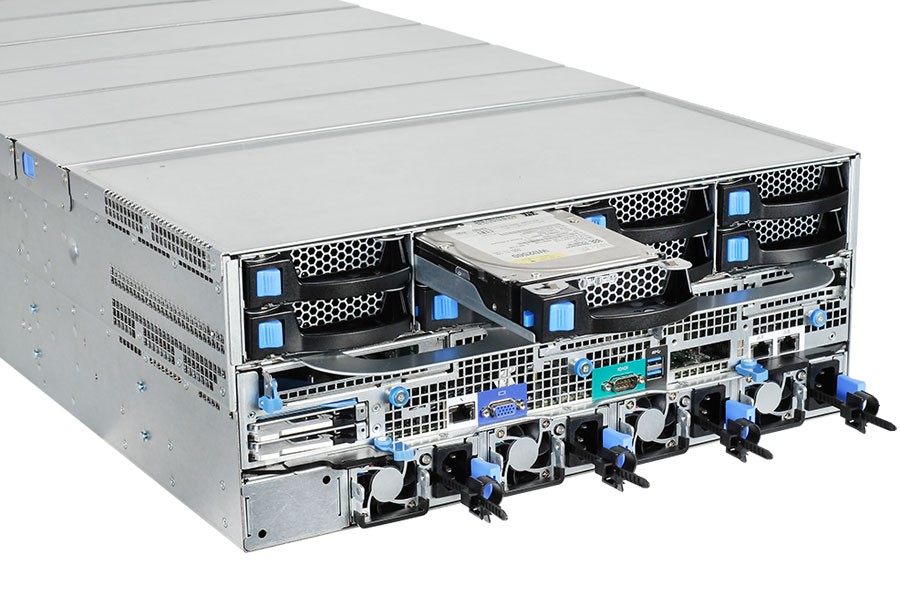

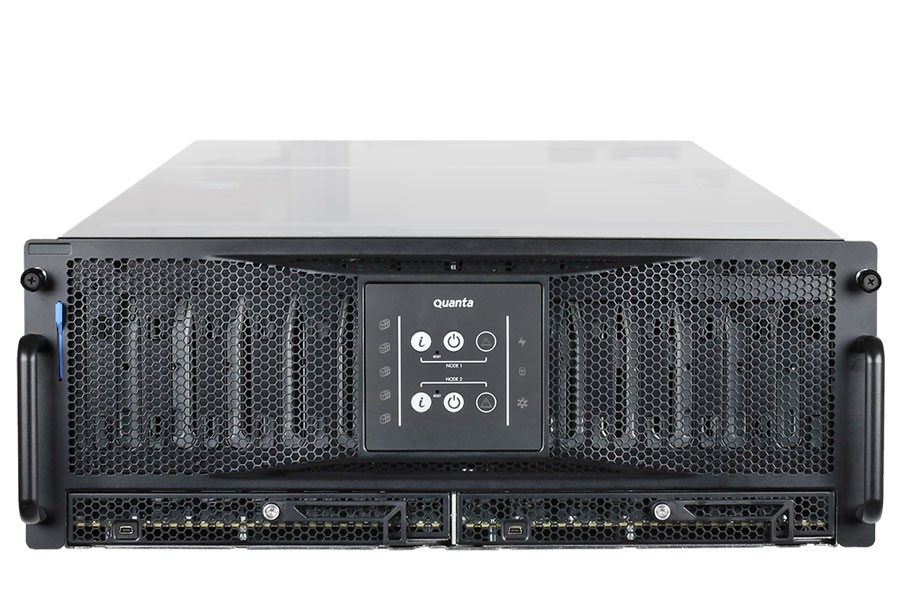

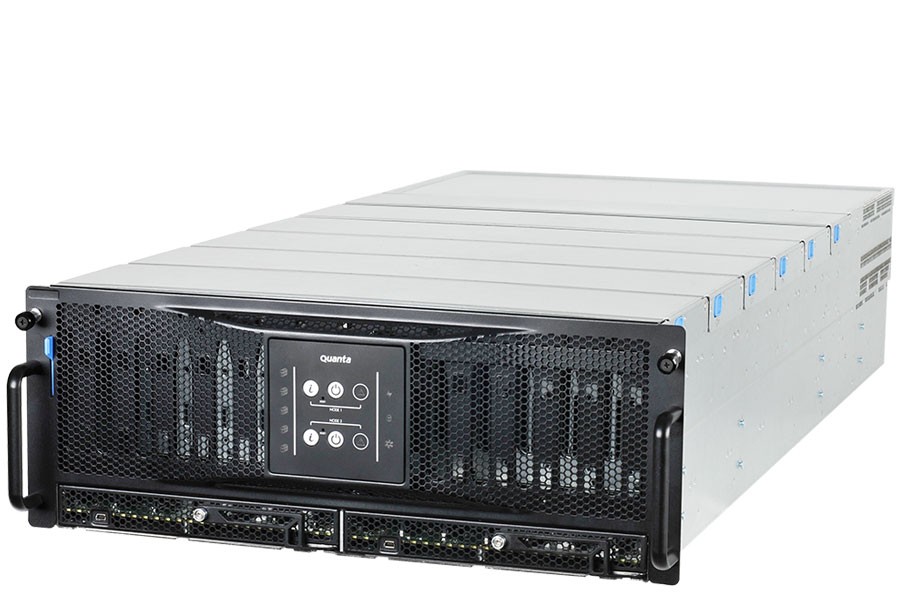

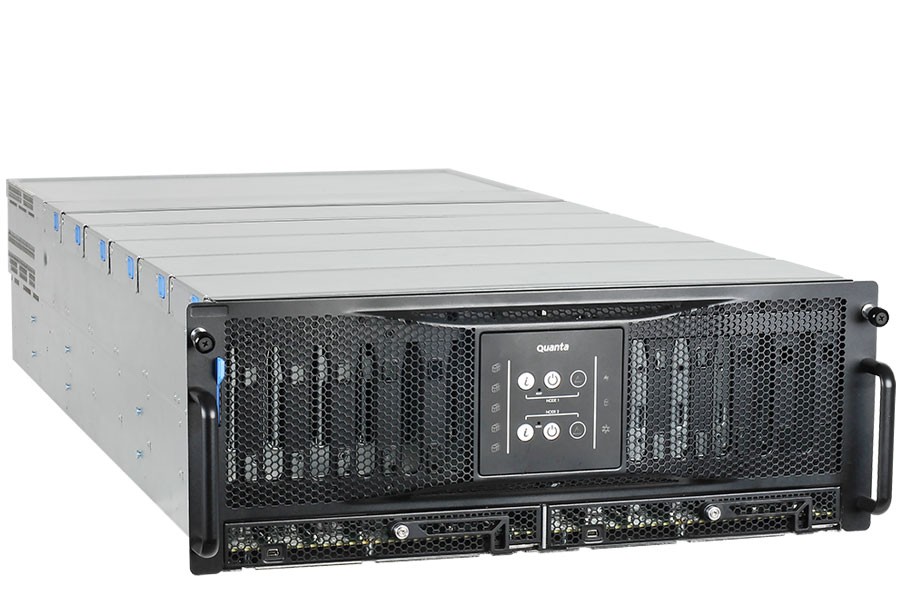

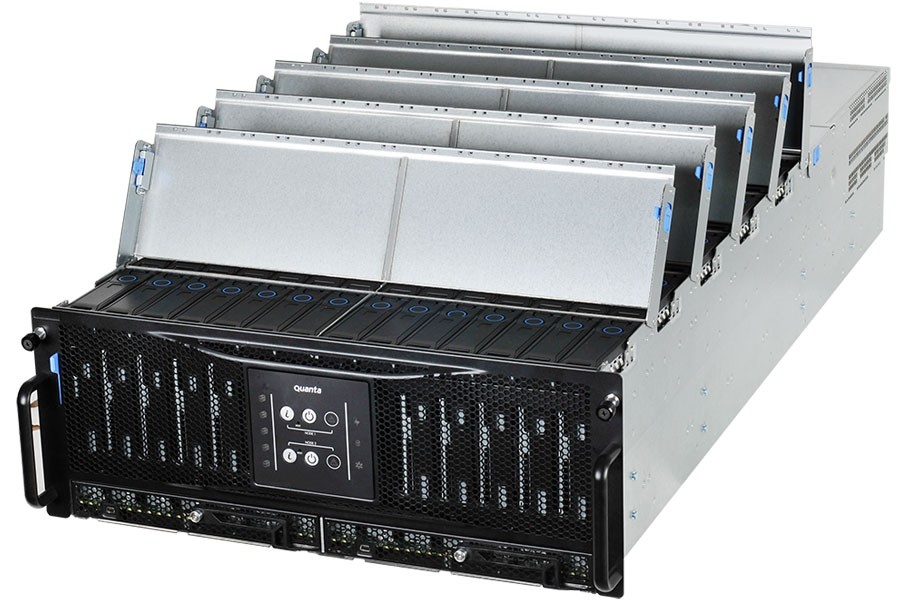

Quanta 4U 78 Bays High Density Storage Server USED

  • Maximized Storage Capacity
  • Extreme Computing Performance

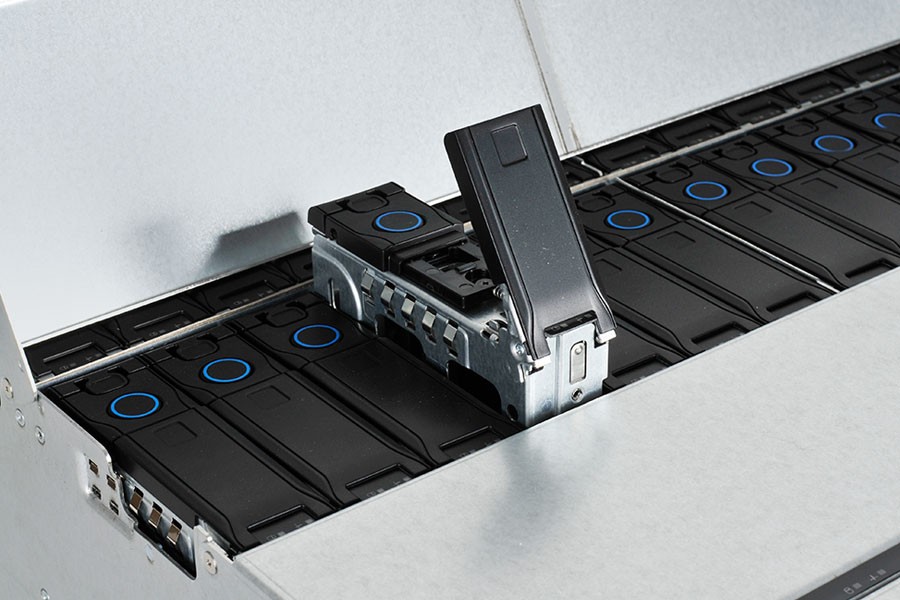

  • Screw-less HDD Tray for Efficient Deployment
  • Flexible and Versatile I/O Scalability
  • 1200W Redundant Power Supply
  • Chassis Depth is 35.9"
Come with 2x E5-2620v4 CPU and 4x 16GB 2666 RDIMM Memory
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU T21P-4U-78
Processor
Processor Type:
2x Intel® Xeon® processor E5-2600 v3,v4 product family,
Max. TDP Support:
135W
Number of Processors:
2
Internal Interconnect:
6.4 / 8.0/ 9.6 GT/s
L3 Cache:
Up to 45MB
Memory
Type:
2133/2400 MHz DDR4 RDIMM/ LRDIMM
Total Slots:
16
Capacity:
Up to 512GB RDIMM
Up to 1024GB LRDIMM
Chassis
4U Chassis
Dimensions
17.6”(W)x 6.9”(H)x 35.9”(L)
447mm(W)x 175.3mm(H)x 912.2mm(L)
Front Panel
Power/ID/Reset Buttons, LEDs
HDD Drive Bays

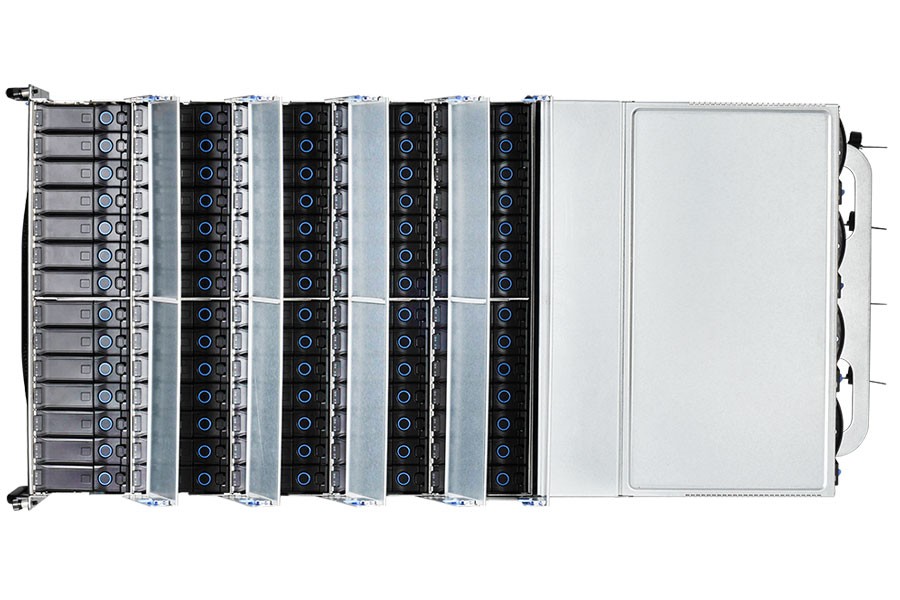

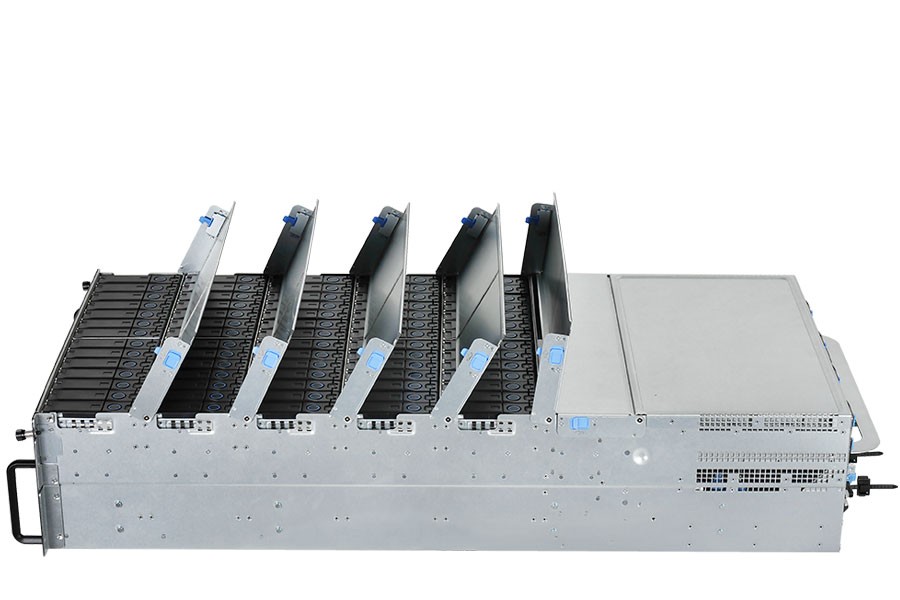

78x 3.5"/2.5” hot plug
Expansion Slots
1x PCIe Gen3 x8 HHHL
1x OCP PCIe Gen3 x8 LAN Mezz
1x PCIe Gen3 x8 riser slot 2 HHHL or SAS Mezz
1x PCIe Gen3 x16 riser slot 3 FHHL
Power Supply
Redundant 2+2 PSU (1,200W, 100V-240V, Platinum)
Input Output

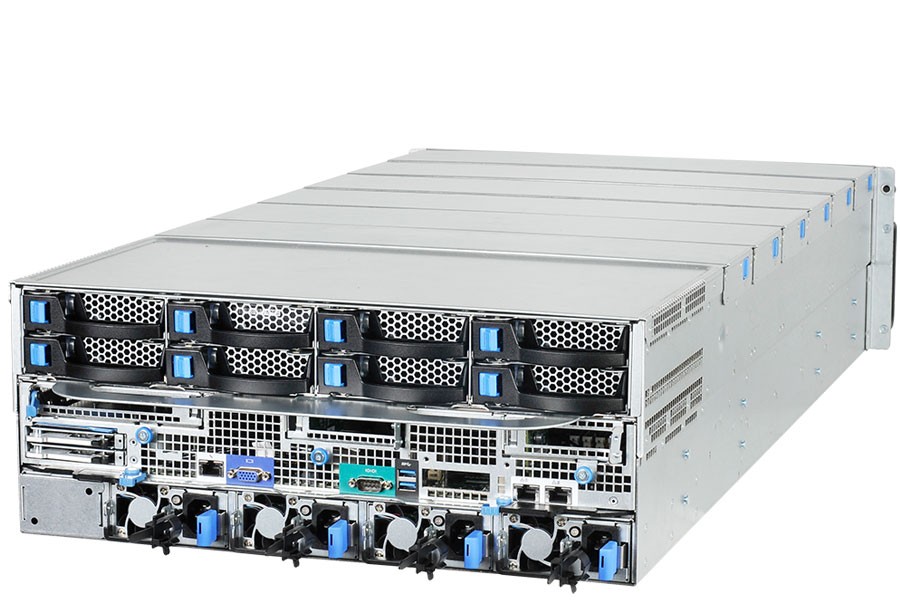

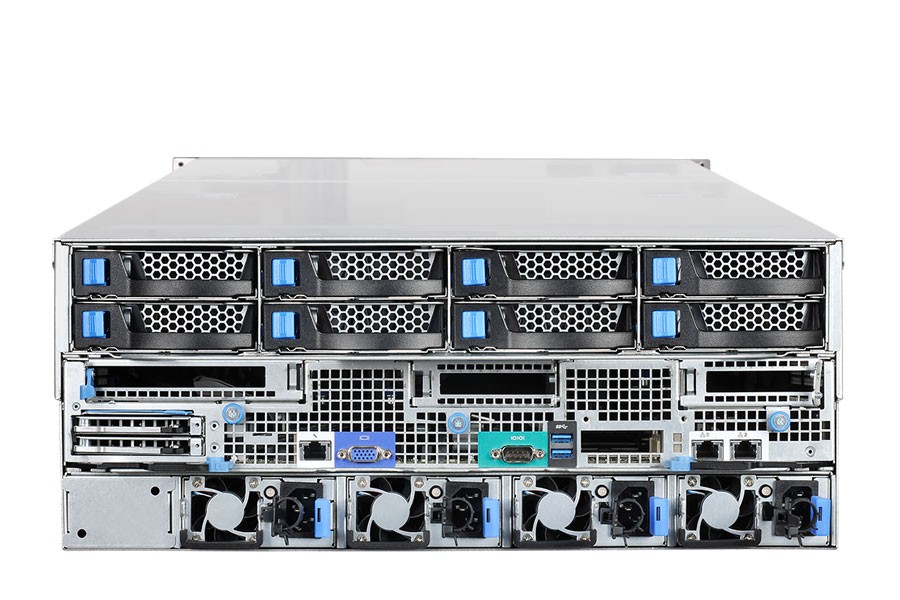

Rear I/O:
2x USB 3.0 ports
1x VGA port
2x RS232 serial port
2x GbE RJ45 ports
1x GbE RJ45 management port
Cooling
4x 8056 + (1) 6056 dual-rotor fans, support one rotor failed redundancy
Operating Environment
Operating temperature:
5°C to 35°C (41°F to 95°F)
Non-operating temperature:
-40°C to 65°C (-40°F to 149°F)
Operating relative humidity:
50% to 85%RH.
Non-operating relative humidity:
20% to 90%RH
Details
P/N: 1S2PZZZ0008

Storage Controller:
Wellsburg PCH RSTe

System Management:
IPMI v2.0 Compliant, on board "KVM over IP" support

Network controller:
Dual GbE ports Intel® I350 LOM
1x Dedicated management 10/100/1000 port
Option:
QCT Intel® I350 dual-port OCP mezzanine
QCT Intel® X540 dual-port 10GbE BASE-T OCP mezzanine
QCT Intel® 82599ES dual-port 10G SFP+ OCP mezzanine
QCT Mellanox CX3PRO 10G SFP+ OCP mezzanine with RDMA support

Onboard Storage:
2x 2.5" hot-plug SSD
1x SATADOM

Video:
ASPEED AST2400 8MB DDR3 video memory]

TPM:
Yes (TPM 2.0/1.2, LPC)
T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78T21P-4U-78
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
File Description Date Type Size Download
DATASHEET 06-08-15 PDF 144.53 KB
