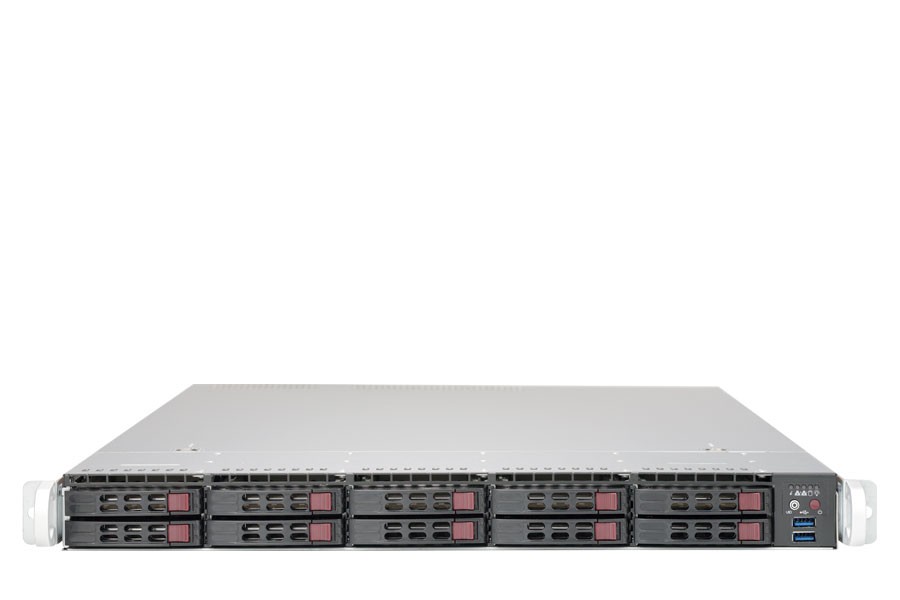

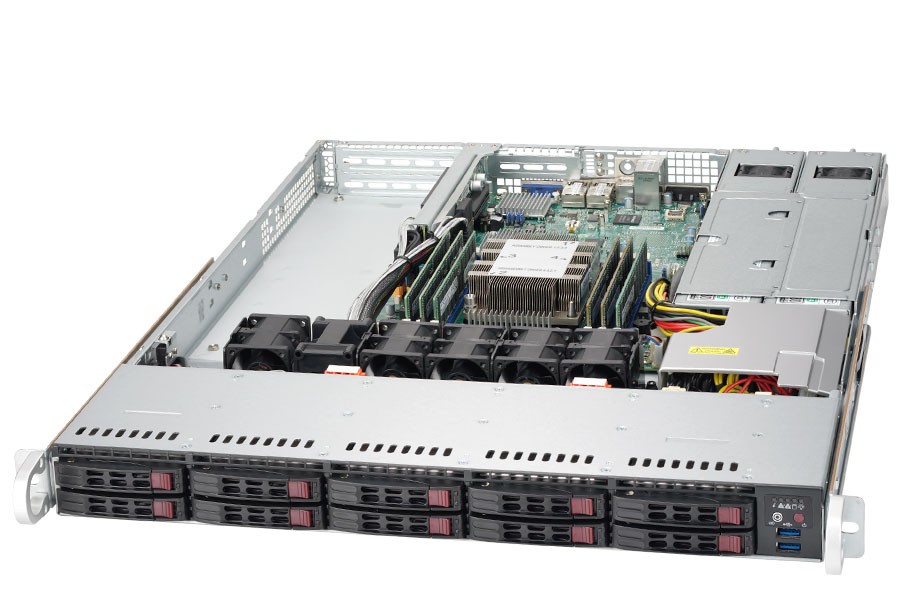

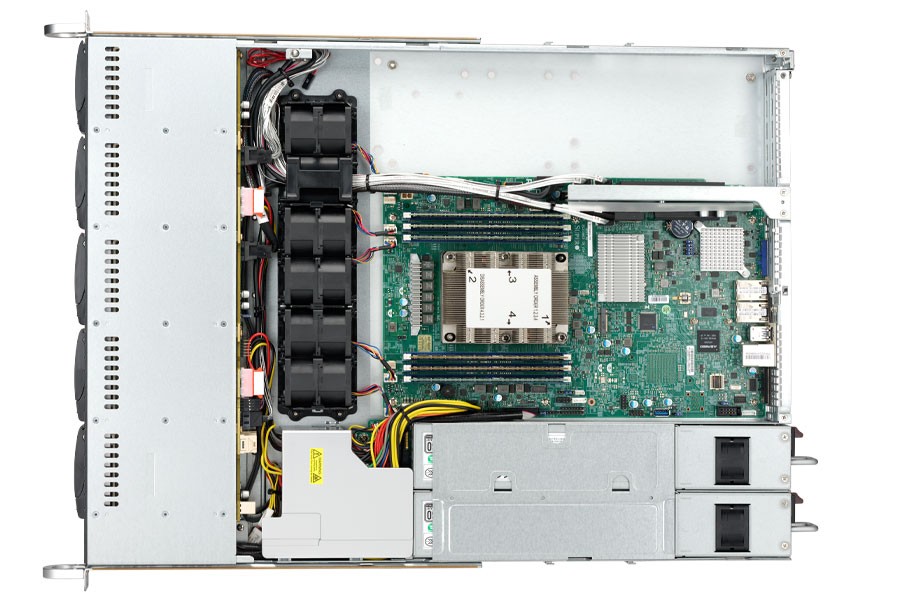

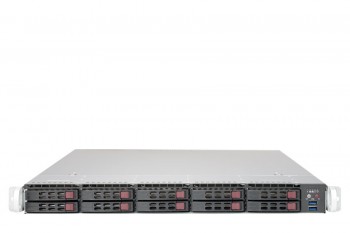

Supermicro 1U 10 Bays Single 2nd Gen Scalable Processor Rackmount Server
- Single Socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
- 6x DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
- 2x PCI-E 3.0 x16 (FHFL) slots, 1x PCI-E 3.0 x8 (LP) slot
- 10x Hot-swap 2.5" SATA3 drive bays; 2x NVMe w/ AOC option
- 2x 10GBase-T LAN ports via Intel® X557
- 1x VGA, 2x COM, 2x USB 3.0, 2x USB 2.0
- 2x SuperDOM (Disk on Module) ports
- 500W Redundant Platinum Level power supplies
- DB Processing & Storage, Data Center Applications
Storage configuration notice:
Hot-swap:
10x Hot-swap 2.5" SATA3 drive bays
1x M.2
2x U.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | SYS-1019P-WTR |
Processor | CPU:
Single Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake) Support CPU TDP 70-205W Cores:
Up to 28 Cores Note:
BIOS version 3.0b or above is required to support 2nd Gen. Intel® Xeon® Scalable processors |
Memory | Memory Capacity:
6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro Cascade Lake only. Contact your Supermicro sales rep for more info. |
Chassis | 1U Rackmount Chassis
|
Dimensions | Height:
1.7" (43mm) Width:
17.2" (437mm) Depth:
23.5" (597mm) |
Front Panel | Buttons:
Power On/Off button System Reset button LEDs:
Power LED Hard drive activity LED Network activity LEDs System Overheat LED Information LED (temp., status) |
Bios | BIOS Type:
AMI 32Mb SPI Flash ROM |
Onboard Devices | Chipset:
Intel® C622 chipset SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers:
Dual Intel® X557 10GBase-T LAN ports Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output IPMI:
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video:
ASPEED AST2500 BMC |
HDD Drive Bays | Hot-swap:
10x Hot-swap 2.5" SATA3 drive bays 2x NVMe with AOC (option) M.2:
M.2 mini-PCI-e support |
Expansion Slots | 2x PCI-E 3.0 x16 (FHFL) slots
1x PCI-E 3.0 x8 (LP) slot |
Power Supply | 500W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC
AC Input:
100-240V, 50-60Hz, 6.1-2.6A DC Output:
+5V standby: 3A +12V: 42A With Power Distributor:
+5V: 25A +3.3V: 12A -12V: 0.6A Certification:
Platinum Level Certified |
Input Output | SATA:
10x SATA3 (6Gbps) ports LAN:
2x RJ45 10GBase-T LAN ports 1x RJ45 dedicated IPMI LAN port USB:
2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) Video:
1x VGA port Serial Port / Header:
2x COM ports (1x rear, 1x header) SuperDOM:
2x SuperDOM (Disk on Module) ports with built-in power |
Cooling | 5x counter-rotation 40x56mm PWM fans
1x fan for AOC cooling (option) |
Operating Environment | RoHS:
RoHS Compliant Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Details | Management
Software:
Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog Power Configurations:
ACPI / APM Power Management PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN:
Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature:
Monitoring for CPU and chassis environment Thermal Control for 8x fan connectors |
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $462.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $62.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $168.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $416.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $490.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $6.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $68.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $174.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $422.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $1,430.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
- $402.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $317.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
- $280.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
- $98.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $305.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $812.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $319.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
- $234.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Added
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $468.00
Samsung SM883 2.5" SATA III SSD 480GB
- $327.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $374.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $334.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
- $302.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
- $139.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $201.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $820.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
- $309.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
- $216.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
- $9.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
- $337.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
- $172.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $251.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $467.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $442.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $406.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
- $309.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
- $85.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
- $185.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
- $1.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $378.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $980.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,448.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,456.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NVMe U.2/U.3
*No NVMe U.2 Drives
Added
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $299.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $585.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $715.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,300.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,470.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $338.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $494.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $845.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,495.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,860.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $291.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $466.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $861.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,547.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,754.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2516
1
1784.0000
