2029BT-HTR
$5,693.00 Configured Summary
2029BT-HTR
Supermicro 2U 4Node 24Bays Dual 2nd Gen Scalable Processor Rackmount Server

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM  card support (flexible networking) Note: must bundle with Network card
  • 6 Hot-swap 2.5" SATA3 drive bays
  • IPMI 2.0 + KVM with dedicated LAN
  • Video via Aspeed AST2500 BMC
  • 4 Heavy duty 8cm PWM fans with air shroud
  • 2200W Redundant Power Supplies Titanium Level (96%)
  • Compute Intensive Application, HPC, Data Center, Enterprise Server, Hyperscale / Hyperconverged
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-2029BT-HTR
Processor
(per Node)
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
(per Node)
(per Node)
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Width:
17.25" (438mm)
Height:
3.47" (88mm)
Depth:
28.5" (724mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset
Storage:
SATA3 (6Gbps) via Intel C620 controller; RAID 0, 1, 5, 10 per node
Network:
Must bundle with at least one SIOM network card
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
ASPEED AST2500 BMC
HDD Drive Bays
24x Hot-swap 2.5" SATA3 drive bays
Expansion Slots
 (per Node)
PCI-Express:
2x PCI-E 3.0 (x16) Low-profile slots
1x SIOM card support
(must bundle with network card)

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power:

1200W/1800W/1980W/2090/2200W
Dimension (W x H x L):
45 x 40 x 480 mm
Input:
100-127Vac / 50-60Hz (1200W)
200-220Vac / 50-60Hz (1800W)
220-230Vac / 50-60Hz (1980W)
230-240Vac / 50-60Hz (2090W)
For TUV/CB/others safety rating only
180-220Vac / 50-60Hz (2090W)
For UL/cUL safety rating only
220-240Vac / 50-60Hz (2200W)
+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 174.17A / Min: 0A (180-220Vac)
Max: 183.33A / Min: 0A (220-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
Backplanes (connector)
Certification:
UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
Input Output
 (per Node)
LAN:

1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
Video:
1x VGA port
DOM:
1x SuperDOM (Disk on Module) port
Cooling
4x Heavy duty 8cm PWM fans with air shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI / APM Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors

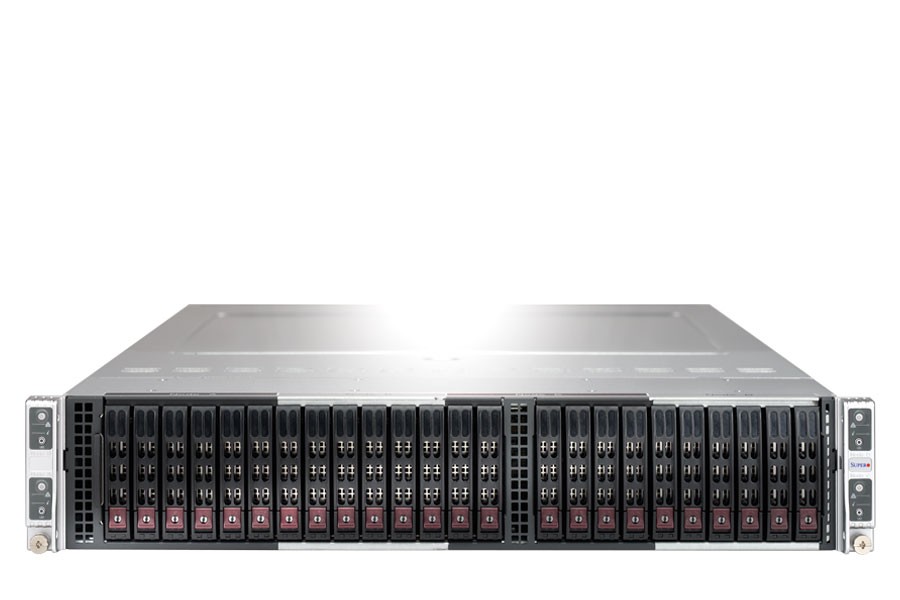

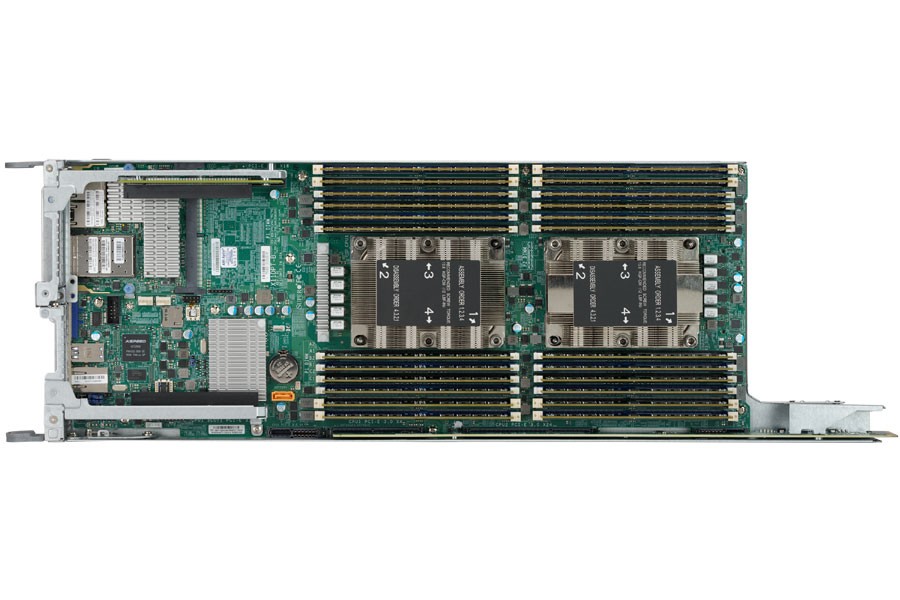

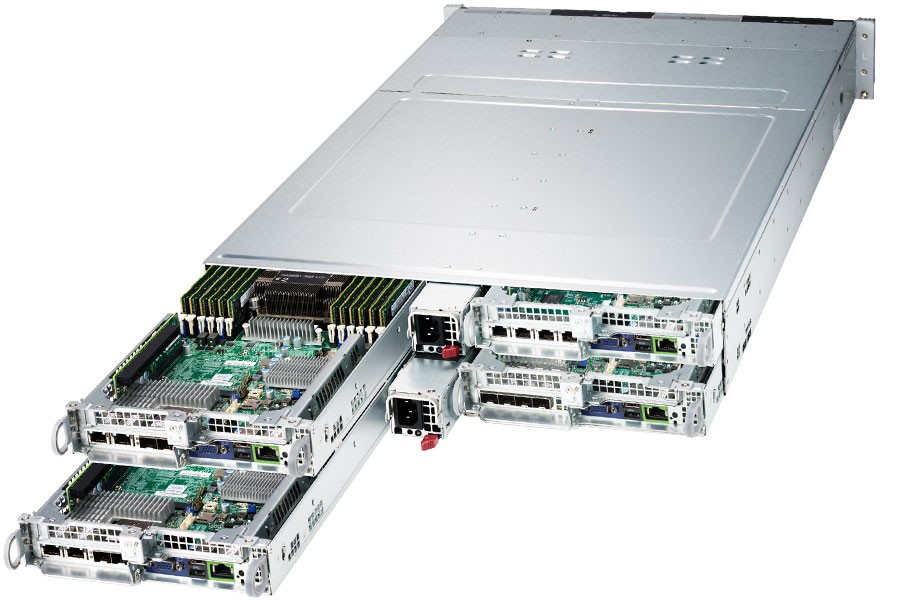

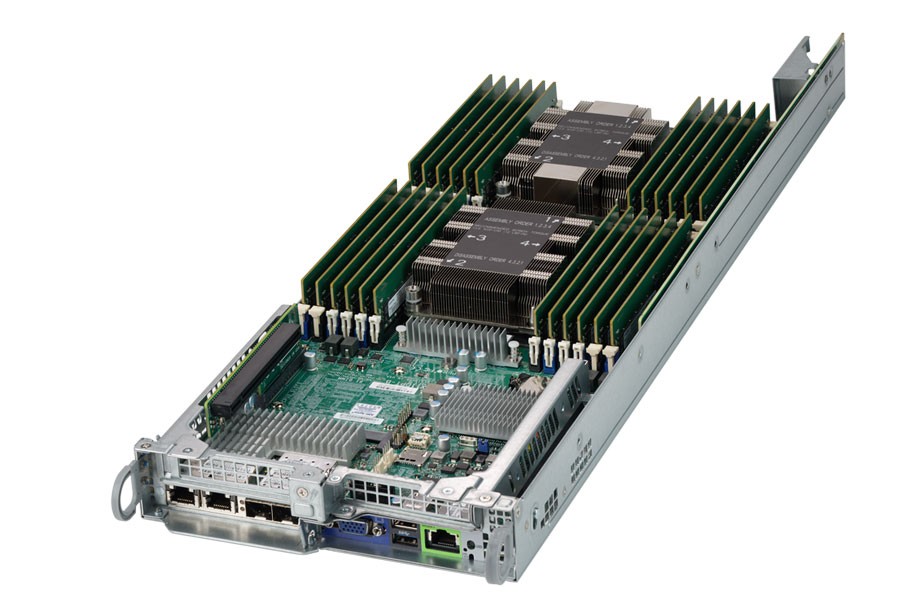

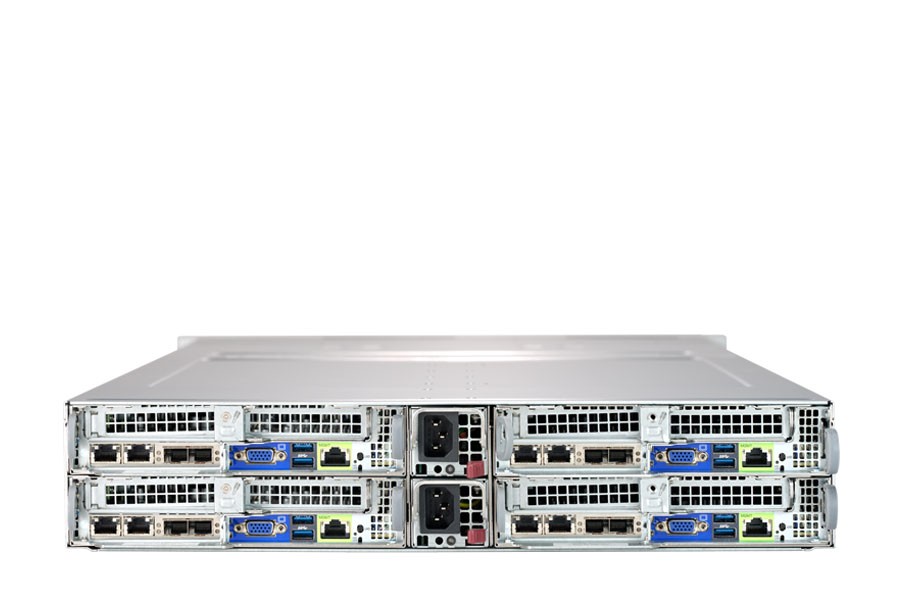

2029BT-HTR2029BT-HTR2029BT-HTR2029BT-HTR2029BT-HTR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $216.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $456.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $588.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $648.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $984.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,080.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $1,224.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,762.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,776.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $2,076.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $2,100.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $2,172.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,244.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,256.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,364.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $2,796.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,000.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,312.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $3,396.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,480.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $3,684.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $3,744.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $3,840.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $3,960.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,092.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,236.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,476.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $4,620.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,004.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,016.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $5,124.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,364.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $5,652.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $5,712.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $5,724.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,060.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,120.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $6,396.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,408.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,456.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $6,492.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $6,744.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $6,876.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,032.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $7,212.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,452.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $7,524.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $7,716.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,068.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,392.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,208.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $11,724.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $12,708.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $12,852.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,236.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,116.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $16,788.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,056.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $21,972.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $22,848.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $25,788.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $28,692.00
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
+ $12.00
16GB DDR4 2666 ECC Registered Memory
+ $134.00
16GB DDR4 2933 ECC RDIMM Memory
+ $162.00
32GB DDR4 2933 ECC RDIMM Memory
+ $182.00
32GB DDR4 2666 ECC Registered Memory
+ $284.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $374.00
64GB DDR4 2933 ECC RDIMM Memory
+ $578.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $820.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $516.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $732.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $972.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $1,104.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $1,164.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,596.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $2,292.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,772.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,880.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,996.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $4,200.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $4,260.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $4,356.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $4,476.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,608.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,752.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,992.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,520.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,532.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,880.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $6,168.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $6,228.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,576.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,636.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,924.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,972.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $7,008.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $7,260.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $7,392.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,548.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,968.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $4,020.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $8,232.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,584.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,908.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,724.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $12,240.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $13,224.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $13,368.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,752.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,632.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $17,304.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,572.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $22,488.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $23,364.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $26,304.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $29,208.00
MeMory-2nd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $178.00
8GB DDR4 2933 ECC RDIMM Memory
+ $95.00
16GB DDR4 2666 ECC Registered Memory
+ $312.00
16GB DDR4 2933 ECC RDIMM Memory
+ $170.00
32GB DDR4 2933 ECC RDIMM Memory
+ $180.00
32GB DDR4 2666 ECC Registered Memory
+ $462.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $552.00
64GB DDR4 2933 ECC RDIMM Memory
+ $378.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $998.00
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $516.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $732.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $972.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $1,104.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $1,164.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,596.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $2,292.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,772.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,880.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,996.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $4,200.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $4,260.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $4,356.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $4,476.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,608.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,752.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,992.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,520.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,532.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,880.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $6,168.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $6,228.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,576.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,636.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,924.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,972.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $7,008.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $7,260.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $7,392.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,548.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,968.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $4,020.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $8,232.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,584.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,908.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,724.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $12,240.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $13,224.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $13,368.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,752.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,632.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $17,304.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,572.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $22,488.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $23,364.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $26,304.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $29,208.00
MeMory-3rd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $178.00
8GB DDR4 2933 ECC RDIMM Memory
+ $95.00
16GB DDR4 2666 ECC Registered Memory
+ $312.00
16GB DDR4 2933 ECC RDIMM Memory
+ $170.00
32GB DDR4 2933 ECC RDIMM Memory
+ $180.00
32GB DDR4 2666 ECC Registered Memory
+ $462.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $552.00
64GB DDR4 2933 ECC RDIMM Memory
+ $378.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $998.00
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $516.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $732.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $972.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $1,104.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $1,164.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,596.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $2,292.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,772.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,880.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,996.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $4,200.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $4,260.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $4,356.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $4,476.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,608.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,752.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,992.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,520.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,532.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,880.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $6,168.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $6,228.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,576.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,636.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,924.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,972.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $7,008.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $7,260.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $7,392.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,548.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,968.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $4,020.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $8,232.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,584.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,908.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,724.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $12,240.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $13,224.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $13,368.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,752.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,744.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,632.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $17,304.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,572.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $22,488.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $23,364.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $26,304.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $29,208.00
MeMory-4th Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $178.00
8GB DDR4 2933 ECC RDIMM Memory
+ $95.00
16GB DDR4 2666 ECC Registered Memory
+ $312.00
16GB DDR4 2933 ECC RDIMM Memory
+ $170.00
32GB DDR4 2933 ECC RDIMM Memory
+ $180.00
32GB DDR4 2666 ECC Registered Memory
+ $462.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $552.00
64GB DDR4 2933 ECC RDIMM Memory
+ $378.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $998.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2535
1
4940.0000
