2029P-C1RT
$3,309.00 Configured Summary
2029P-C1RT

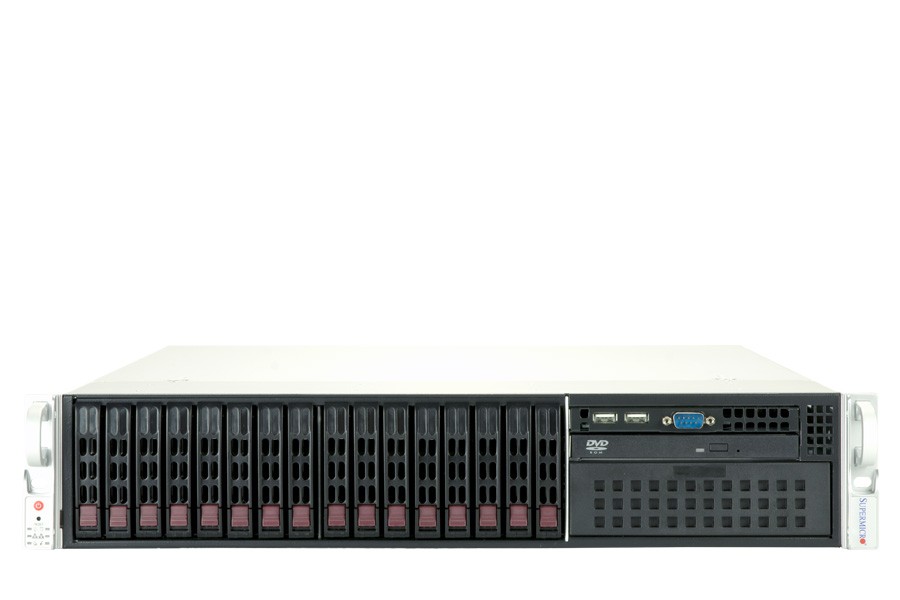

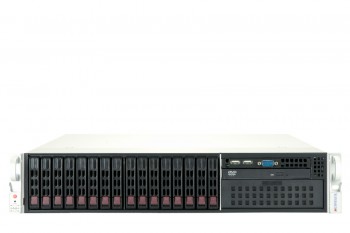

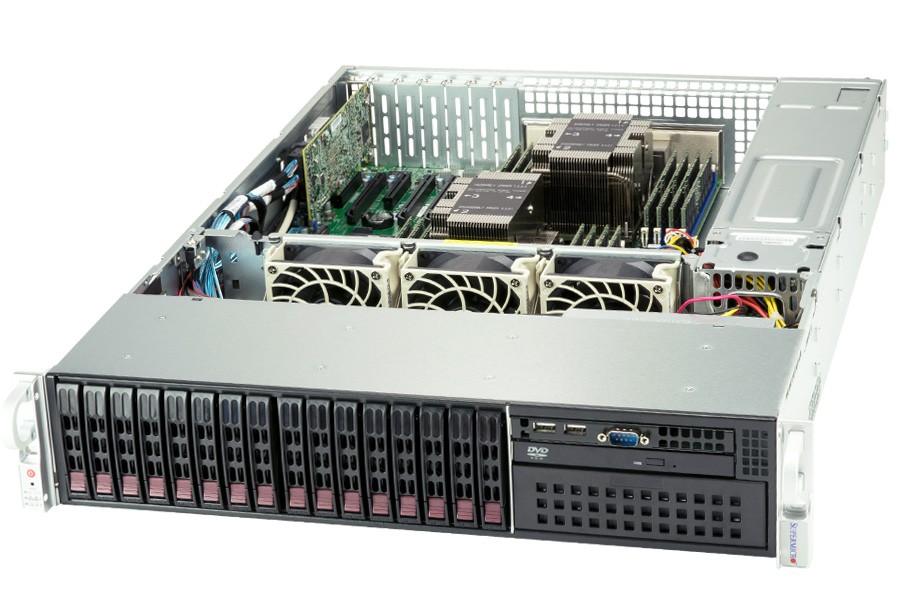

Supermicro 2U 16Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs
  • 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support
  • M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
  • 2x 10GBase-T LAN ports with Intel X722
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A
  • 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
  • 1200W Redundant Power Supplies Titanium Level (96%)

Storage configuration notice:
Hot-swap:
8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays
M.2:
1x M.2 support
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-2029P-C1RT

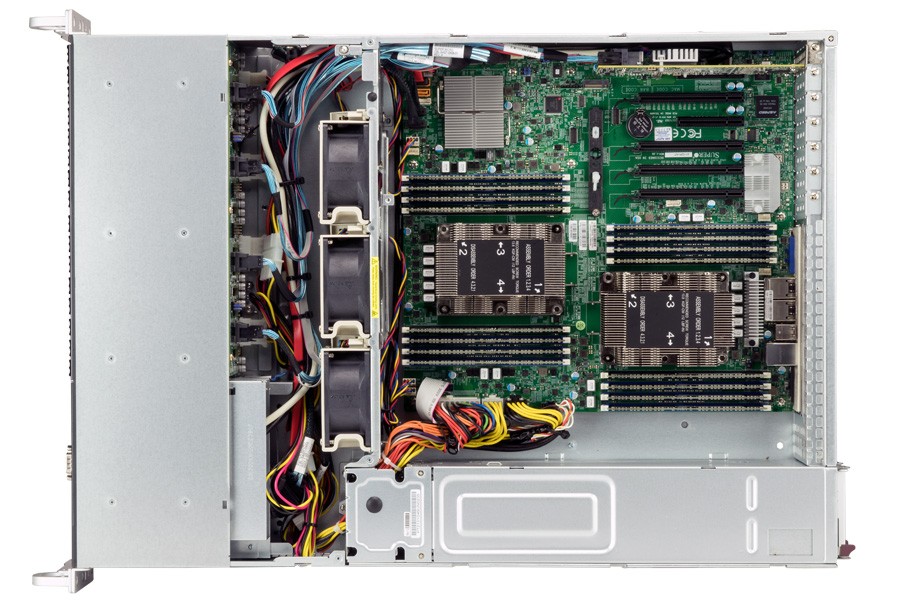

Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Cahssis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
24.8" (630mm)

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED

Bios
BIOS Type:
AMI UEFI

Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10 support
Network Controllers:
Must bundle with at least one SIOM network card
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays
Optional:
Optional 2 NVMe/SSD/HDD 2.5" fix drives
1 M.2 support
Optical Drive
Peripheral:
Optional DVD-ROM drive supports 1x slim or 1x 5.25" DVD drive
Expansion Slots
4x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slot
Support total of 5 Low-profile AOC
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1200W
Dimension (W x H x L):
76 x 40.4 x 336 mm
Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
19 Pairs Gold Finger Connector
Certification:
 UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
SATA:
8x SATA3 (6Gbps) ports
SAS:
8x SAS3 (12Gbps) ports

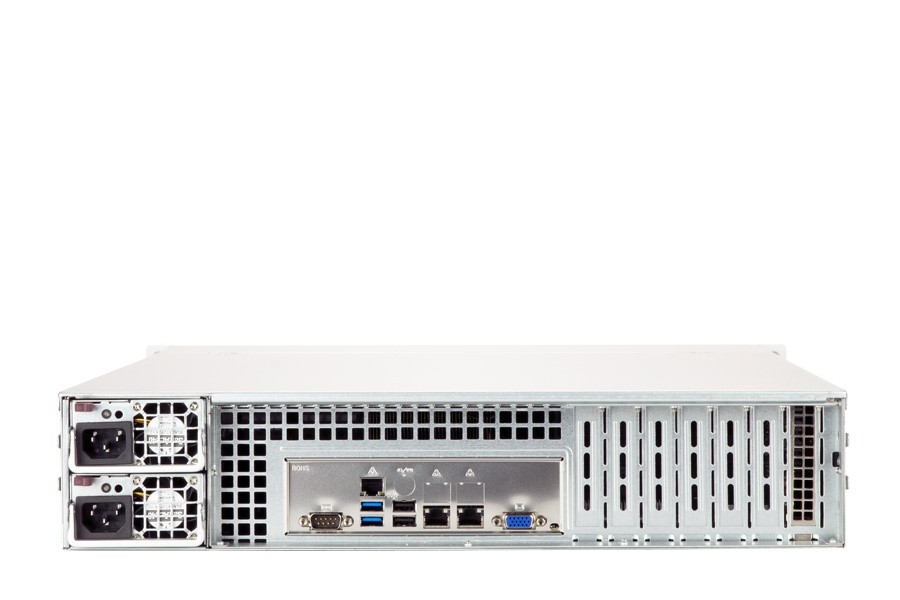

LAN:
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (2x rear)
4x USB 2.0 ports (2x rear, 2x front)
1x USB Type A
Video:
1x VGA Connector
Serial Port / Header:
2x Fast UART 16550 serial
2x COM Ports (1x rear, 1x front)
Cooling
3x Heavy duty 8cm fans with PWM fan speed and cooling zone control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
2029P-C1RT2029P-C1RT2029P-C1RT2029P-C1RT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $56.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $3.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $87.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $230.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $542.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,150.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $81.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $295.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $694.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $90.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $304.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $200.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $443.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $873.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,627.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,363.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2539
1
2796.0000
