5029P-WTR
$1,973.00 Configured Summary
5029P-WTR

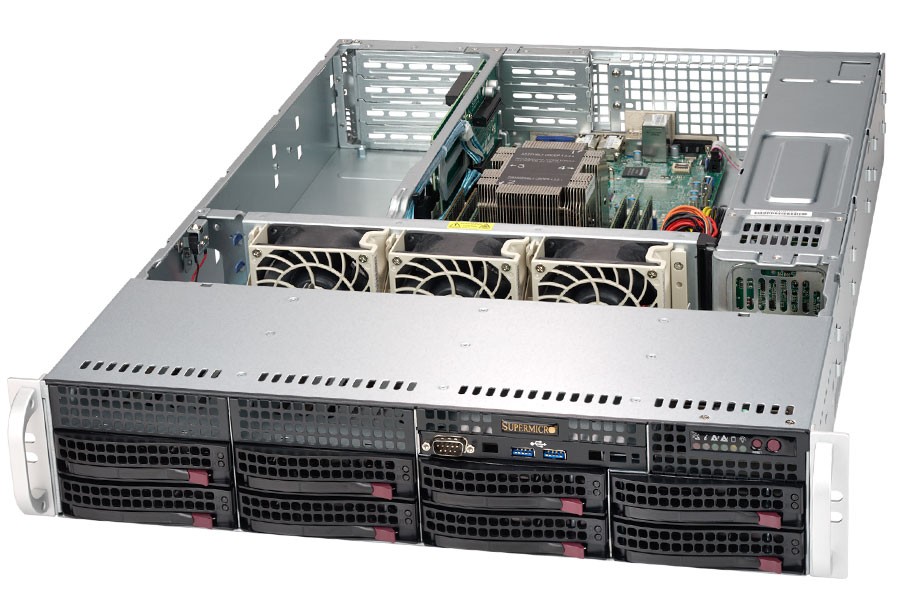

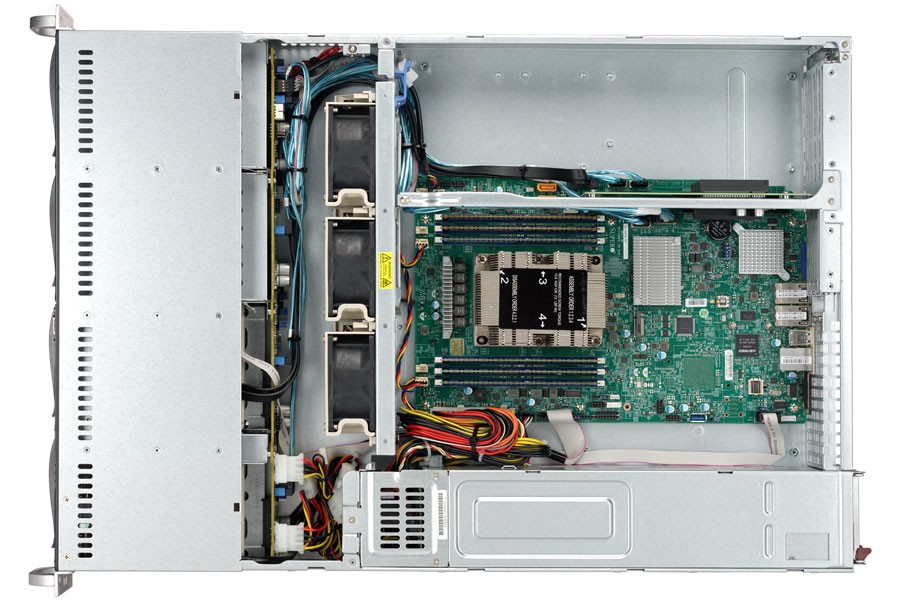

Supermicro 2U 8Bays Single 2nd Gen Scalable Processor Rackmount Server

  • Single Socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 8 Hot-swap 3.5" SATA3 drive bays
  • 2x 10GBase-T ports with Intel X772 + X557
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 2 SuperDOM (Disk on Module) ports
  • 500W Redundant Platinum Level power supplies
  • DB Processing & Storage, Connectivity/Storage Computer Nodes, Data Warehouse

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" SATA3 drive bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-5029P-WTR
Processor
CPU:
Single Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0b or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
6 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type:
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
25.6" (650mm)

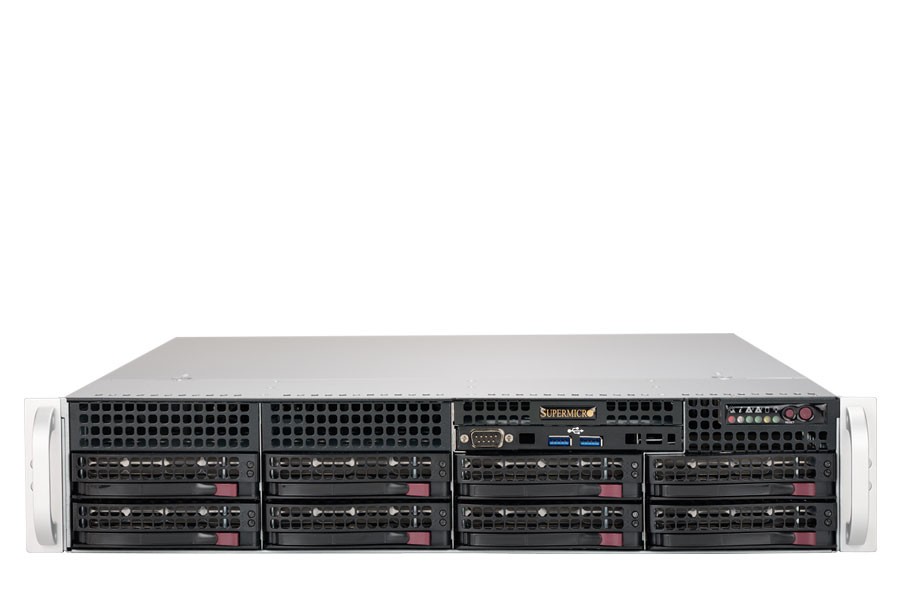

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Information LED (temp., status)
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C622 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:
Dual 10GBase-T LAN with Intel® X772 + X557
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
8x Hot-swap 3.5" SATA3 drive bays
M.2:
M.2 mini-PCI-e support
Optical Drive
1x Slim DVD-ROM drive bay
Expansion Slots
4x PCI-E 3.0 x8 (FHFL) slots
1x PCI-E 3.0 x8 (LP) slot
Power Supply
500W high-efficiency redundant power supplies with PMBus
AC Input:

100-240 V, 50-60 Hz, 6.1-2.6 Amp
DC Output:
  4 Amp @ +5V standby
  41.7 Amp @ +12V
With Power Distributor:
+5V: 30 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification:
Platinum Certified

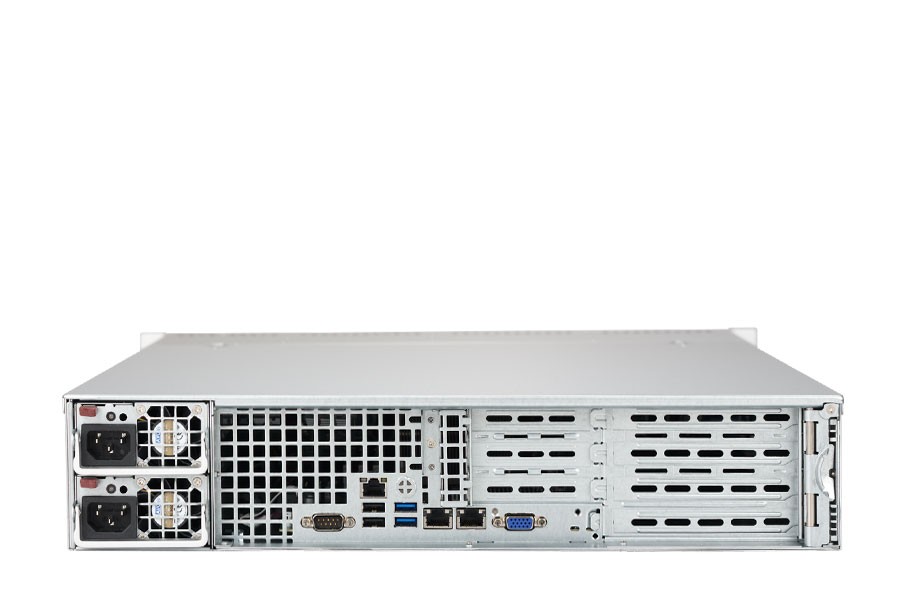

Input Output
SATA:
10x SATA3 (6Gbps) ports
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
Video:
1x VGA port
Serial Port / Header:
2x COM ports (1 rear, 1 header)
SuperDOM:
2x SuperDOM (Disk on Module) ports with built-in power
Cooling
3x Hot-swap 8cm PWM cooling fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI / APM Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
5029P-WTR5029P-WTR5029P-WTR5029P-WTR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $62.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $168.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $416.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $6.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $68.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $174.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $422.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2548
1
1764.0000
