2029P-TXRT
Please Inquire Configured Summary
2029P-TXRT

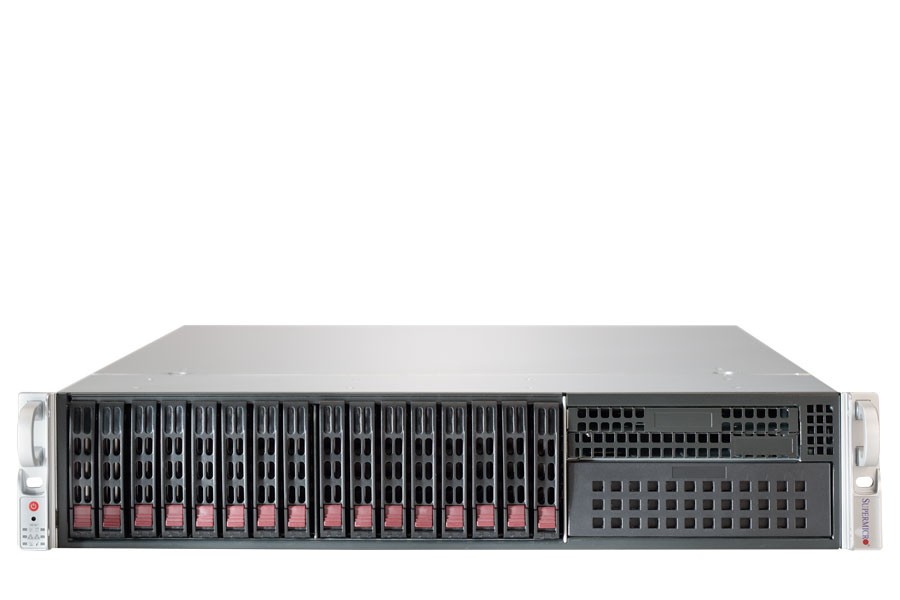

Supermicro 2U 16Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot)
  • 16 Hot-swap 2.5" SAS/SATA drive bays, 1 slim DVD-ROM drive bay
  • 2x 10GBase-T ports via Intel X550-AT2
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 4 middle fans
  • 1000W Redundant Power Supplies Titanium Level (96%)
  • Industrial Server Solutions, Networking Telephony, Surveillance DCR, GPU Pass-through VM server, Flash Array Server, Head-node Controller
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-2029P-TXRT
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
3 UPI up to 10.4GT/s
Support CPU TDP 205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
25.6" (650mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System information (overheat/UID) LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Intel® X550-AT2 Dual Port 10GBase-T
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Intel® X550-AT2 Dual Port 10GBase-T
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
Optical Drive
1x slim DVD-ROM drive
Expansion Slots
2x PCI-E 3.0 x16 slots (HSSI)
2x PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by Mixed)
4x PCI-E 3.0 x8 slots
1x PCI-E 3.0 x4 (in x8 slot)
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:

800W/1000W
Dimension (W x H x L):
38 x 40 x 360 mm
Input:
100-127Vac / 9-7.5A / 50-60Hz
200-240Vac / 6-5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification:
UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
Input Output
Serial ATA:
10x SATA3 (6Gbps) ports
LAN:
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
Serial Port / Header:
1x COM port (rear)
VGA:
1x VGA port
DOM:
2x SuperDOM (Disk on Module) ports
TPM:
1x TPM 2.0 Header
Cooling
4x Middle fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
2029P-TXRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
16GB DDR4 2666 ECC Registered Memory
16GB DDR4 2933 ECC RDIMM Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2933 ECC RDIMM Memory
32GB DDR4 2400 ECC LRDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
64GB DDR4 2933 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
2.5" SATA 6Gb/s 7200RPM 2TB
2.5" SAS 12Gb/s 10000RPM 600GB
2.5" SAS 12Gb/s 10000RPM 900GB
2.5" SAS 12Gb/s 10000RPM 1.2TB
2.5" SAS 12Gb/s 10000RPM 1.8TB
2.5" SSD SATA 6Gb/s 256GB
2.5" SSD SATA 6Gb/s 512GB
2.5" SSD SATA 6Gb/s 1TB
2.5" SSD SATA 6Gb/s 2TB
OPTICAL DRIVE
*No CD-ROM
Added
Slim Internal DVD-RW
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
