F629P3-RTB
Please Inquire Configured Summary
F629P3-RTB

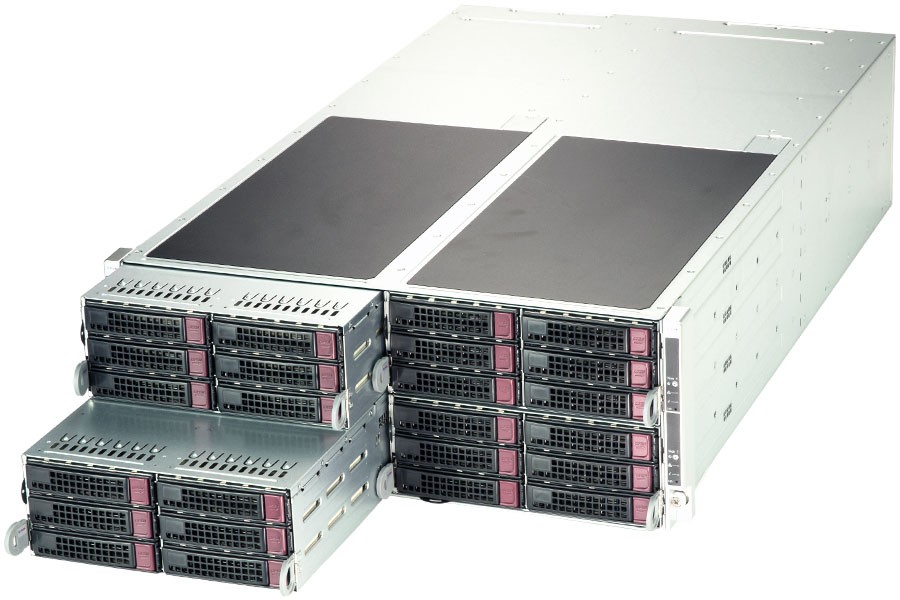

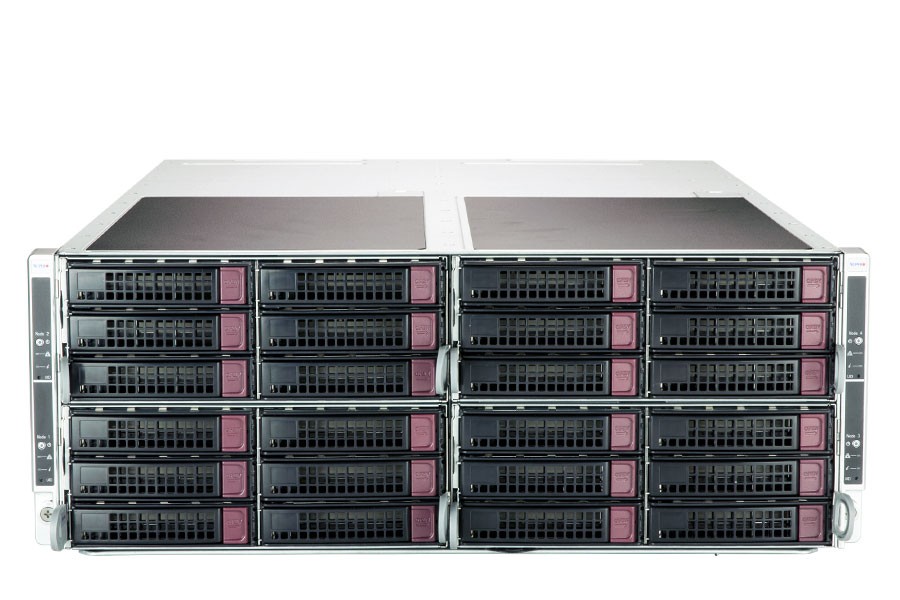

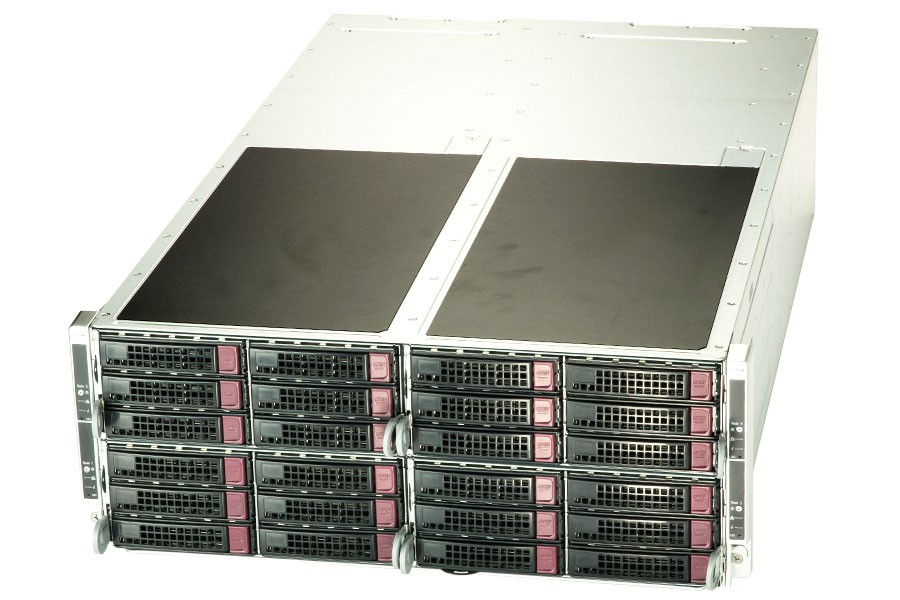

Supermicro 4U 4Nodes 32Bays Dual Scalable Processor FatTwin Server

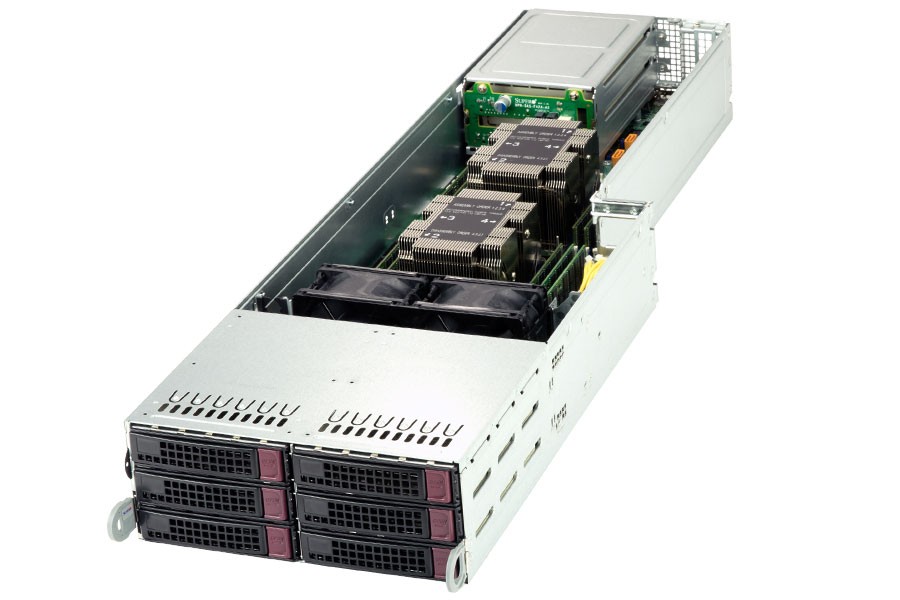

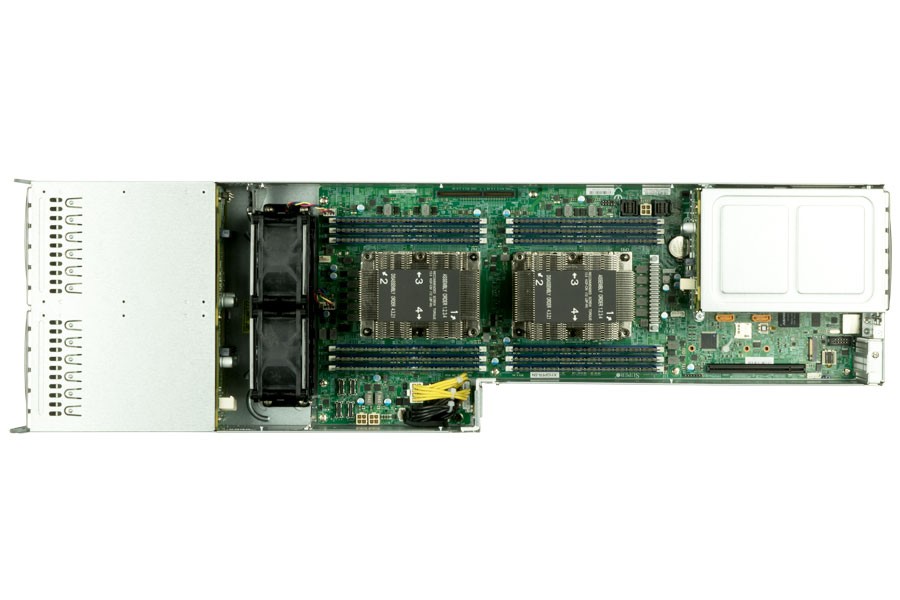

4 Hot-plug System Nodes in 4U Each node supports:
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots Supports Intel Optane Memory NVDIMM
  • Expansion slots: 1 PCI-E 3.0 x16 (LP) 1x PCI-E 3.0 x16 (for SIOM)
  • SIOM Network card, 1x dedicated IPMI LAN port
  • 1x VGA, 2 USB 3.0 ports
  • 8x Hot-swap 3.5" SATA3 drive bays
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Power Supplies Titanium Level (96% Efficiency)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-F629P3-RTB
Processor
(per node)
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology
Memory
(per node)
Memory Capacity:
12 DIMM slots
Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.63" (448mm)
Height:
6.96" (177mm)
Depth:
29" (737mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
Information LED (UID, Fan failure, Overheat)
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
HDD Drive Bays
(per node)
Hot-swap:
8 Hot-swap 3.5" SATA3 drive bays
M.2:
M.2 Support

1x SAS/SATA backplane
Expansion Slots
(per node)
1x PCI-E 3.0 x16 (Low-profile)
1x PCI-E 3.0 x16 (SIOM)
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1200W
Dimension (W x H x L):
76 x 40 x 336 mm
Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
19 Pairs Gold Finger Connector
Certification:
 UL/cUL/CB/BSMI/CE/CCC
Titanium Level

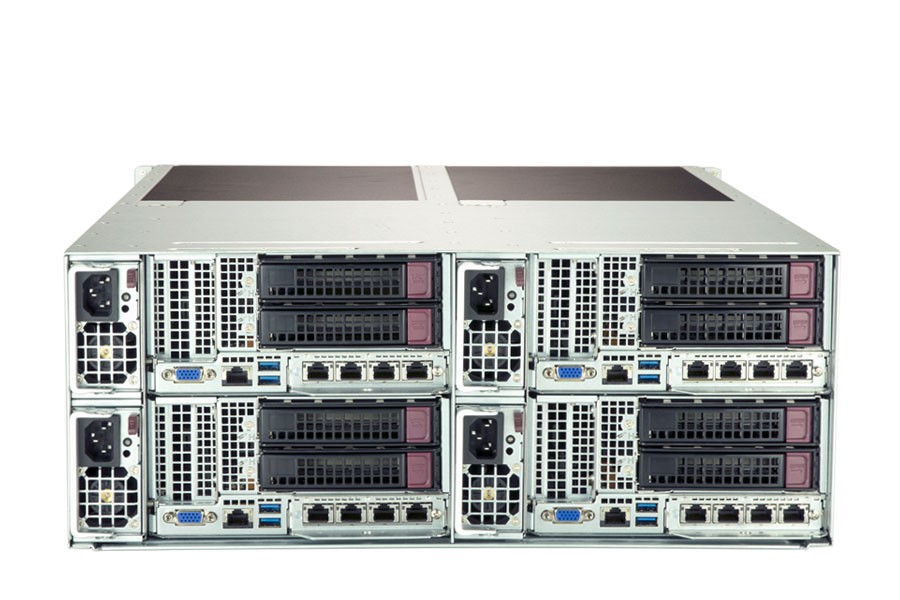

Input Output
(per node)
SATA:
14x SATA3 (6Gbps) ports
LAN:
SIOM flexible Network card
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
VGA:
1x VGA port
Cooling
 (per node)
2x 8cm 14k RPM middle fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
F629P3-RTBF629P3-RTBF629P3-RTBF629P3-RTBF629P3-RTBF629P3-RTB
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2400 ECC LRDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
MeMory-2nd Node
*No Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2400 ECC LRDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
MeMory-3rd Node
*No Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2400 ECC LRDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
MeMory-4th Node
*No Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2400 ECC LRDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
3.5" SATA 6Gb/s 7200RPM 10TB
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
M.2 2280 SATA SSD 128GB
M.2 2280 SATA SSD 256GB
M.2 2280 SATA SSD 512GB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
2561
1
0.0000
