7049A-T
$2,329.00 Configured Summary
7049A-T
Supermicro 4U/Tower 8Bays Dual 2nd Gen Scalable Processor Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots, M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280, 22110, M.2 Key: M-Key, 2 PCI-E 3.0 NVMe x4 Internal Port(s)
  • 2x 1GbE LAN ports
  • 7.1 HD Audio
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 dafault), 1 M.2 slot, 2 NVMe support with opt. cables
  • 1200W High-efficiency Power Supply Platinum Level Certified

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
M.2:
1x m.2 Drive

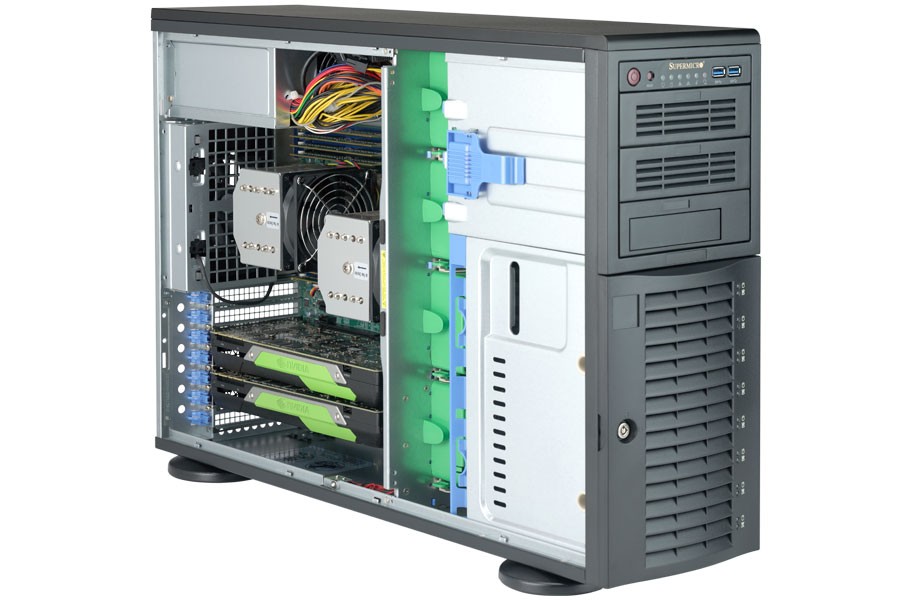

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-7049A-T
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
DIMM Sizes:
RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Note:
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U/Tower Chassis
Dimensions
Height:
17.8" (452mm)
Width:
7.0" (178mm)
Depth:
25.5" (648mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat / Fan Fail LED
Ports:
2x front USB 3.0 Ports
Bios
BIOS Type:
UEFI 128M
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:
Dual LAN with GbE from C621
IPMI:
ASPEED AST2500
Audio:
RealTek ALC888 7.1 High Definition Audio with S/PDIF header
HDD Drive Bays
Hot-swap:
8x Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bay(s) [90o Rotatable]:
3x 5.25" drive bays
Backplane:
Supports 8 SATA3 or 8 SAS3 HDD
Expansion Slots
PCI-Express:
4x PCI-E 3.0 x16 slots
2x PCI-E 3.0 x8 slots (Thunderbolt header for Thunderbolt 3.0 AOC support)
M.2:
Interface: PCIe 3.0 x4
Form Factor: M-Key 2260, 2280, 22110
Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input:
1000W: 100-114.9 V, 50-60 Hz, 12 Amp
1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output:
+3.3V / +5V / +12V / -12V / +5VSB
1000W max:
20A /  20A /   83A /  0.3A /   3A
1200W max:
20A /  20A /   99A /  0.3A /   3A
Note:
Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification:
Platinum Certified
Input Output
SATA:
10x SATA3 (6Gbps) ports
NVMe:
2x NVMe support with optional cables
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
6x USB 3.0 ports (4 rear, 2 front)
2x USB 3.1 ports (rear)
Audio:
7.1 HD Audio with optical S/PDIF
Video:
1x VGA port
Serial Port / Header:
1x COM port (header)
DOM:
2x SuperDOM (Disk on Module) ports
TPM:
1x TPM 2.0 Header
Cooling
2x Super quiet PWM chassis fans (support up to 4 fans)
1x Super quiet rear fan with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
SSM, SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
7049A-T7049A-T7049A-T7049A-T

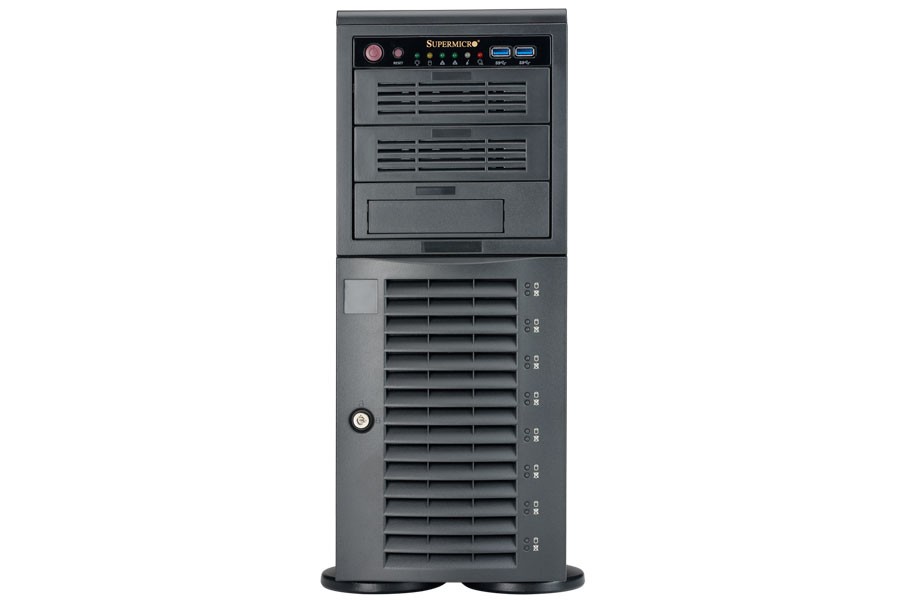

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $924.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $980.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,860.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX A4000 GDDR6 Video Card 16GB
+ $1,203.00
NVIDIA RTX A5000 GDDR6 Video Card 24GB
+ $2,502.00
NVIDIA RTX A6000 GDDR6 Video Card 48GB
+ $4,940.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $8,710.00
NVIDIA A30 24GB HBM2 GPU Card
+ $4,950.00
NVIDIA A40 48GB GDDR6 GPU Card
+ $5,824.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2565
1
1815.0000
