PWS-920P-1R

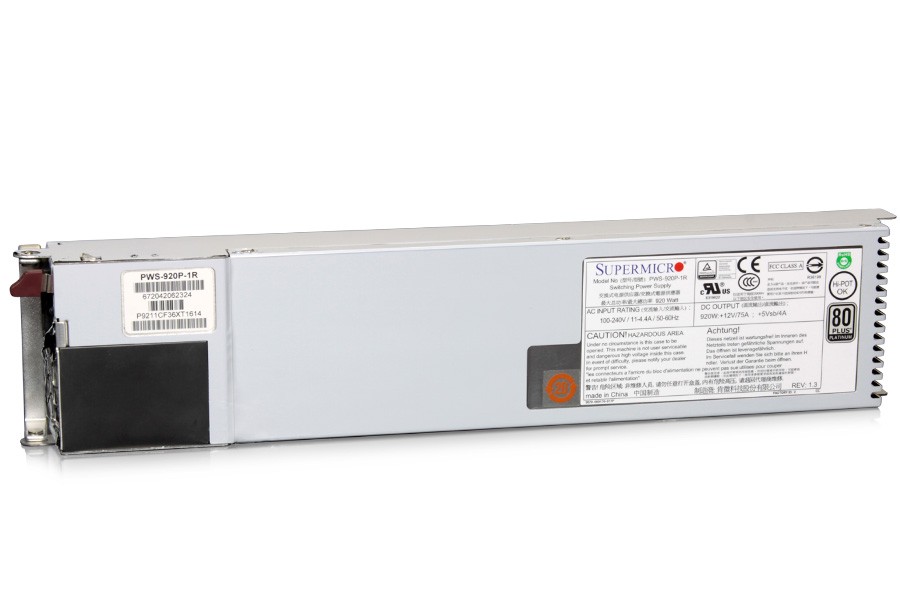

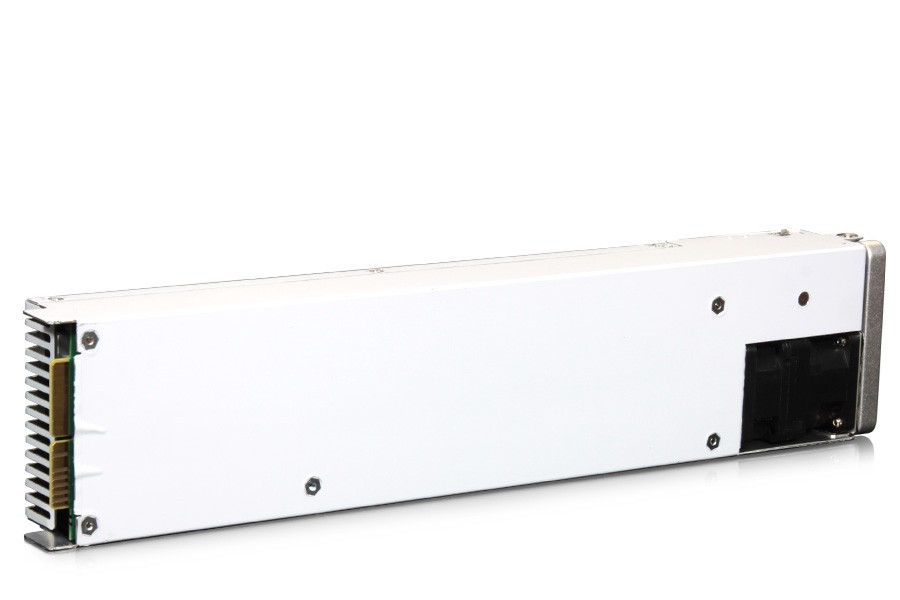

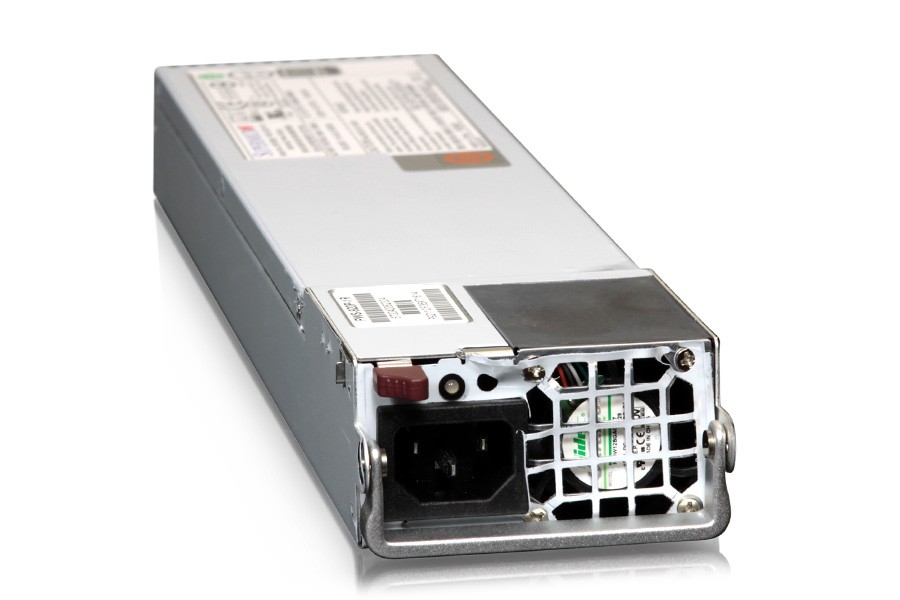

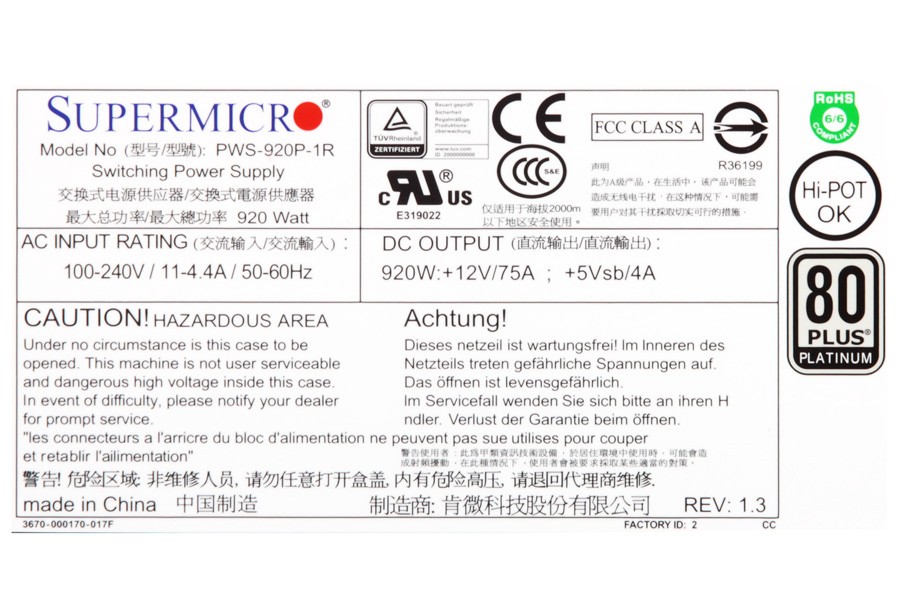

Supermicro PWS-920P-1R 920W 1U Redundant Power Supply

  • Supermicro
  • PWS-920P-1R
  • Server Products
  ( 1 Pcs in Stock)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU PWS-920P-1R
Power Supply
TOTAL POWER OUTPUT 920W
TYPE Module
FORM FACTOR 1U
DIMENSION (W X H X L) 76 x 40 x 346mm
+5V N/A
+12V 75A
+3.3V N/A
5V STANDBY 4A
INPUT VOLTAGE RANGE 100-240V
INPUT FREQUENCY RANGE 50-60Hz
INPUT CURRENT RANGE 11-4.4A
OUTPUT TYPE Gold Finger (19 Pair Connector)
8PIN / 4PIN (12V) CONNECTOR N/A
PFC Yes
PMBUS Yes
ENERGY EFFICIENCY 91% Peak
80 PLUS CERTIFICATION 80 Plus Platinum
WARRANTY 1 year warranty
PRODUCT ENVIRONMENTAL COMPLIANCE RoHS and REACH compliant, details available upon request
