1029U-E1CRTP2
$2,744.00 Configured Summary
1029U-E1CRTP2
Supermicro 1U 10Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24x DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (1x LP, 1x internal LP)
  • 2x 10G SFP+ and 2 1GbE ports
  • 10x Hot-swap 2.5" drive bays: 10x SAS3/SATA3 ports via Expander and AOC
  • 8x heavy duty fans w/ optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+)
  • Virtualization, Cloud Computing, High End Enterprise Server
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU and 4 DIMM). Please contact our sales rep for special requirements.

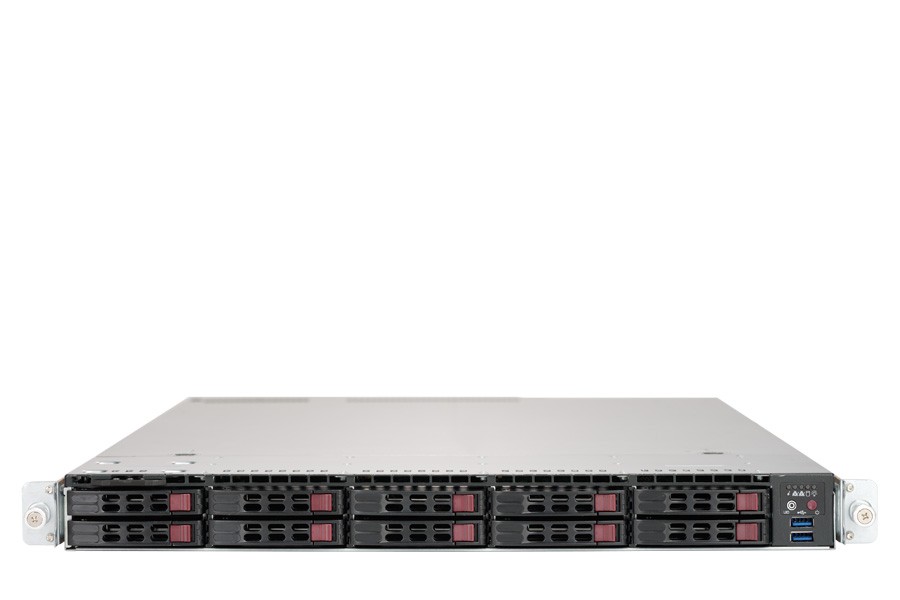

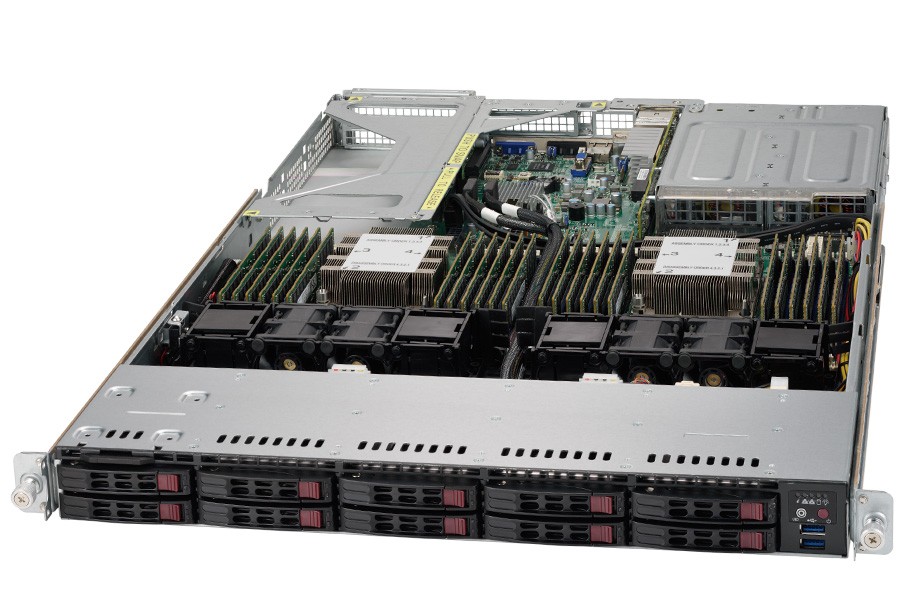

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-1029U-E1CRTP2
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
2666 ECC DDR4 NVDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
27.8" (707mm)

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity:
2 10G SFP+ ports and 2 1GbE ports via AOC-URN2-I4GXS-O (Intel X710-AM2 and Intel i350-AM2)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
10x Hot-swap 2.5" drives supported via expander
Expansion Slots
2x PCI-E 3.0 x16 (Full-height, 10.5" L)
2x PCI-E 3.0 x8 (1 LP, 1 internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input:

100-127Vac, 50-60Hz
200-240Vac, 50-60Hz
+12V:
Max: 62.5A & Min: 0A (100Vac-127Vac)
Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A
Min: 0A
Certification:
Platinum Level Certified
Input Output
SAS:
10x SAS3 ports support via expander and storage Add-on Cards
LAN:
2x 10G SFP+ ports
2x RJ45 Gigabit Ethernet ports
1x RJ45 Dedicated IPMI LAN port
USB:
5x USB 3.0 ports
(2x rear, 2x front, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port:
1x Serial header
Cooling
Fans:
8x heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud

Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
Redfish API
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
1029U-E1CRTP21029U-E1CRTP21029U-E1CRTP21029U-E1CRTP2

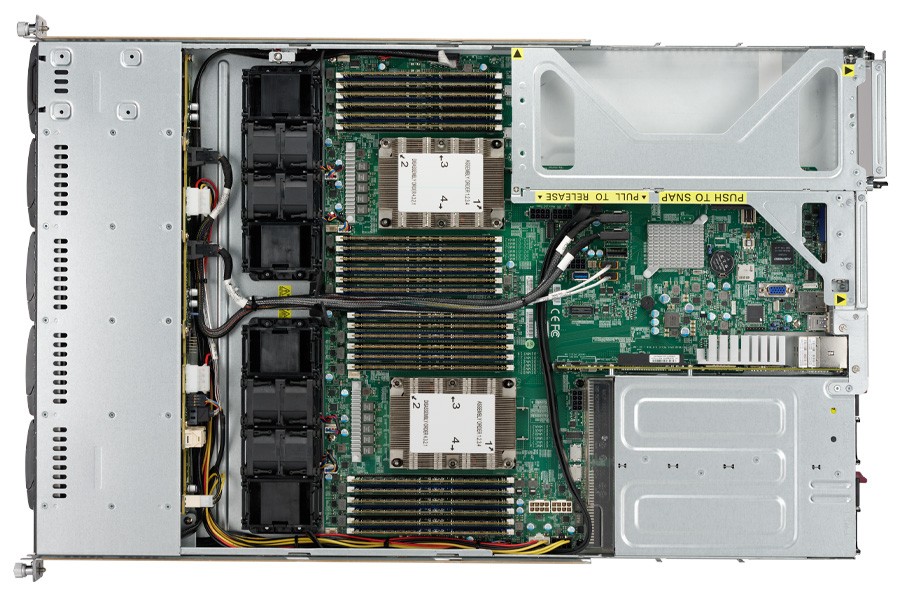

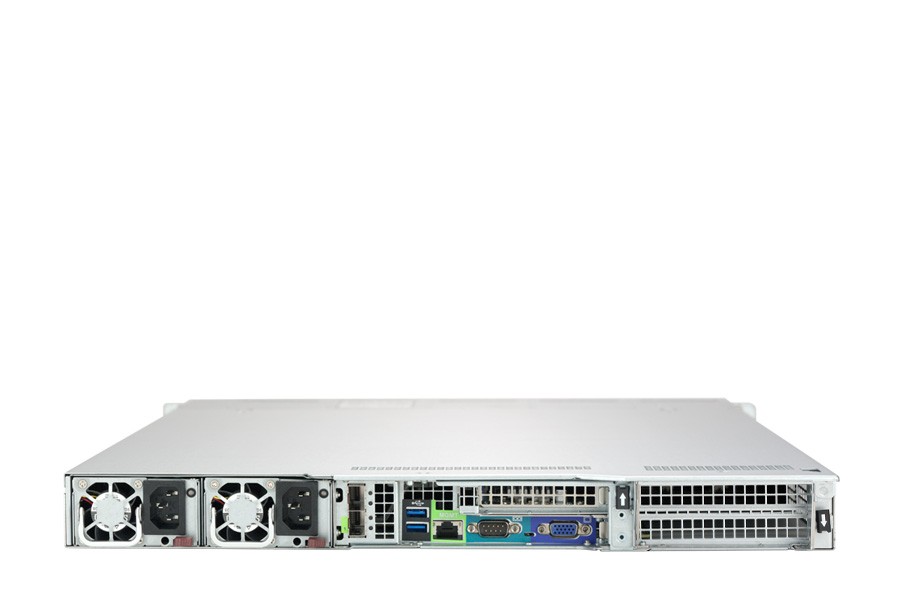

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $216.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $456.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $588.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $648.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $984.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,080.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $1,224.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,762.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,776.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $2,076.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $2,100.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $2,172.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,244.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,256.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,364.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $2,796.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,000.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,312.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $3,396.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,480.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $3,684.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $3,744.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $3,840.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $3,960.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,092.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,236.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,476.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $4,620.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,004.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,016.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $5,124.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,364.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $5,652.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $5,712.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $5,724.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,060.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,120.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $6,396.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,408.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,456.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $6,492.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $6,744.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $6,876.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,032.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $7,212.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,452.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $7,524.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $7,716.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,068.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,392.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,208.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $11,724.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $12,708.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $12,852.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,236.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,116.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $16,788.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,056.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $21,972.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $22,848.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $25,788.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $28,692.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
+ $24.00
16GB DDR4 2666 ECC Registered Memory
+ $268.00
16GB DDR4 2933 ECC RDIMM Memory
+ $324.00
32GB DDR4 2933 ECC RDIMM Memory
+ $364.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2933 ECC RDIMM Memory
+ $1,156.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
+ $59.00
2.5" SATA 6Gb/s 7200RPM 1TB
+ $215.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $384.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $242.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $316.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $346.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $541.00
2.5" SSD SATA 6Gb/s 256GB
+ $94.00
2.5" SSD SATA 6Gb/s 512GB
+ $160.00
2.5" SSD SATA 6Gb/s 1TB
+ $332.00
2.5" SSD SATA 6Gb/s 2TB
+ $564.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
