6019U-TR25M
$2,670.00 Configured Summary
6019U-TR25M
Supermicro 1U 4Bays Dual 2nd Gen Sacalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x16 slot (internal LP)
  • 2 25GbE SFP28 Ethernet ports
  • 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports
  • 8 Heavy duty fans w/ optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+)
  • Virtualization, Cloud Computing, High End Enterprise Server

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays
4x SATA3 (optional SAS3 via AOC)
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

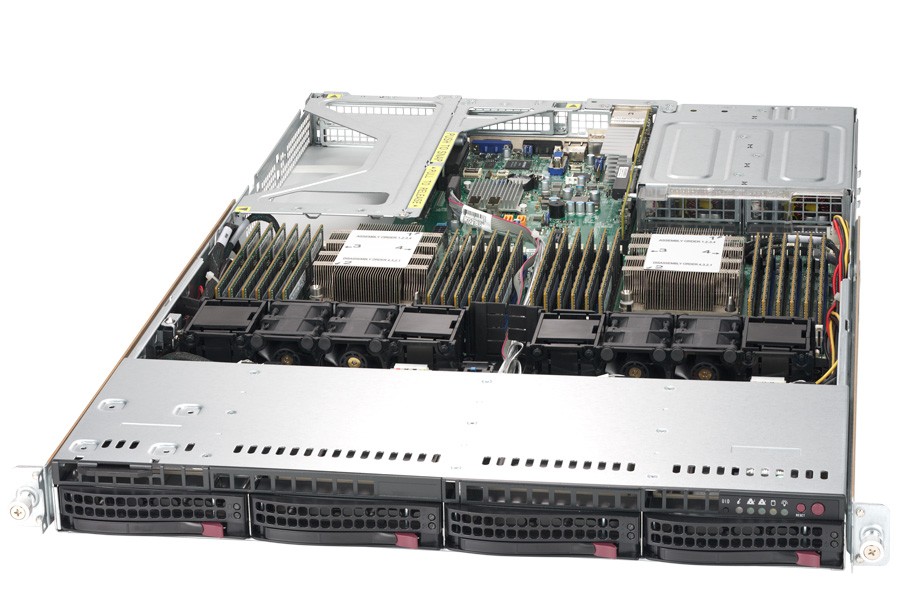

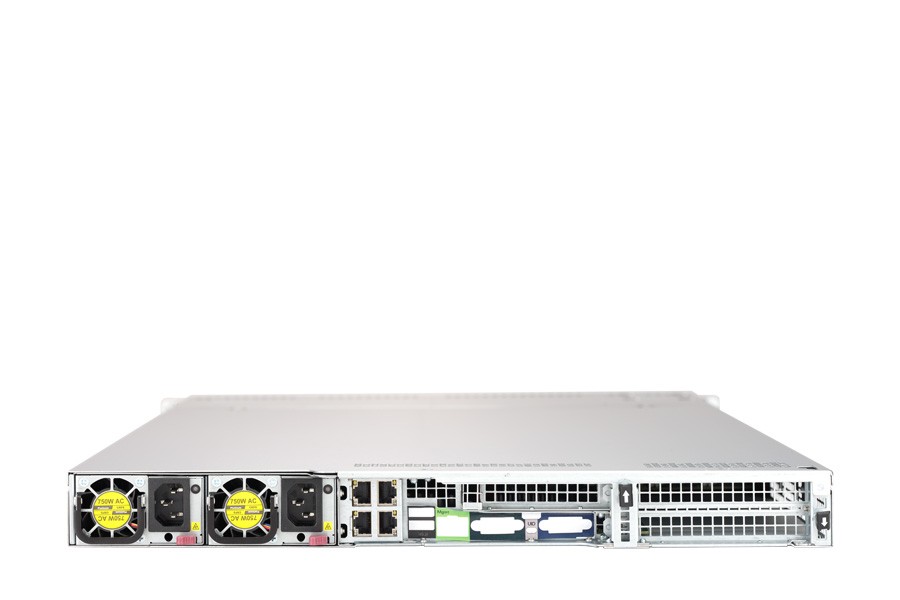

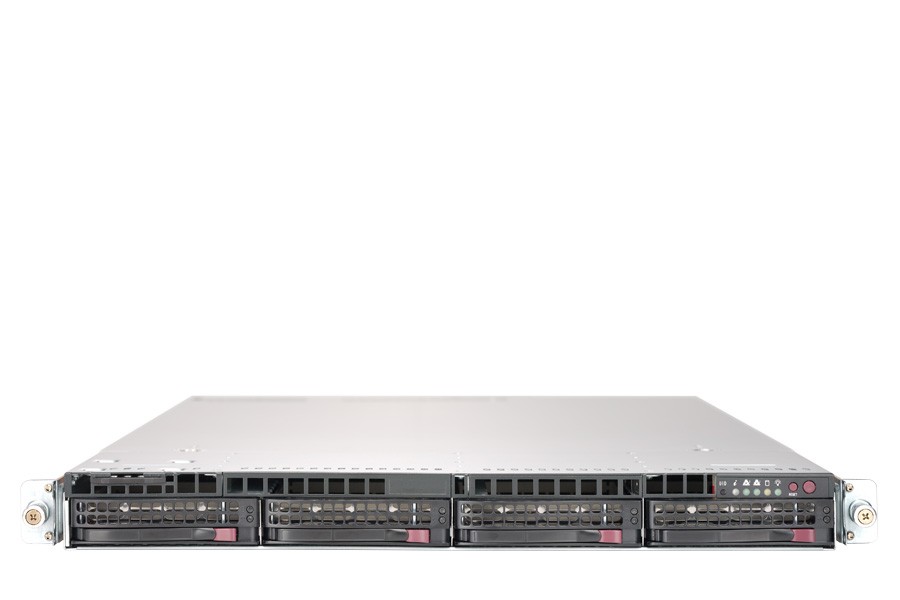

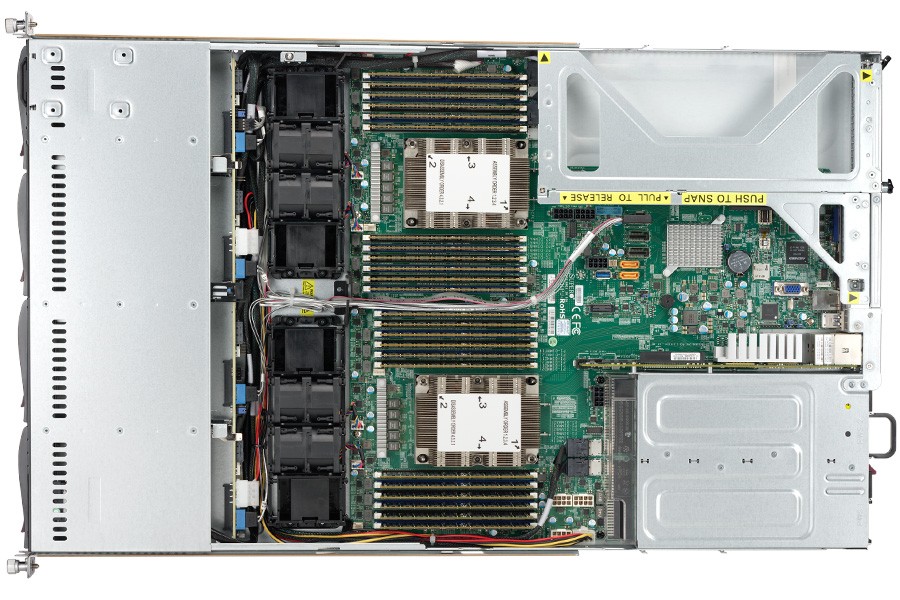

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-6019U-TR25M
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
2666 ECC DDR4 NVDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29" (737mm)

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM

Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity:
2x 25GbE SFP28 ports via AOC-URN4-M2TS-O (Mellanox ConnectX-4 Lx EN)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
4x Hot-swap 3.5" drive bays
4x SATA3 (optional SAS3 via AOC)

Expansion Slots
2x PCI-E 3.0 x16 (Full-height, 10.5" L)
1x PCI-E 3.0 x8 (Low-profile)
1x PCI-E 3.0 x16 (internal Low-profile)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input:

100-127Vac, 50-60Hz
200-240Vac, 50-60Hz
+12V:
Max: 62.5A & Min: 0A (100Vac-127Vac)
Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A
Min: 0A
Certification:
Platinum Level Certified
Input Output
SATA:
4x SATA3 (6Gbps) ports
LAN:
2x 25GbE SFP28 ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2x rear, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port:
1x Serial header
DOM:
2x SATA DOM (Disk on Module) support with embedded power
Cooling
Fans:
8x heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud

Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
6019U-TR25M6019U-TR25M6019U-TR25M6019U-TR25M
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $238.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $674.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $1,170.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $1,450.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $2,166.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $2,406.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $3,038.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $2,142.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $3,150.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $2,466.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $5,408.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $3,678.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $5,226.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $6,920.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $5,606.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $7,278.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $7,590.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $8,412.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $5,790.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $214.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $285.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $349.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $361.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $436.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $477.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $577.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $221.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $261.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $281.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $315.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $348.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $376.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $429.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $490.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $564.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $160.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $174.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $223.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $229.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $299.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $306.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $359.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $381.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $456.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $484.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $147.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $188.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $209.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $264.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $331.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $349.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $389.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $399.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $466.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $499.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2651
1
2060.0000
