2029TP-HC1R
$5,463.00 Configured Summary
2029TP-HC1R

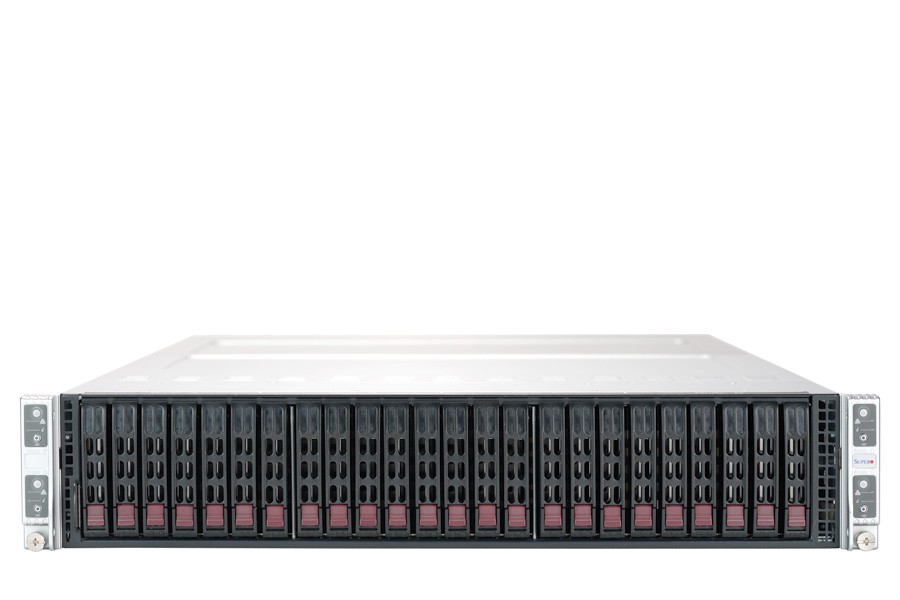

Supermicro 2U 4Nodes 24Bays Dual 2nd Gen Scalable Processor Rackmount Server

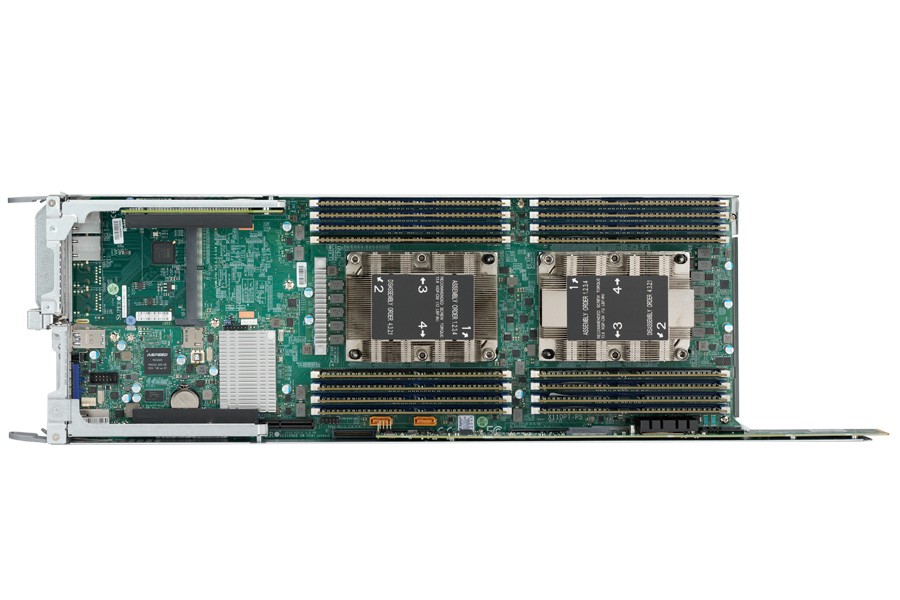

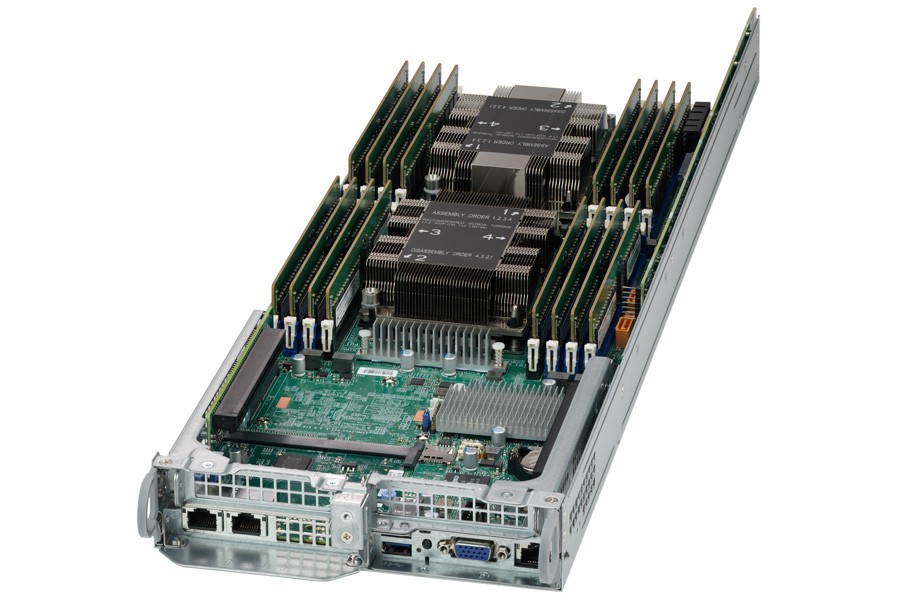

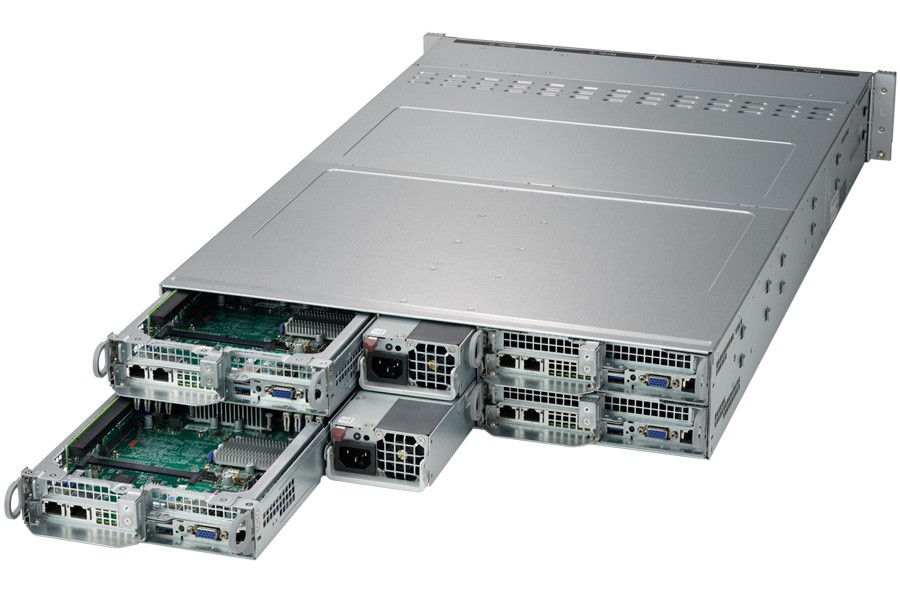

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 (LP) slots
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • Broadcom 3108 SAS3 controller; RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap option
  • Up to 2200W Redundant Power Supplies Titanium Level (96%)
  • Compute Intensive Application, HPC, Data Center, Enterprise Server, Financial Analysis, Mission-critical applications
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-2029TP-HC1R
Processor
(per Node)
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W
Cores:
Up to 28 Cores
Note:
Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
(per Node)
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.

Chassis
2U Rackmount Chassis
Dimensions
Width:
17.25" (438mm)
Height:
3.47" (88mm)
Depth:
28.5" (724mm)

Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 6, 10, 50 support
Optional SuperCap
Network Controllers:
Must bundle with at least one SIOM network card
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
24x Hot-swap 2.5" SAS/SATA HDD trays
Expansion Slots
(per Node)
2x PCI-E 3.0 x16 Low-profile slots
1x SIOM card support
Note: Must bundle with Network Card
(Both CPUs need to be installed for full access to PCI-E slots)

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input:
1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2090W with Input 200-220Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency:
50-60Hz
Dimension (W x H x L):
76 x 40 x 336 mm
+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB:
Max: 1A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Titanium Level
UL/cUL/CB/BSMI/CE/CCC

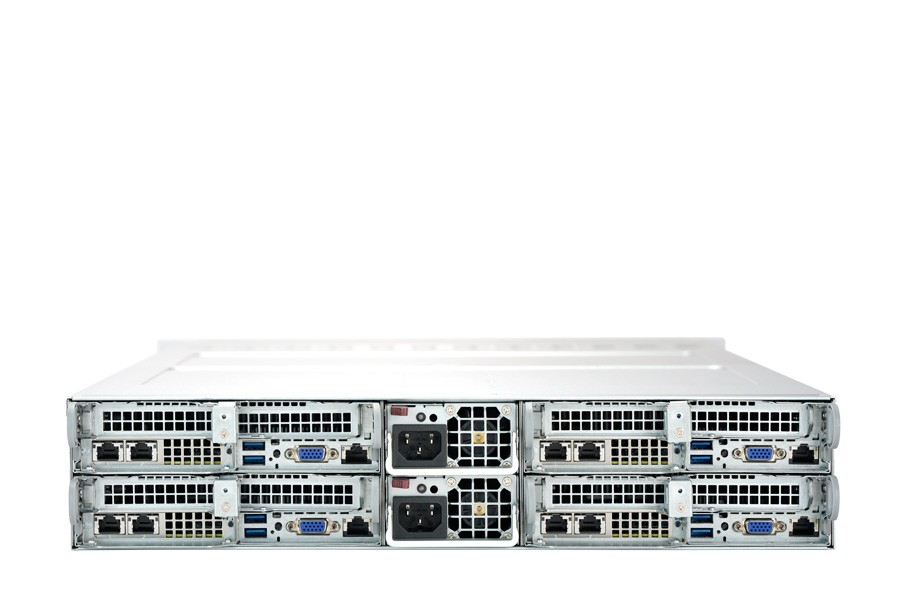

Input Output
(per Node)
SAS:

6x SAS3 (12Gbps) ports
LAN:
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
VGA:
1x VGA port
Serial Port / Header:
1x Fast UART 16550 port / 1 Header (internal)
Others:
2x SATADOM support on the motherboard
Cooling
4x Heavy duty 8cm PWM fans with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
2029TP-HC1R2029TP-HC1R2029TP-HC1R2029TP-HC1R2029TP-HC1R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $492.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $612.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $881.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,038.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,050.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,086.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,398.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,542.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,698.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,310.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,562.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,862.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,198.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,606.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
16GB DDR4 2666 ECC Registered Memory
+ $92.00
16GB DDR4 2933 ECC RDIMM Memory
+ $104.00
32GB DDR4 2666 ECC Registered Memory
+ $400.00
32GB DDR4 2933 ECC RDIMM Memory
+ $412.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $852.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,100.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $1,232.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-2nd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $63.00
8GB DDR4 2933 ECC RDIMM Memory
+ $63.00
16GB DDR4 2666 ECC Registered Memory
+ $86.00
16GB DDR4 2933 ECC RDIMM Memory
+ $89.00
32GB DDR4 2666 ECC Registered Memory
+ $163.00
32GB DDR4 2933 ECC RDIMM Memory
+ $166.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $338.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $371.00
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-3rd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $63.00
8GB DDR4 2933 ECC RDIMM Memory
+ $63.00
16GB DDR4 2666 ECC Registered Memory
+ $86.00
16GB DDR4 2933 ECC RDIMM Memory
+ $89.00
32GB DDR4 2666 ECC Registered Memory
+ $163.00
32GB DDR4 2933 ECC RDIMM Memory
+ $166.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $338.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $371.00
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-4th Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $63.00
8GB DDR4 2933 ECC RDIMM Memory
+ $63.00
16GB DDR4 2666 ECC Registered Memory
+ $86.00
16GB DDR4 2933 ECC RDIMM Memory
+ $89.00
32GB DDR4 2666 ECC Registered Memory
+ $163.00
32GB DDR4 2933 ECC RDIMM Memory
+ $166.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $338.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $371.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $183.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $257.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $287.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $482.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2653
1
4894.0000
