6029TP-HC1R
$5,551.00 Configured Summary
6029TP-HC1R

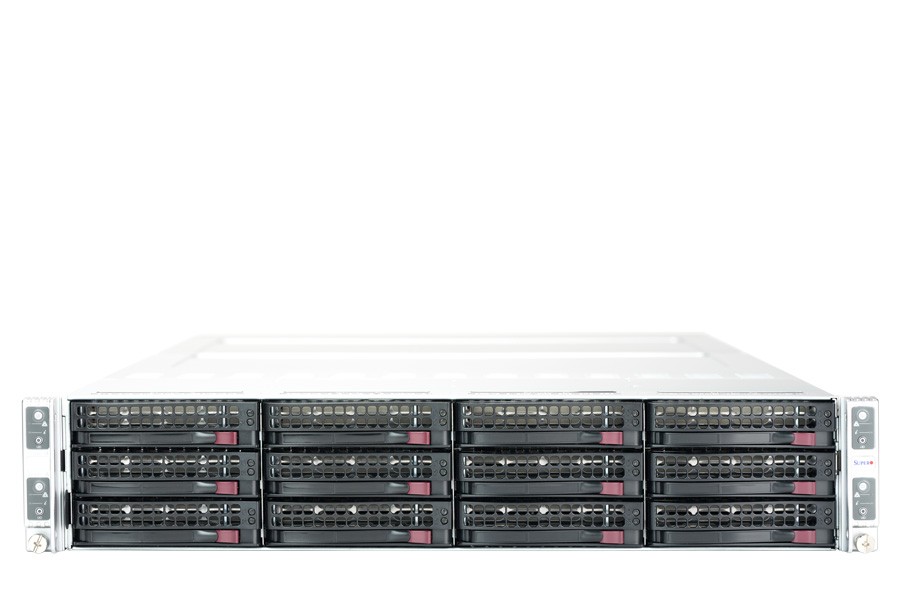

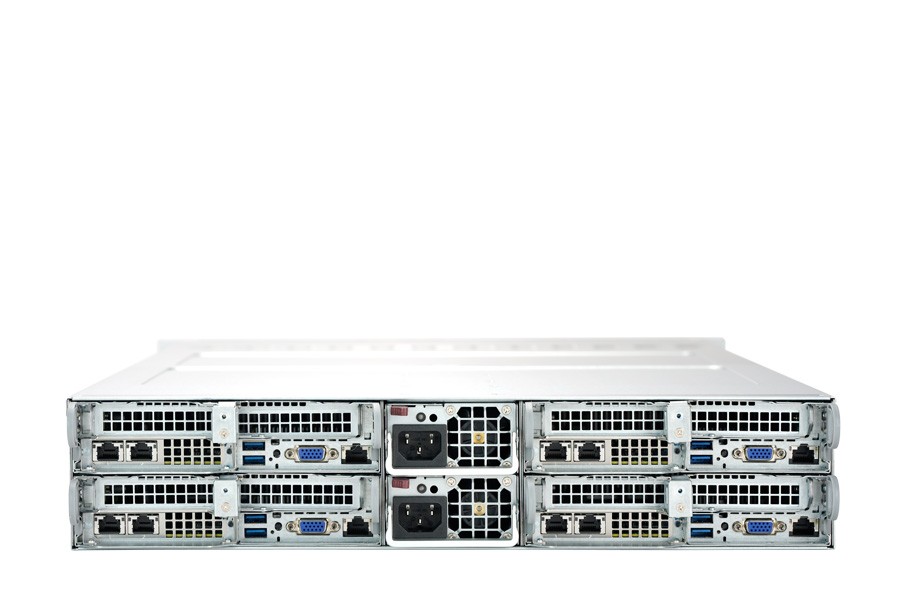

Supermicro 2U 4Nodes 12Bays Dual Scalable Processor Server

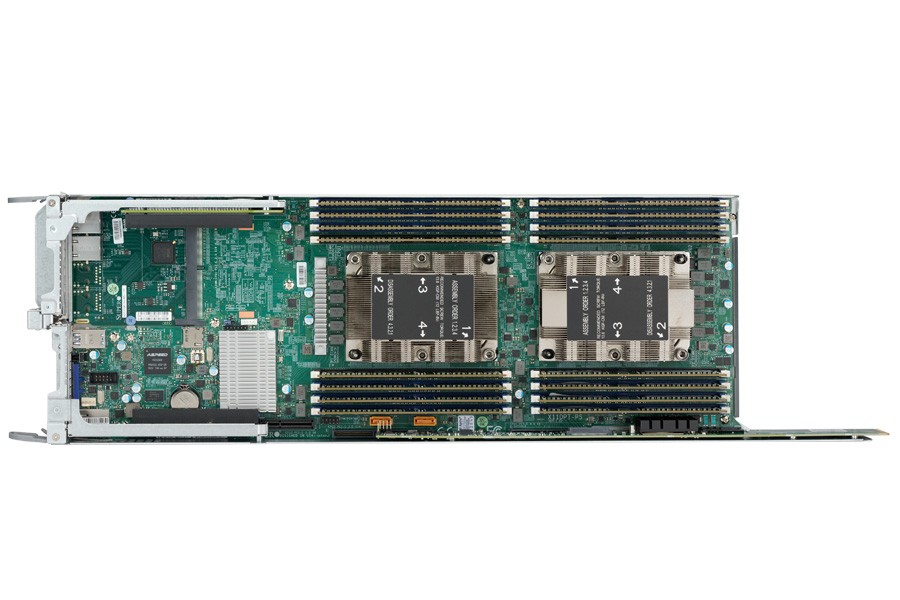

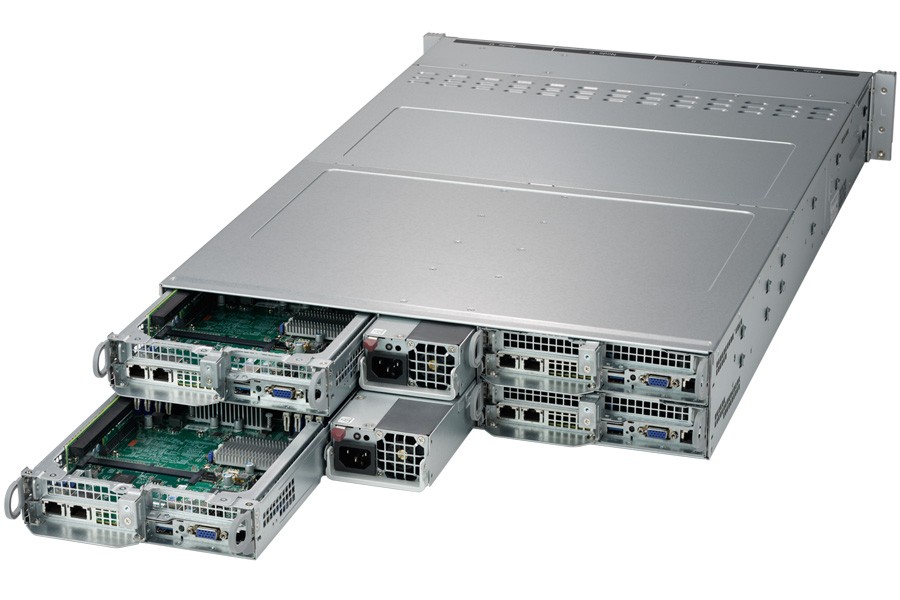

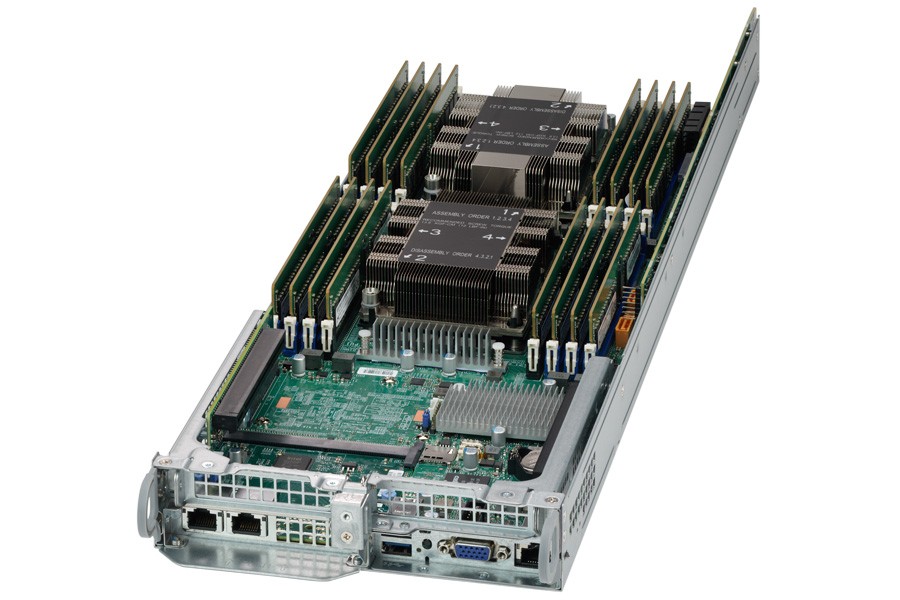

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 2x PCI-E 3.0 x16 slots
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 3x Hot-swap 3.5" SAS/SATA drive bays
  • Broadcom 3108 SAS3 controller; RAID 0, 1, 5, 6, 10, 50 w/ SuperCap opt.
  • Mini-mSATA (half size) support
  • 2200W Redundant Power Supplies Titanium Level (96%)
  • Compute Intensive Application, HPC, Data Center, Enterprise Server, Financial Analysis, Mission-critical applications
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-6029TP-HC1R
Processor
(per Node)
CPU:

Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology

Memory
(per Node)
Memory Capacity:

16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM

Chassis
2U Rackmount Chassis
Dimensions
Width:
17.25" (438mm)
Height:
3.47" (88mm)
Depth:
28.5" (724mm)

Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB SPI Flash ROM

Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
Broadcom 3108 SAS3 (12Gbps) controller;
RAID 0, 1, 5, 6, 10, 50 support
Network Controllers:
Must bundle with at least one SIOM network card
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
12x Hot-swap 3.5" SATA3 HDD trays
Expansion Slots
(per Node)
2x PCI-E 3.0 x16 Low-profile slots
1x SIOM card support
Note: Must bundle with Network Card

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input:

1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2090W with Input 200-220Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency:
50-60Hz
Dimension (W x H x L):
76 x 40 x 336 mm
+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB:
Max: 1A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
(per Node)
SAS:

3x SAS3 (12Gbps) ports
LAN:
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports total (rear)
VGA:
1x VGA port
Serial Port / Header:
1x Fast UART 16550 port / 1x Header (internal)
Others:
2x SATADOM support on the motherboard
Cooling
4x Heavy duty 8cm PWM fans with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
6029TP-HC1R6029TP-HC1R6029TP-HC1R6029TP-HC1R6029TP-HC1R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $268.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-2nd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $89.00
16GB DDR4 2666 ECC Registered Memory
+ $156.00
32GB DDR4 2666 ECC Registered Memory
+ $231.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $499.00
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-3rd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $89.00
16GB DDR4 2666 ECC Registered Memory
+ $156.00
32GB DDR4 2666 ECC Registered Memory
+ $231.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $499.00
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-4th Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $89.00
16GB DDR4 2666 ECC Registered Memory
+ $156.00
32GB DDR4 2666 ECC Registered Memory
+ $231.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $499.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
+ $49.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $104.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $145.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $244.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $305.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $61.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $116.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $209.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $257.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $330.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2656
1
4847.0000
