6029U-TRTP
$2,080.00 Configured Summary
6029U-TRTP
Supermicro 2U 12Bays Dual Scalable Processor Rackmount Server

  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 1x PCI-E 3.0 x16 slot (FH, 10.5" L), 5x PCI-E 3.0 x8 slots (FH, 10.5" L), 1x PCI-E 3.0 x8 slot (LP), 1x PCI-E 3.0 x8 slot (internal LP)
  • 2x 10G SFP+ Ethernet ports
  • 12x Hot-swap 3.5" drive bays: 12x SATA (opt. 8x SAS3 + 4x NVMe/SAS3)
  • 4x Heavy duty 8cm fans
  • 1000W High efficiency (96%) Redundant PSU; Titanium Level
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server, Flexible Networking Options
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU and 4 DIMM). Please contact our sales rep for special requirements.

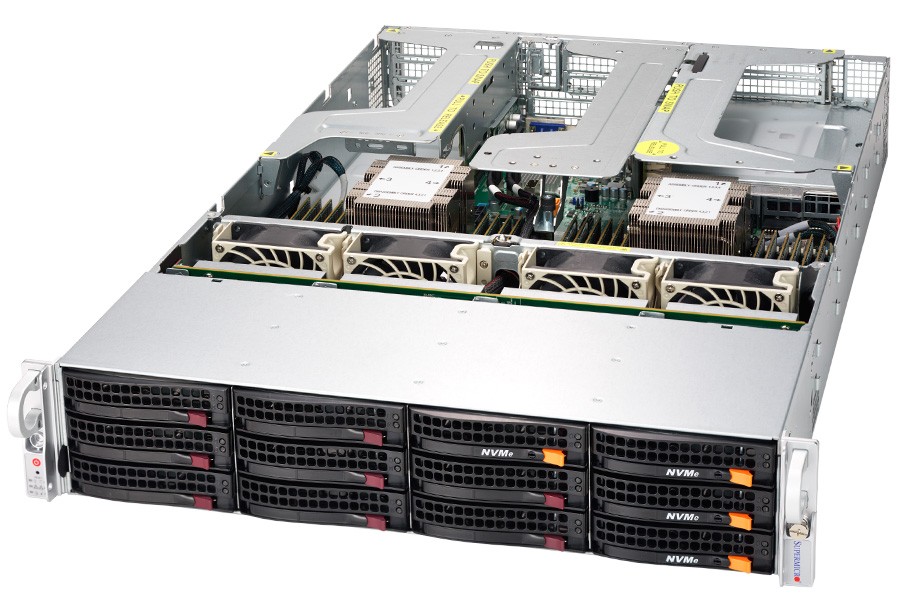

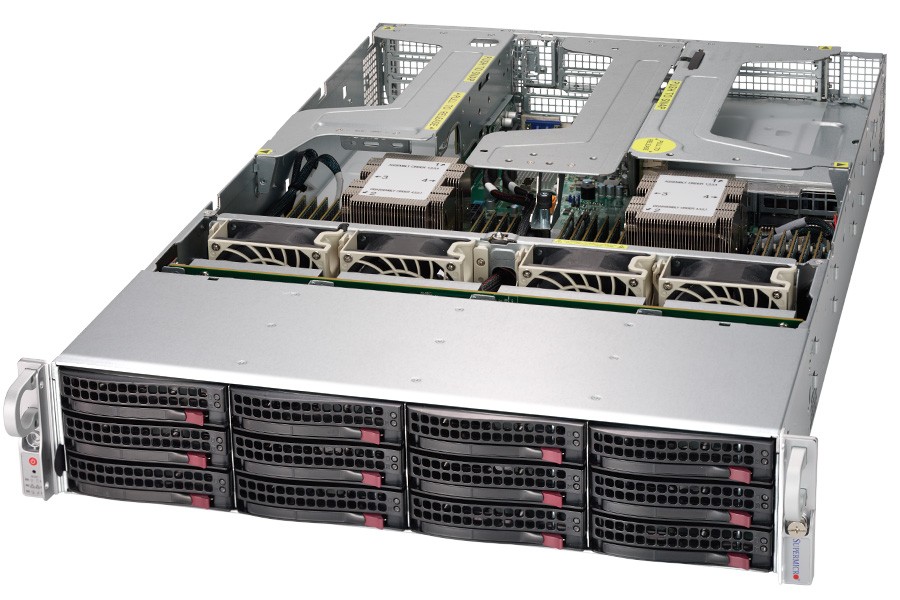

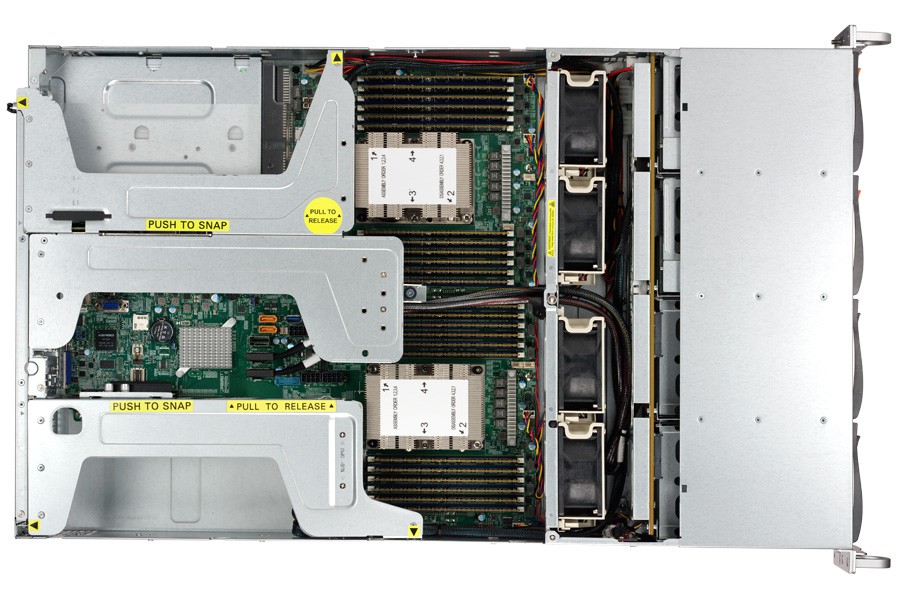

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-6029U-TRTP
Processor
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology

Memory
Memory Capacity:
24 DIMM slots
Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM

Chassis
2U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
28.46" (723mm)

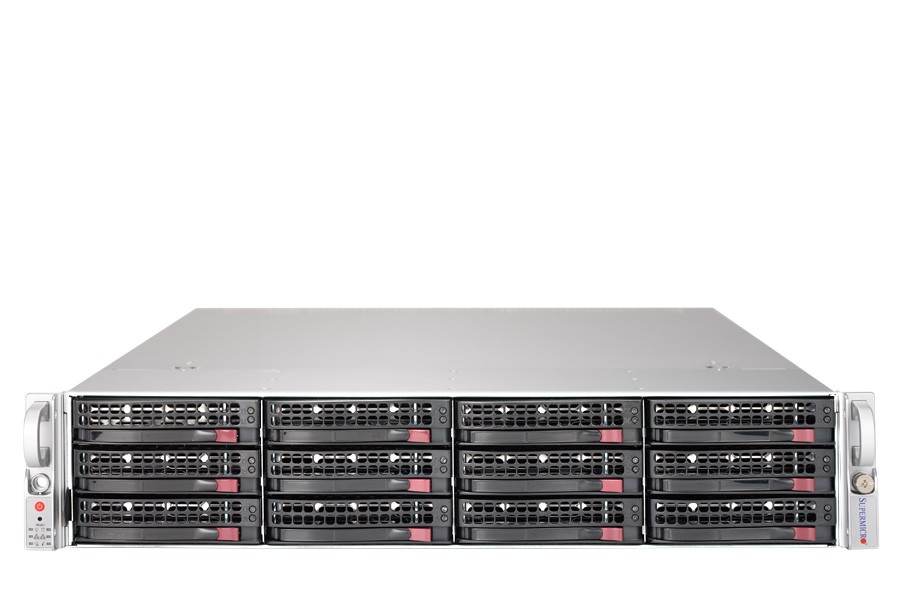

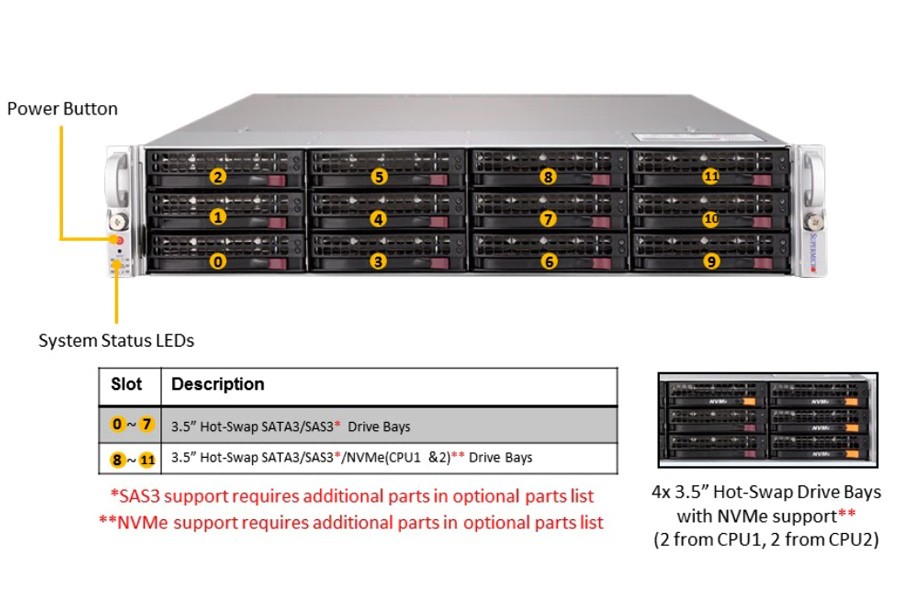

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM

Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity:
2x 10G SFP+ ports via AOC-2UR68-I2XS (Intel® 82599ES)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
12x Hot-swap 3.5" drive bays
12x SATA3 ports by default;
Optional 8 SAS3 + 4 NVMe/SAS3
Backplane:
2U SAS/SATA backplane

Expansion Slots
1x PCI-E 3.0 x16 (FH, 10.5" L)
5x PCI-E 3.0 x8 (FH, 10.5" L)
1x PCI-E 3.0 x8 (LP)
1x PCI-E 3.0 x8 (internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:

800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

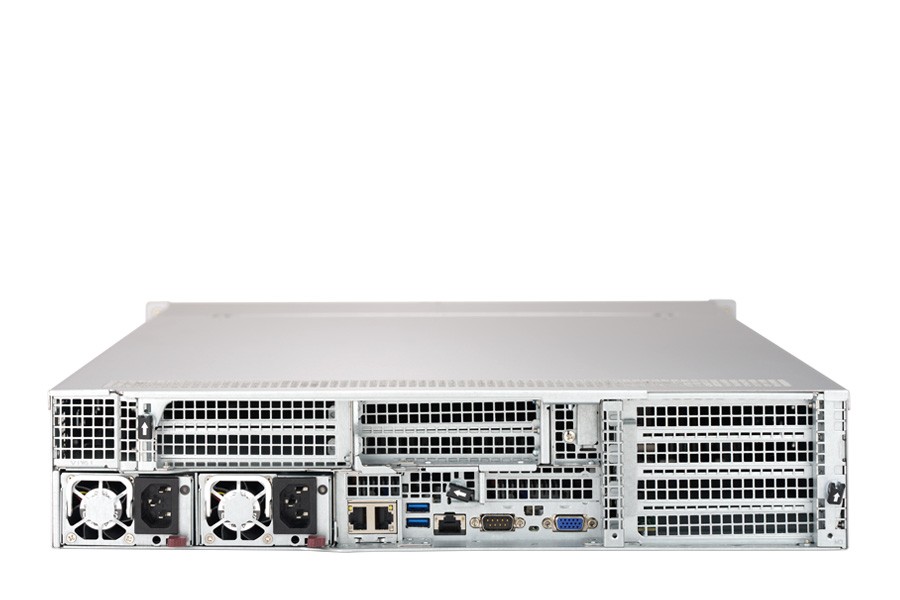

Input Output
SATA:
12x SATA3 (6Gbps) ports
SAS:
8x SAS3 + 4x SAS3/NVMe support optional
LAN:
2x 10G SFP+ ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2x rear, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port / Header:
1x Serial header
DOM:
2x SuperDOM (Disk on Module) ports
Cooling
4x Heavy duty 8cm PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
