6029U-E1CRT
$3,169.00 Configured Summary
6029U-E1CRT
Supermicro 2U 12Bays Dual Scaalble Processor Rackmount Server

  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 1x PCI-E 3.0 x16 slot (FH, 10.5" L), 5x PCI-E 3.0 x8 slots (FH, 10.5" L), 1x PCI-E 3.0 x8 slot (LP), 1x PCI-E 3.0 x8 slot (internal LP)
  • 2x 10GBase-T LAN ports via Intel X540
  • 12x Hot-swap 3.5" drive bays: 12x SAS3 via opt. AOC (4x hybrid ports - opt. 4x NVMe)
  • 4x Heavy duty 8cm PWM fans
  • 1000W High efficiency (96%) Redundant PSU; Titanium Level
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server, Flexible Networking Options
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU and 4 DIMM). Please contact our sales rep for special requirements.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-6029U-E1CRT
Processor
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology

Memory
Memory Capacity:
24 DIMM slots
Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM

Chassis
2U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
28.46" (723mm)

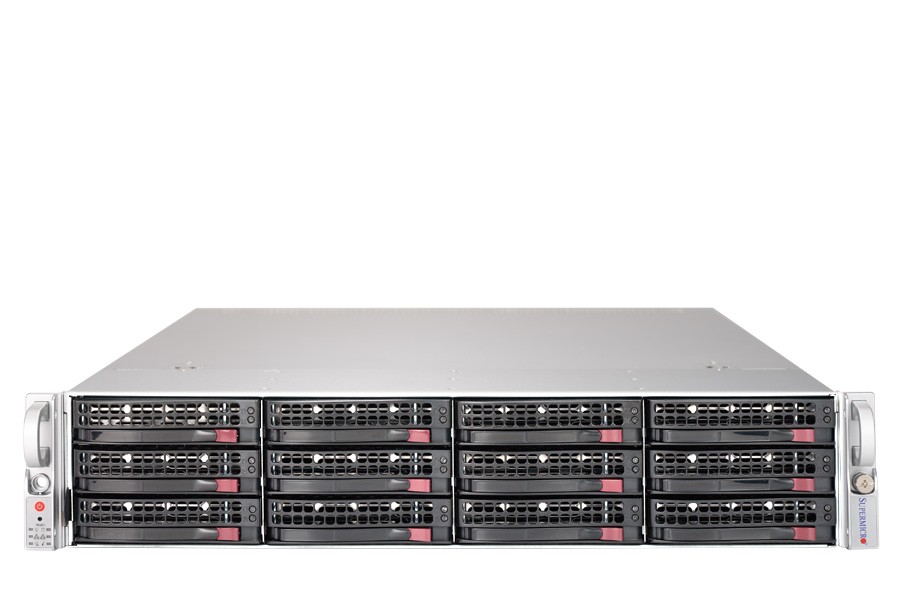

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM

Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity:
2x 10GBase-T ports via AOC-2UR68-I2XT (Intel X540)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC

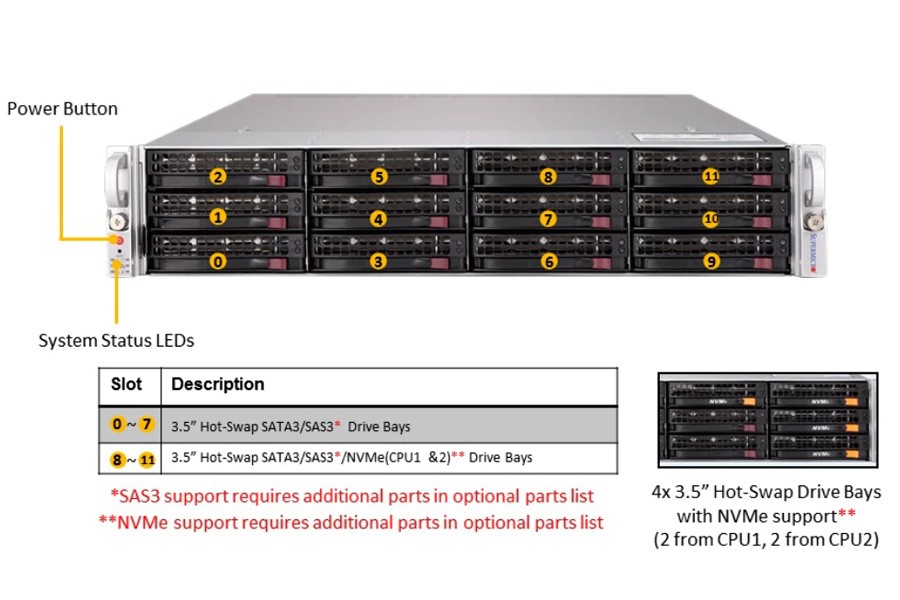

HDD Drive Bays
12 Hot-swap 3.5" drive bays
12 SAS3 via opt. AOC
(4 hybrid ports - opt. 4 NVMe)
Note: Storage Add-on card is required
Backplane:
2U SAS/SATA backplane

Expansion Slots
1x PCI-E 3.0 x16 (FH, 10.5" L)
5x PCI-E 3.0 x8 (FH, 10.5" L)
1x PCI-E 3.0 x8 (LP)
1x PCI-E 3.0 x8 (internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:

800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

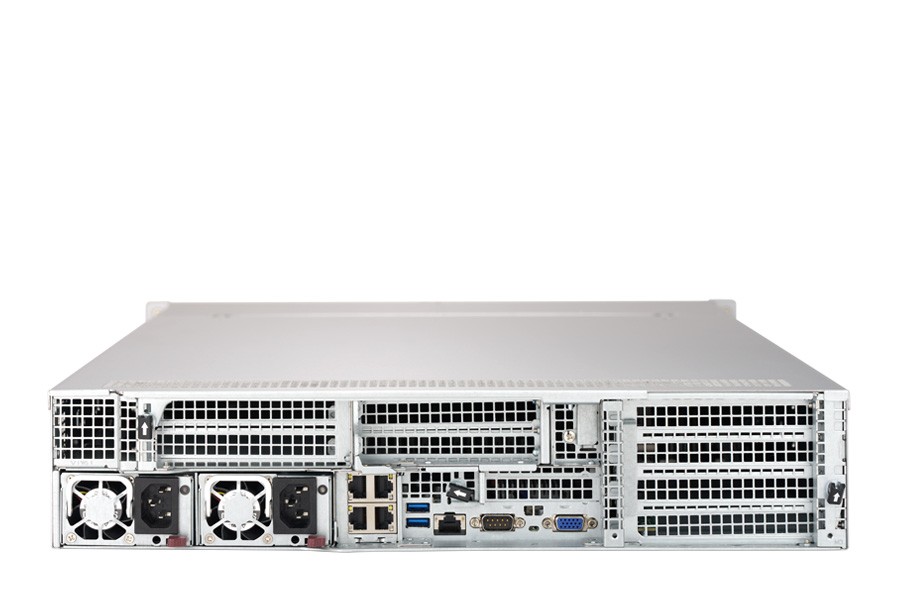

Input Output
SAS:
12x SAS3 ports via expander and AOC
LAN:
2x RJ45 10GBase-T Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2x rear, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port / Header:
1x Serial header
DOM:
2x SuperDOM (Disk on Module) ports
Cooling
4x Heavy duty 8cm PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
6029U-E1CRT6029U-E1CRT6029U-E1CRT6029U-E1CRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $216.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $456.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $588.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $648.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $1,080.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,776.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $2,244.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $2,256.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $2,364.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $3,000.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $3,312.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $3,480.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $3,684.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $3,744.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $3,840.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $3,960.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $4,092.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $4,236.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,476.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,004.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,016.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $5,364.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $5,652.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $5,712.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $6,060.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $6,408.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $6,456.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $6,492.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $6,744.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $6,876.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $7,032.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $7,452.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $7,716.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $10,068.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $10,392.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $11,208.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $11,724.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $12,708.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $12,852.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $13,236.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $15,228.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $16,116.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $16,788.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $19,056.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $21,972.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $22,848.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $25,788.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $28,692.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $268.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
+ $49.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $104.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $145.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $244.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $305.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $61.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $116.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $209.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $257.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $330.00
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
3.5" SATA 6Gb/s 7200RPM 1TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 2TB
+ $139.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $180.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $194.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $235.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $334.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $395.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $151.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $206.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $299.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $347.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $420.00
2.5" PCIe 3.0 NVMe SSD 400GB
+ $663.00
2.5" PCIe 3.0 NVMe SSD 800GB
+ $1,332.00
2.5" PCIe 3.0 NVMe SSD 1.2TB
+ $1,664.00
2.5" PCIe 3.0 NVMe SSD 2TB
+ $2,795.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
