6029U-E1CR25M

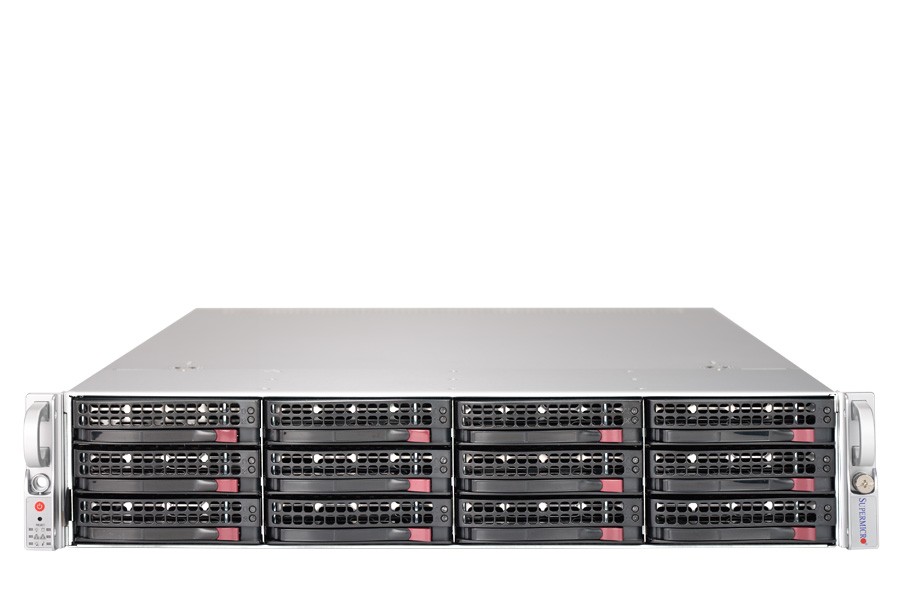

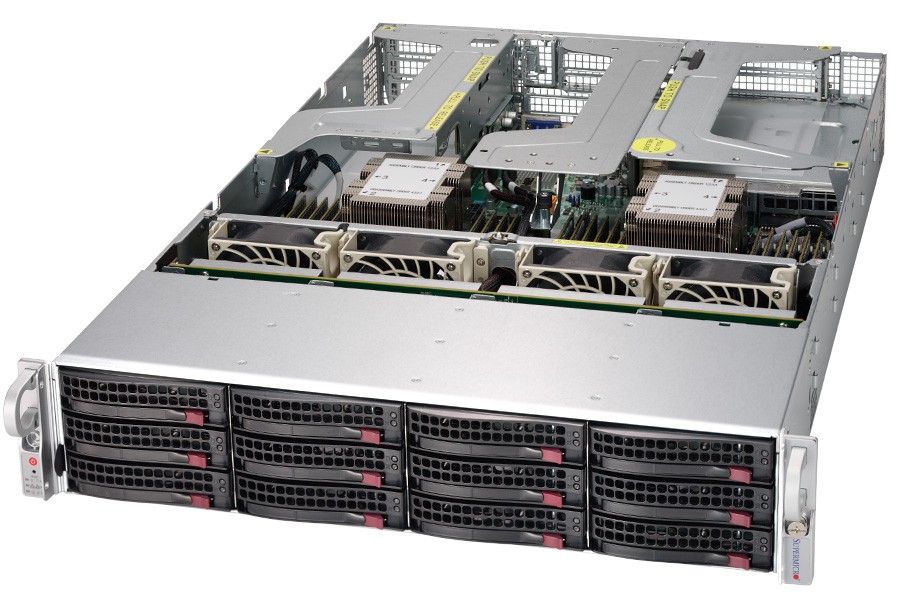

Supermicro 2U 12Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot (internal LP)
  • 2 25GbE SFP28 Ethernet ports
  • 12 Hot-swap 3.5" drive bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
  • 4 Heavy duty 8cm PWM fans
  • 1000W High efficiency (96%) Redundant PSU; Titanium Level
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server, Flexible Networking Options

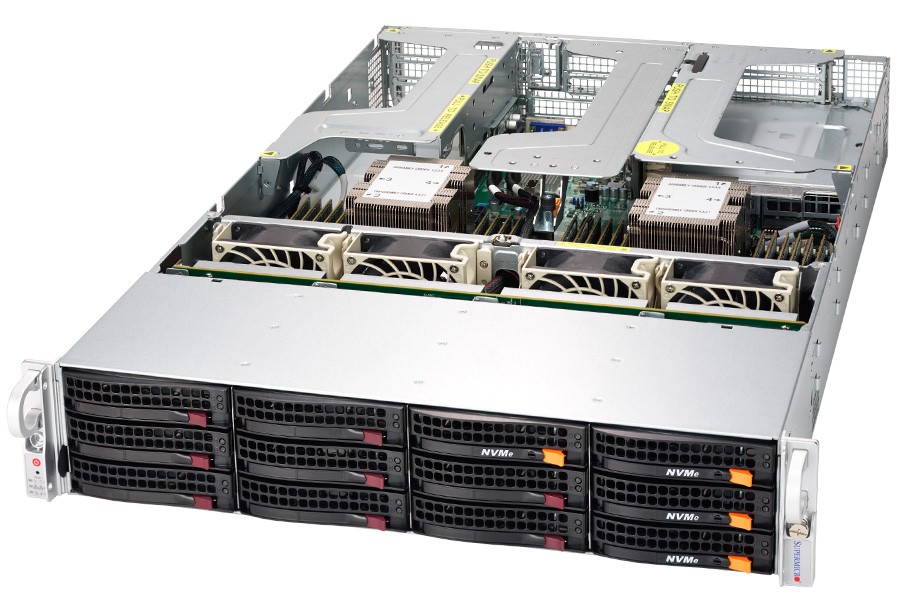

Storage configuration notice:
Hot-swap:
12x Hot-swap 3.5" drive bays
12x SAS3 via opt. AOC
(4x hybrid ports - opt. 4x NVMe)
Note: Storage Add-on card is required
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-6029U-E1CR25M
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
2666 ECC DDR4 NVDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
28.46" (723mm)

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM

Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity:
2x 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC

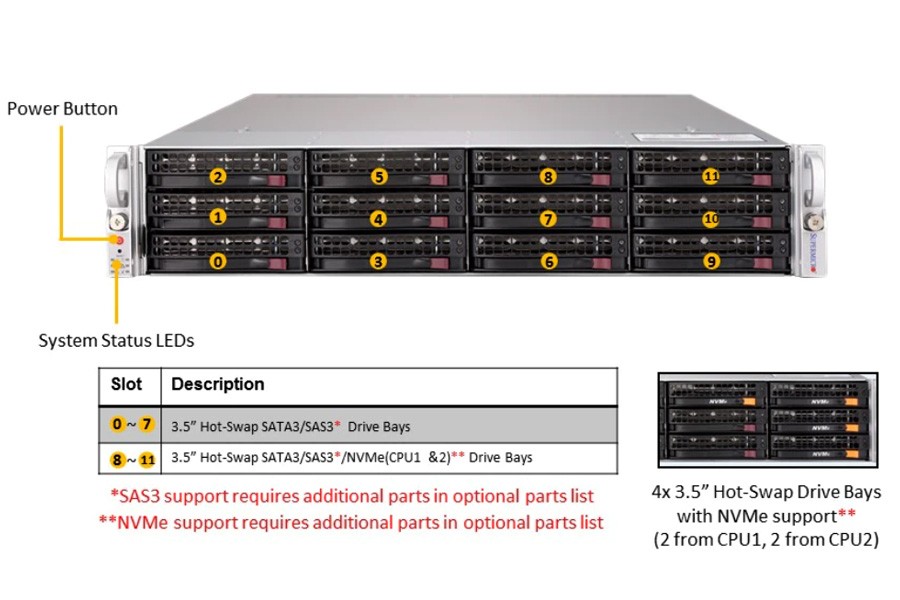

HDD Drive Bays
12x Hot-swap 3.5" drive bays
12x SAS3 via opt. AOC
(4x hybrid ports - opt. 4x NVMe)
Note: Storage Add-on card is required
Backplane:
2U SAS/SATA backplane

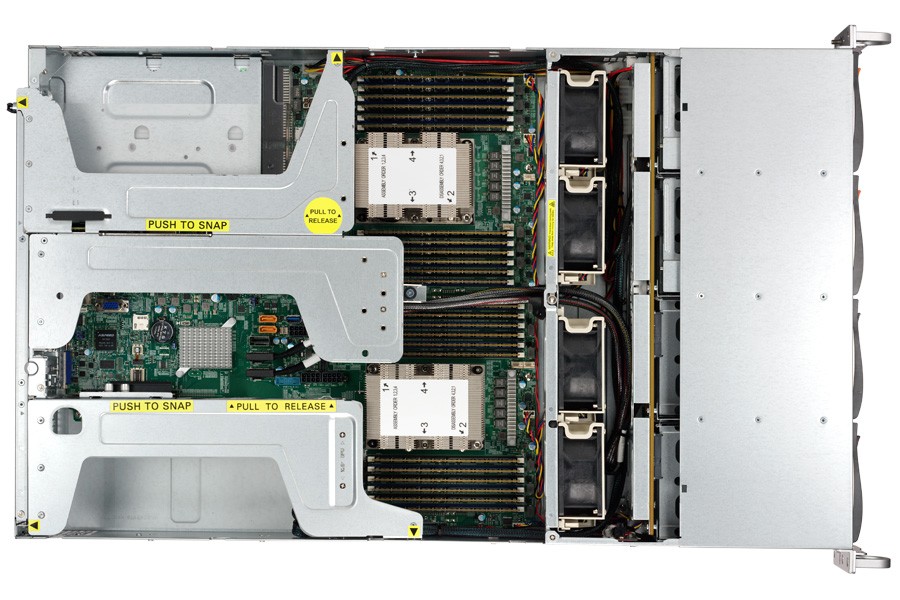

Expansion Slots
1x PCI-E 3.0 x16 (FH, 10.5" L)
5x PCI-E 3.0 x8 (FH, 10.5" L)
1x PCI-E 3.0 x8 (LP)
1x PCI-E 3.0 x8 (internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:

800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

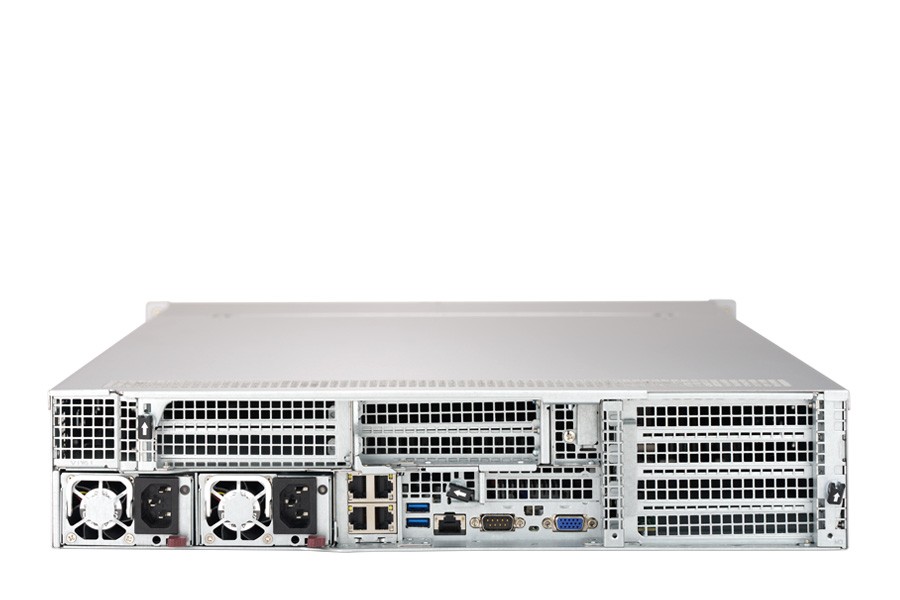

Input Output
SAS:
12x SAS3 ports via expander and AOC
LAN:
2x 25GbE SFP28 ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2x rear, 1x Type A)
Video:
2x VGA ports (1x rear, 1x onboard)
Serial Port / Header:
1x Serial header
DOM:
2x SuperDOM (Disk on Module) ports
Cooling
4x Heavy duty 8cm PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
