F619P2-RTN
$16,165.00 Configured Summary
F619P2-RTN

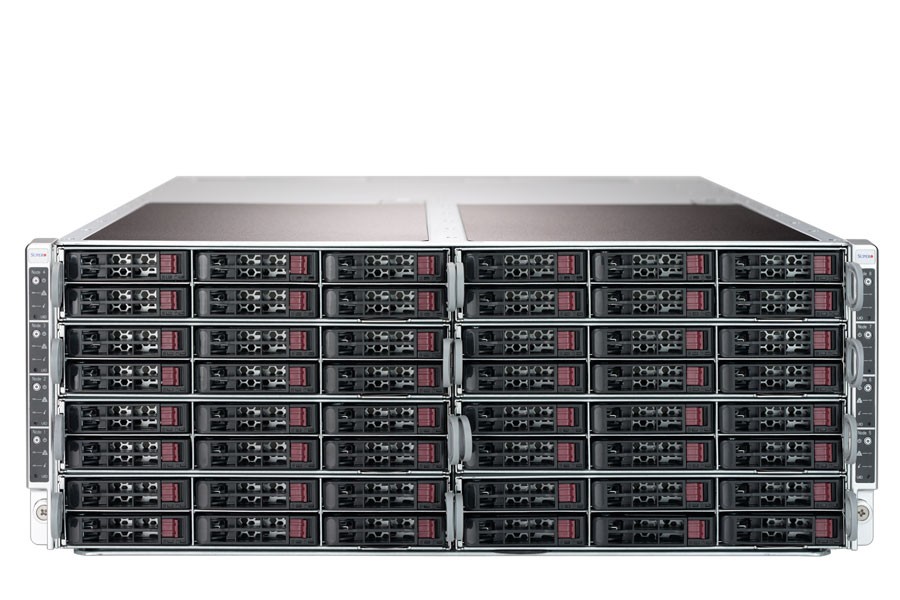

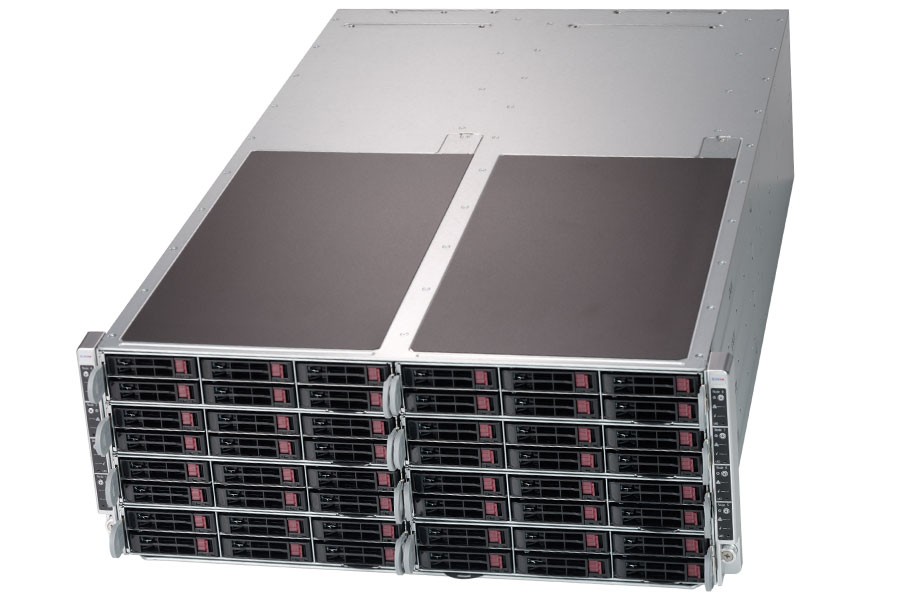

Supermicro 4U 8Nodes 48Bays Dual 2nd Gen Scalable Processor FatTwin Server

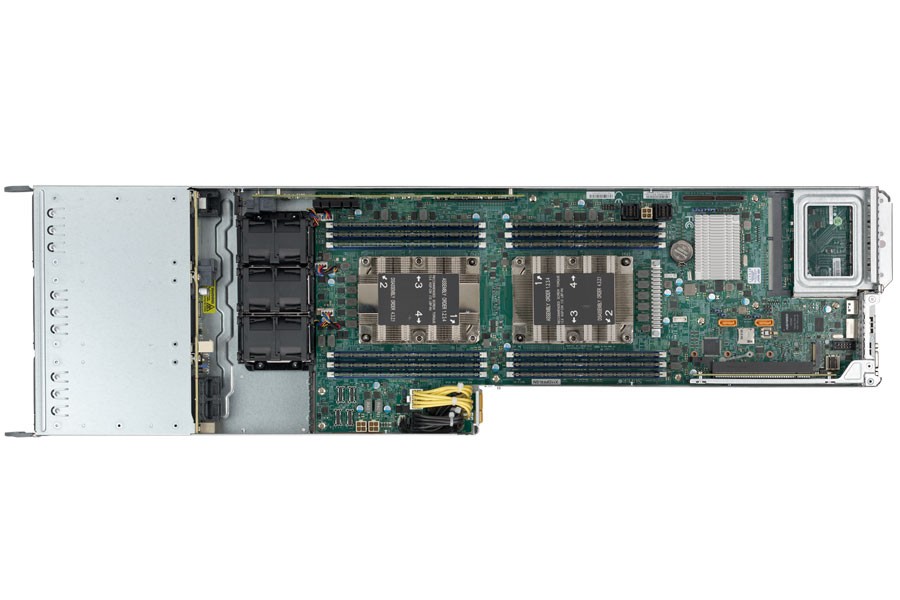

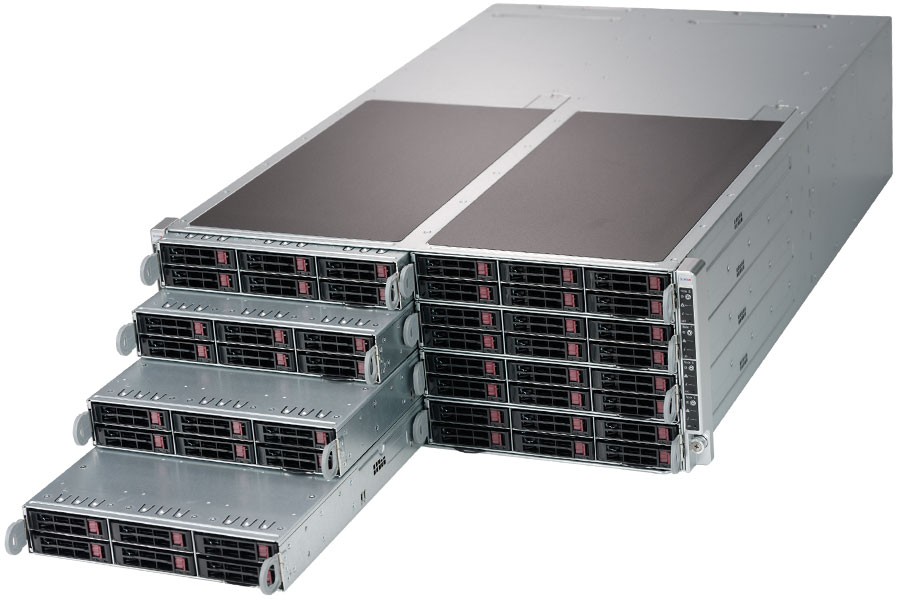

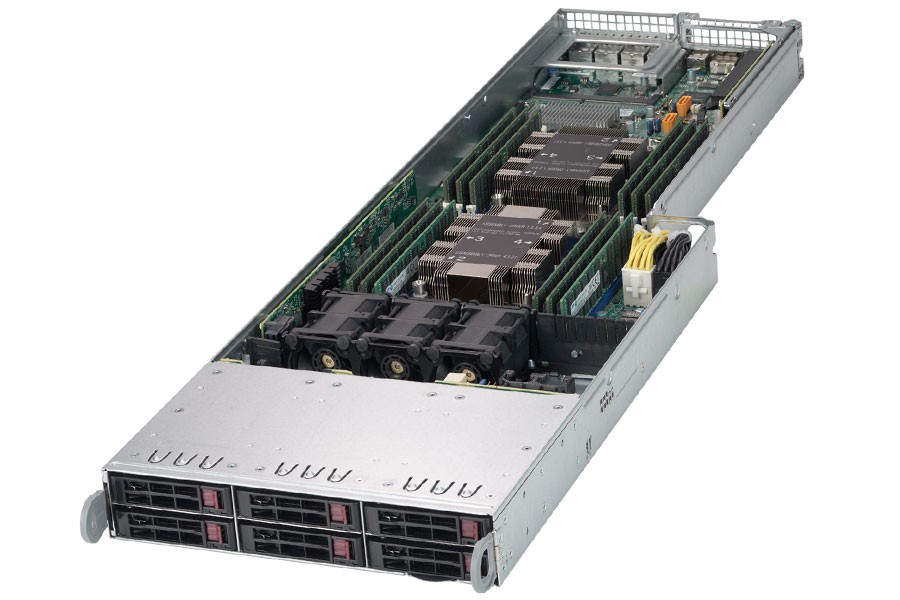

8x Hot-plug System Nodes in 4U Each node supports:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x16 (for SIOM )
  • 6 Hot-swap 2.5" SATA3 or 2 Hot-swap 2.5" SATA3 + 4 NVMe U.2 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
  • SIOM Network card, 1 dedicated IPMI LAN port
  • 1 VGA, 2 USB 3.0 ports
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Power Supplies Titanium Level (96% Efficiency)

Storage configuration notice:
(per node)
Hot-swap:
6x Hot-swap 2.5" SATA3 or
2x Hot-swap 2.5" SATA3 + 4 NVMe U.2
M.2:
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-F619P2-RTN
Processor
(per Node)
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
(per Node)
Memory Capacity:
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.63" (448mm)
Height:
6.96" (177mm)
Depth:
29" (737mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
Information LED (UID, Fan failure, Overheat)
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:
Flexible networking via SIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
(per node)
Hot-swap:
6x Hot-swap 2.5" SATA3 or 2x Hot-swap 2.5" SATA3 + 4x NVMe U.2
M.2:
M.2 Support
Expansion Slots
(per node)
PCI-Express:

1x PCI-E 3.0 x16 (Low-profile)
1x PCI-E 3.0 x16 (SIOM)
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input:

1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2090W with Input 200-220Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency:
50-60Hz
Dimension (W x H x L):
76 x 40 x 336 mm
+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB:
Max: 1A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

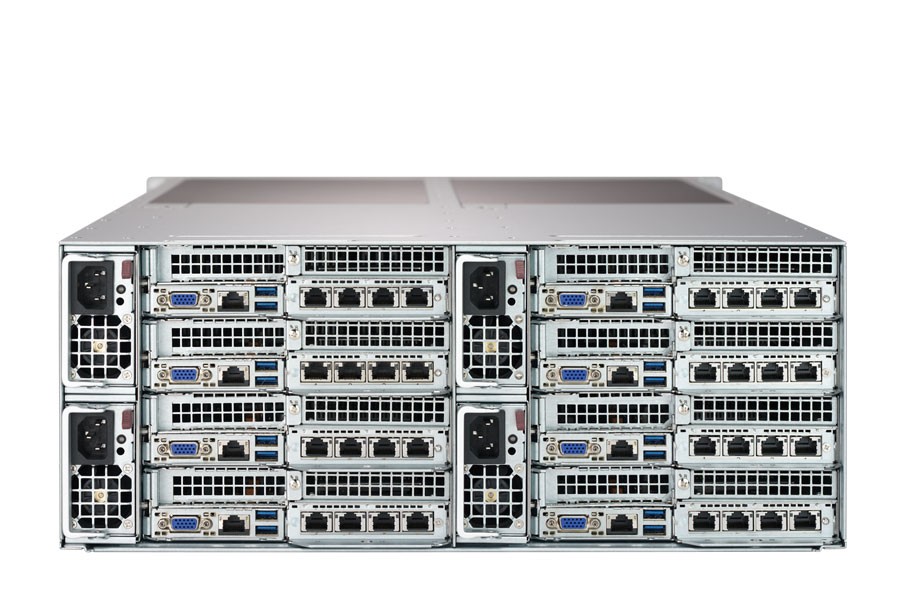

Input Output
(per node)
SATA:

14x SATA3 (6Gbps) ports
NVMe:
4x NVMe U.2 option
LAN:
SIOM flexible Network card
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
VGA:
1x VGA port
Cooling
(per node)
3x 4cm 20k RPM middle fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
F619P2-RTNF619P2-RTNF619P2-RTNF619P2-RTNF619P2-RTNF619P2-RTN
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $56.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $3.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $87.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $230.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $542.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,150.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $81.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $295.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $694.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $90.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $304.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $200.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $443.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $873.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,627.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,363.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $218.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $411.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $770.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,386.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $251.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $473.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $886.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,526.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $208.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $369.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $749.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,294.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,559.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $238.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $421.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $856.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,478.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,924.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $231.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $439.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $781.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,459.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,886.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $125.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $358.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $670.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,278.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $209.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $423.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $822.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $68.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $432.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2679
1
15652.0000
