F619P2-RC1
$12,182.00 Configured Summary
F619P2-RC1

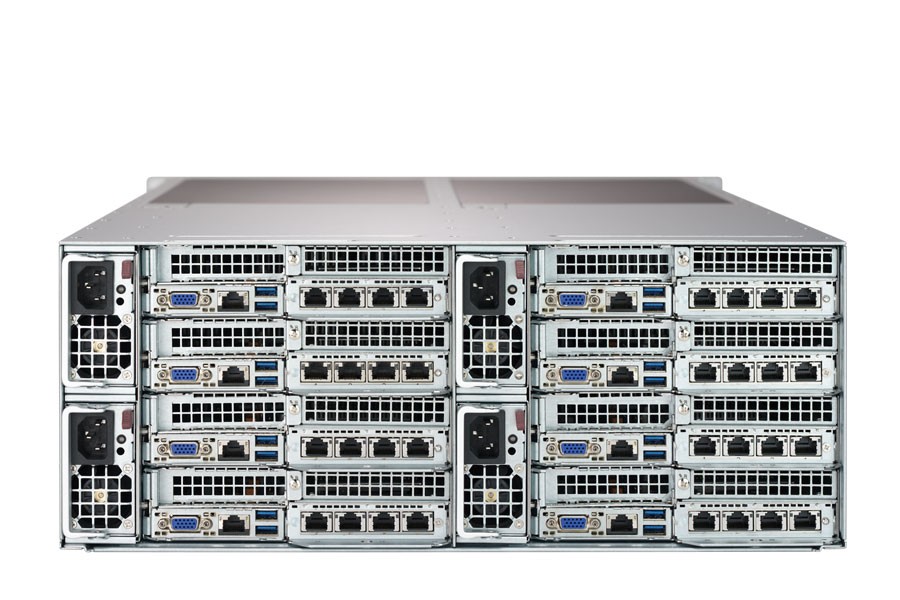

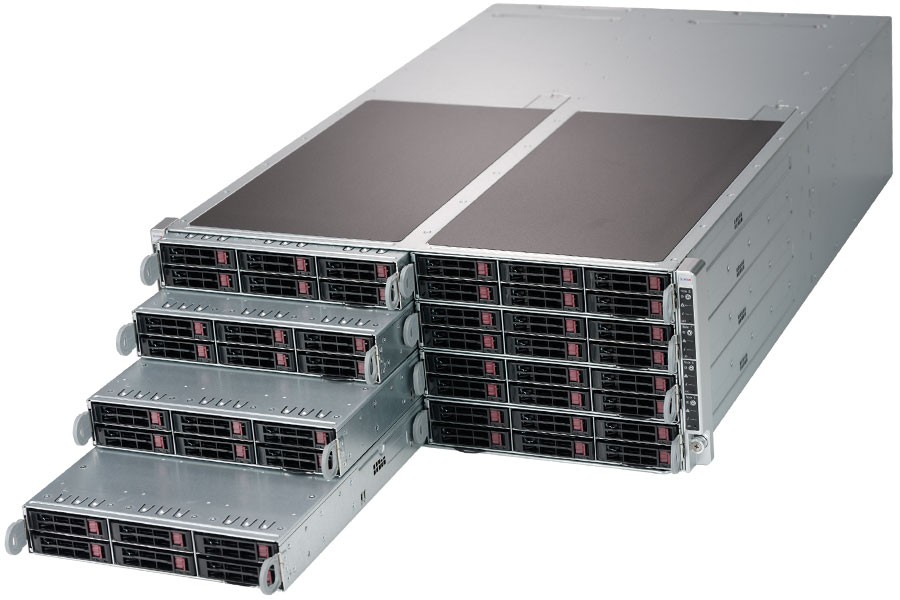

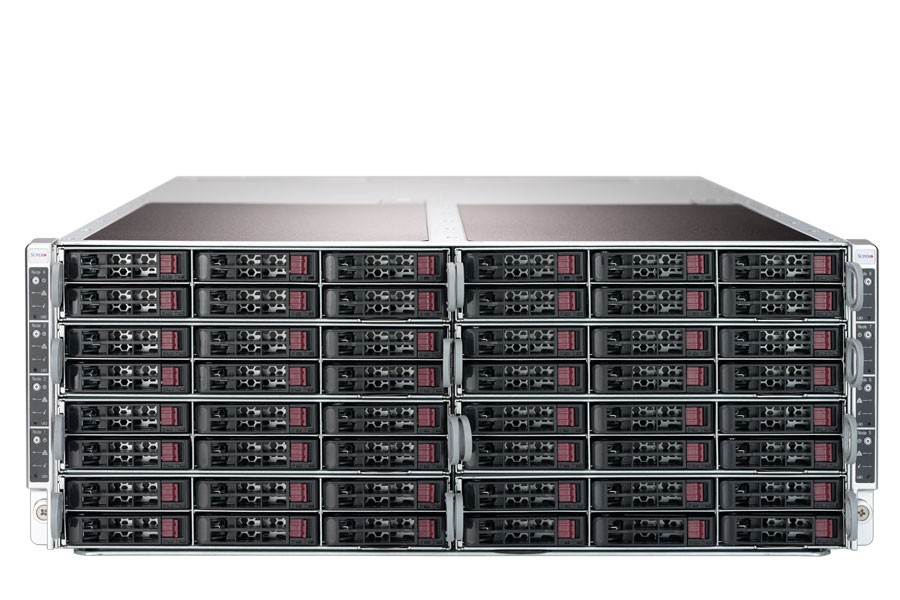

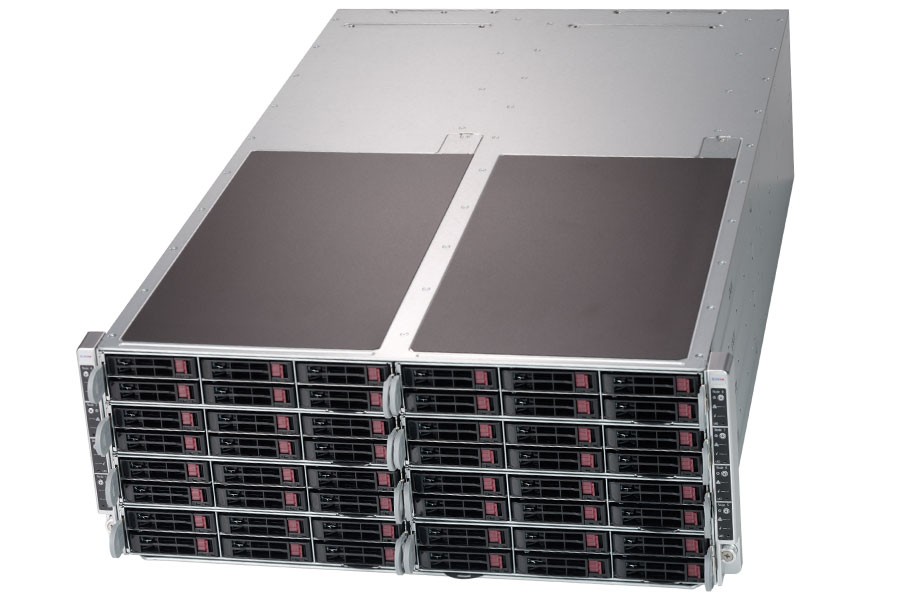

Supermicro 4U 8Nodes 48Bays Dual Scalable Processor Rackmount Server

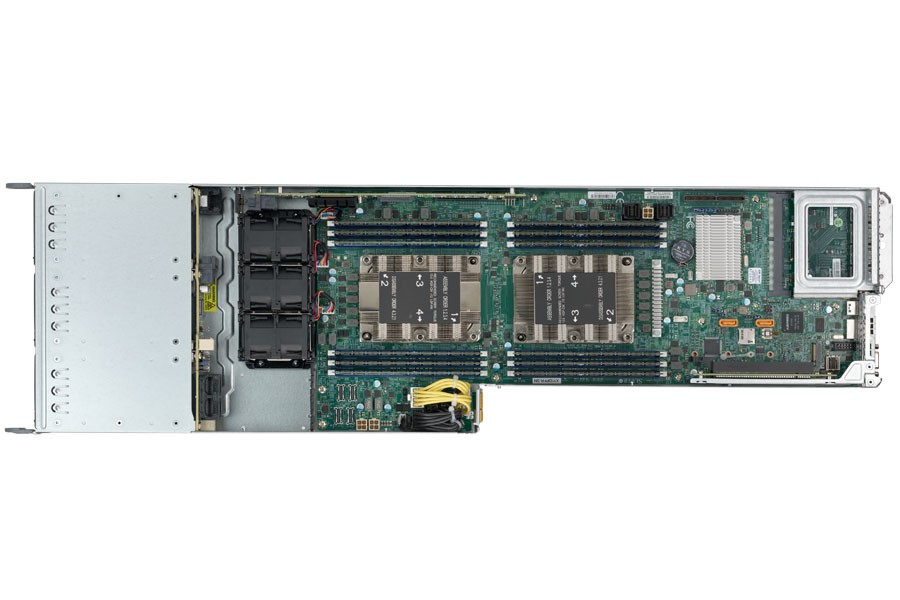

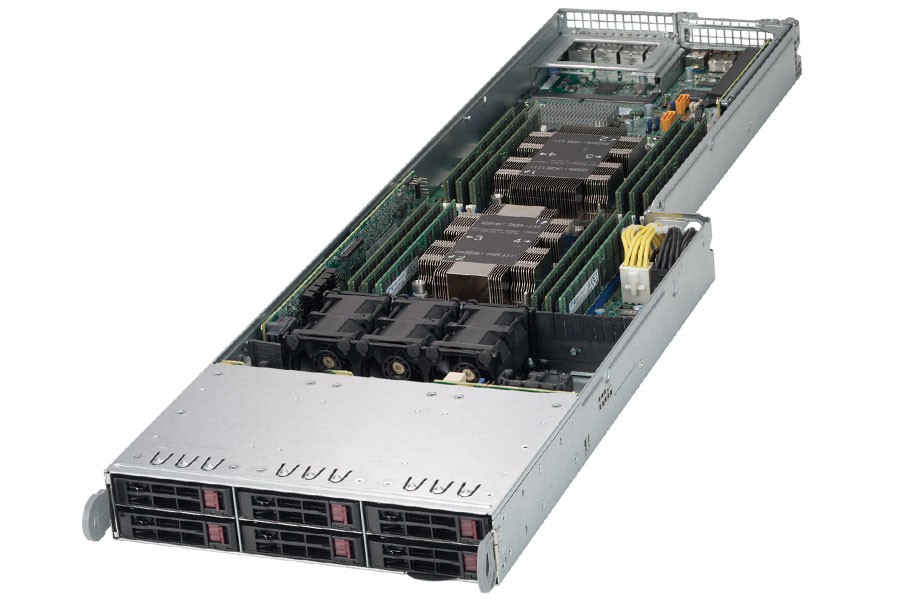

8 Hot-plug System Nodes in 4U Each node supports:
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12x DIMM slots
  • Expansion slots: 1x PCI-E 3.0 x16 (LP) 1x PCI-E 3.0 x16 (for SIOM)
  • 6x Hot-swap 2.5" SAS3/SATA3 or 2x Hot-swap 2.5" SAS3/SATA3 + 4x optional NVMe U.2
  • SAS3 via Broadcom 3108, HW RAID
  • SIOM Network card, 1x dedicated IPMI LAN port
  • 1x VGA, 2x USB 3.0 ports
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Power Supplies Titanium Level (96% Efficiency)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-F619P2-RC1
Processor
(per Node)
CPU:

Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology

Memory
(per Node)
Memory Capacity:

12 DIMM slots
Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM

Chassis
4U Rackmount Chassis
Dimensions
Width:
17.63" (448mm)
Height:
6.96" (177mm)
Depth:
29" (737mm)

Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
Information LED (UID, Fan failure, Overheat)
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS

Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3108
HW RAID
Network Controllers:
Flexible networking via SIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
(per node)
Hot-swap:

6x Hot-swap 2.5" SATA3 or 2x Hot-swap 2.5" SATA3 + 4x NVMe U.2
M.2:
M.2 Support

Expansion Slots
(per node)
PCI-Express:

1x PCI-E 3.0 x16 (Low-profile)
1x PCI-E 3.0 x16 (SIOM)

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input:

1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2090W with Input 200-220Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency:
50-60Hz
Dimension (W x H x L):
76 x 40 x 336 mm
+12V:
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB:
Max: 1A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level

Input Output
(per node)
SAS:

6x SAS3 (12Gbps) ports
NVMe:
4x NVMe U.2 option
LAN:
SIOM flexible Network card
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
VGA:
1x VGA port
Cooling
(per node)
3x 4cm 20k RPM middle fans

Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
F619P2-RC1F619P2-RC1F619P2-RC1F619P2-RC1F619P2-RC1F619P2-RC1
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $268.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $183.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $257.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $287.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $482.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
M.2 2280 SATA SSD 128GB
+ $54.00
M.2 2280 SATA SSD 256GB
+ $93.00
M.2 2280 SATA SSD 512GB
+ $167.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
