6039P-E1CR16L
$3,110.00 Configured Summary
6039P-E1CR16L
Supermicro 3U 16Bays Dual Scalable Processor Rackmount Server

  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3x UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16x DIMM slots
  • 3x PCI-E 3.0 x16, 4x PCI-E 3.0 x8 (slot 2 & 3 occupied by controller  and JBOD expansion port)
  • 16x Hot-swap 3.5" SAS3/SATA3 direct attached drive bays
  • Broadcom 3008 SAS3 AOC
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 3x Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
  • 1200W Redundant Power Supplies Titanium Level (96%)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN

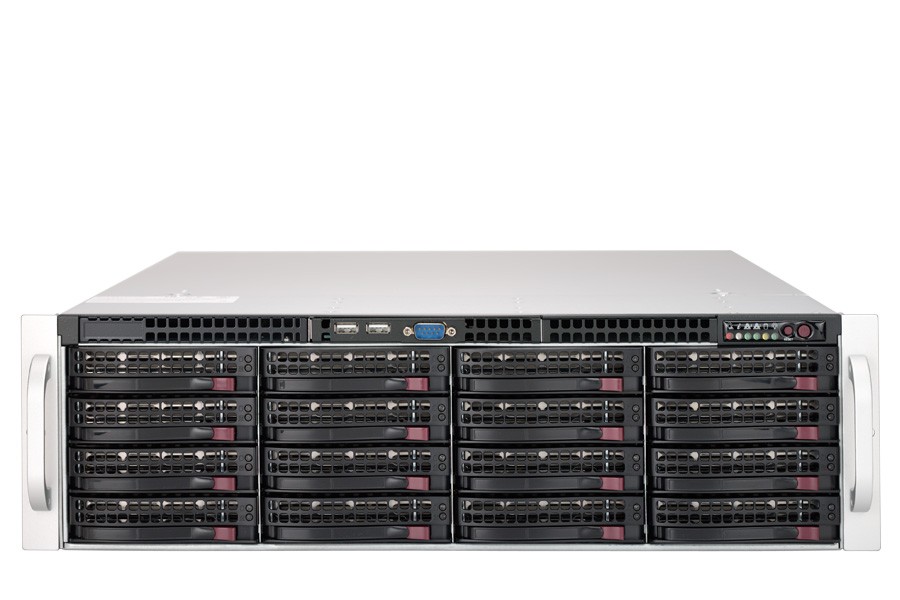

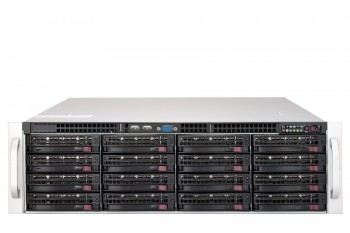

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SSG-6039P-E1CR16L
Processor
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W with IVR
Cores:
Up to 28 Cores with Intel® HT Technology
Memory
Memory Capacity:
16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
Chassis
3U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
5.2" (132mm)
Depth:
25.5" (648mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
256Mb AMI UEFI
Onboard Devices
Chipset:
Intel® C624 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3008 AOC
Broadcom 3008 controller
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Drive Bays
Hot-swap:

16 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional:
2 Optional Onboard NVMe M.2

Backplane:
SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion
Expansion Slots
3x PCI-E 3.0 x16 slot
4x PCI-E 3.0 x8 slots
Slot 2 & 3 occupied by controller and JBOD Expansion Port
Power Supply
(76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power:
1000W/1200W
Dimension (W x H x L):
76 x 40 x 336 mm
Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
19 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
4x USB 3.0 ports (rear)
1x Type A
VGA:
1x VGA port
Serial Port / Header:
1x Fast UART 16550 port / 1x Header
Cooling
3x Hot-swap 8cm redundant PWM cooling fans
2x Hot-swap 8cm rear exhaust PWM fans
Redundant cooling
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Details
Management
Software:

Intel® Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
6039P-E1CR16L6039P-E1CR16L6039P-E1CR16L6039P-E1CR16L

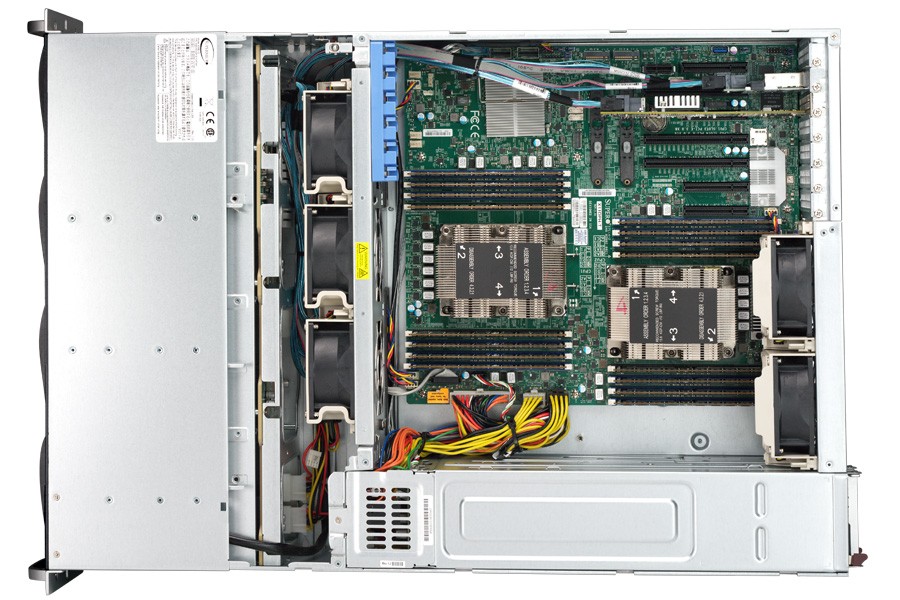

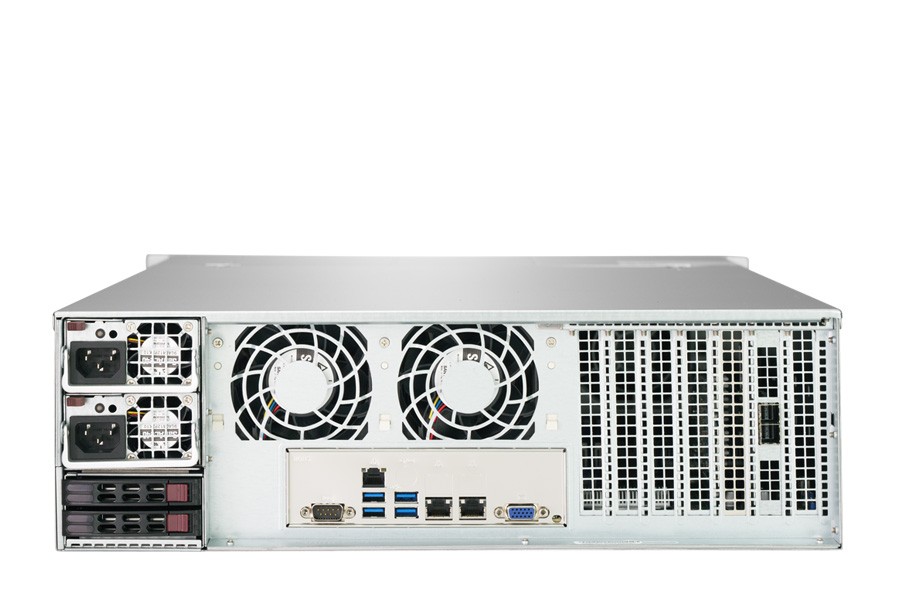

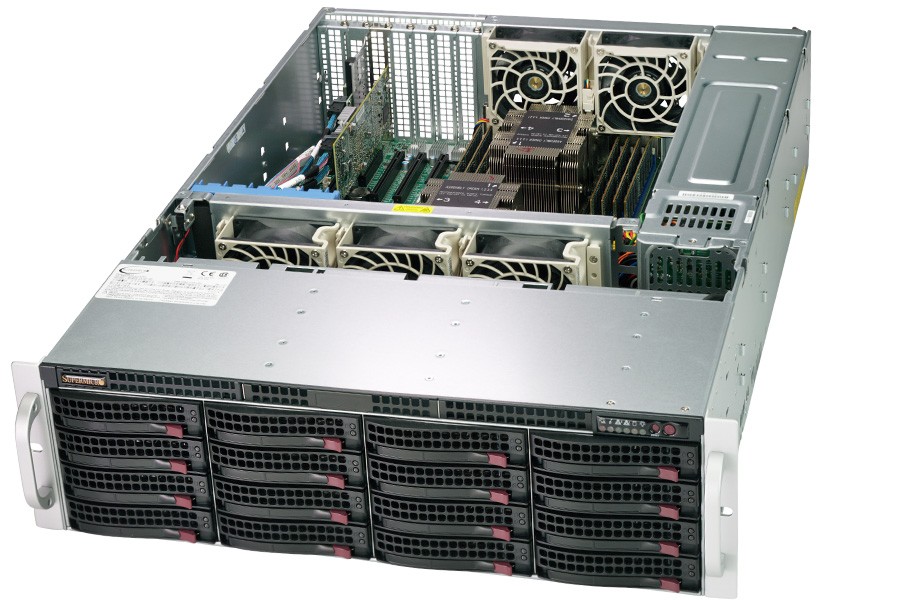

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $6,354.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $10,986.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $14,346.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $268.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
+ $49.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $104.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $145.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $244.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $305.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $61.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $116.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $209.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $257.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $330.00
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
M.2 2280 SATA SSD 128GB
+ $54.00
M.2 2280 SATA SSD 256GB
+ $93.00
M.2 2280 SATA SSD 512GB
+ $167.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
