R181-340
$2,252.00 Configured Summary

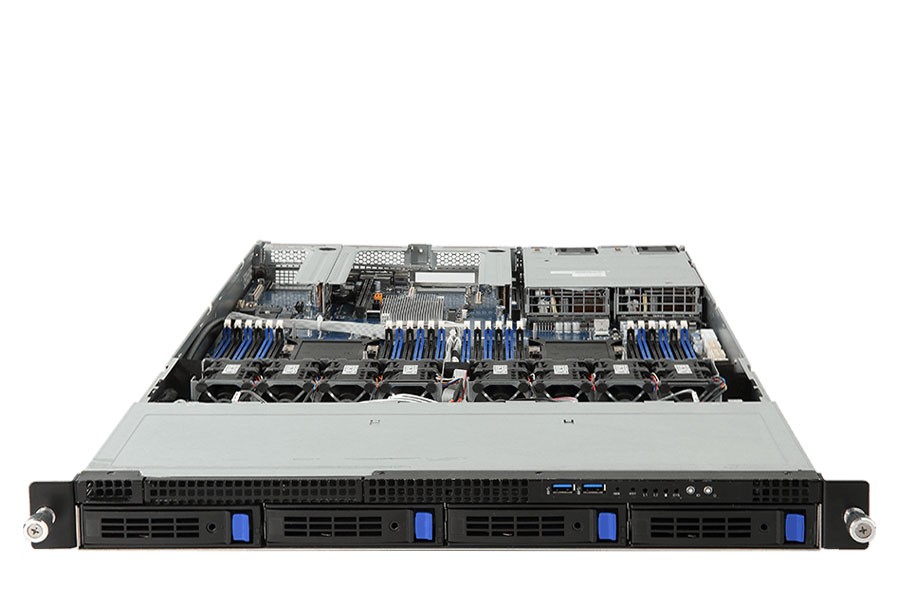

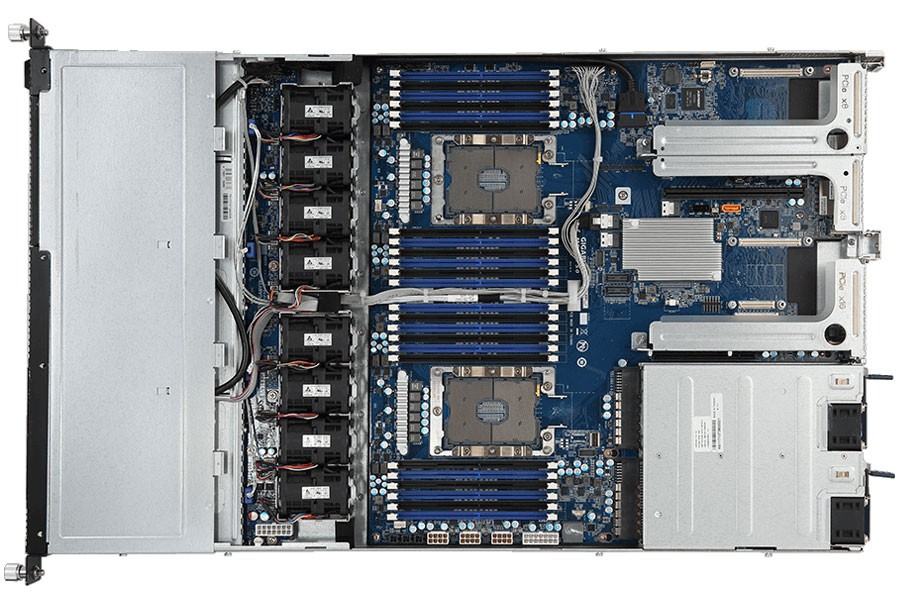

R181-340
Gigabyte 1U 4Bays Dual 2nd Gen Scalable Processor rackmount Server

  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • Dual 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port

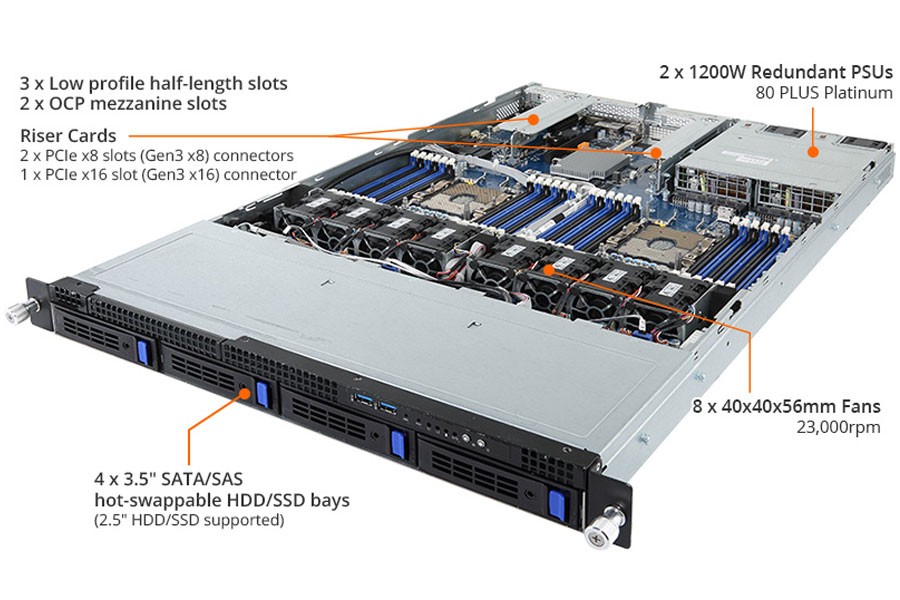

  • 4 x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays
  • 1 x 2.5" internal fixed HDD/SSD bay, 2 x 2.5" HDD/SSD kits as an option
  • 3 x PCIe Gen3 expansion slots
  • 2 x OCP Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller
  • Dual 1200W 80 PLUS Platinum redundant / hot-swap power supply

Storage configuration notice:
Hot-swap:
4x 3.5"SATA/SAS Drive or 2.5" SSD
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU R181-340
Processor
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our sales representative
Chassis
1U Rackmount Chassis
Dimensions
438mm(W) x 43.5mm(H) x 730mm(D)
Onboard Devices
LAN:
2x 1Gb/s LAN ports (Intel® I350-AM2)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
4 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SAS card is required for SAS devices support
1 x 2.5" internal fixed SATA HDD/SSD bay
2 x 2.5" internal fixed SATA HDD/SSD bays as an option
SATA:
1 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
SAS:
Supported via add-on SAS Card
RAID:
Intel® SATA RAID 0/1/10/5
Optical Drive
1 x Slim type ODD in option
Expansion Slots
Riser Card CRS1021:
2x PCIe x8 slots (Gen3 x8), Low profile half-length
Riser Card CRS1015:
1x PCIe x16 slot (Gen3 x16), Low profile half-length
2x OCP mezzanine slots
PCIe Gen3 x16
Type1, P1, P2, P3, P4, K2, K3
Power Supply
2x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
100-240V~/ 12-7A, 50-60Hz
DC Input:
240Vdc/ 6A
DC Output:
Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
Input Output
Internal I/O:
2x Power supply connectors
4x SlimSAS connectors
2x SATA 7-pin connectors
2x CPU fan headers
1x USB 3.0 header
1x TPM header
1x VROC connector
1x Front panel header
1x HDD back plane board header
1x PMBus connector
1x IPMB connector
1x Clear CMOS jumper
1x BIOS recovery jumper
Front I/O:
2x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD activity LED
2x LAN activity LEDs

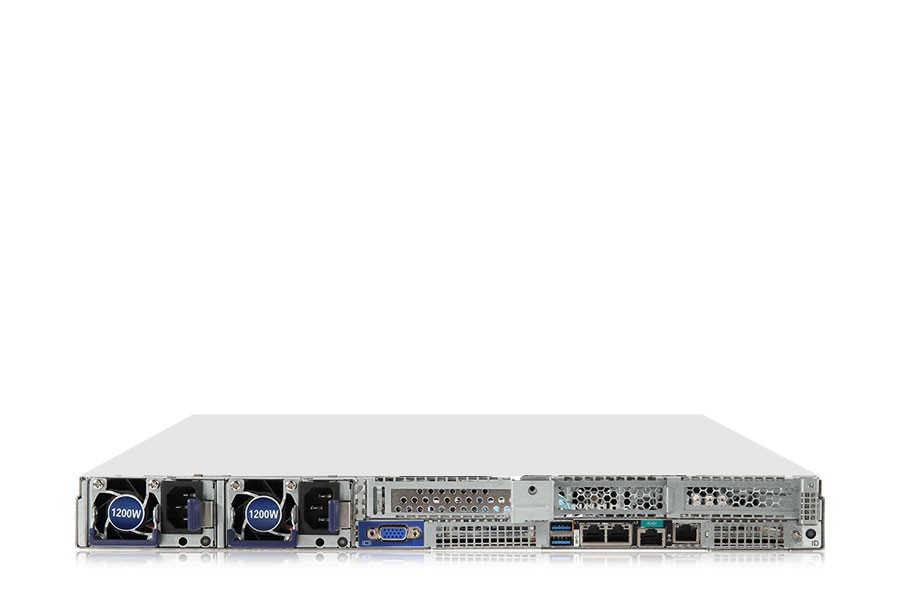

Rear I/O:
2x USB 3.0
1x VGA
1x COM (RJ45 type)
2x RJ45
1x MLAN
1x ID button with LED
Backplane I/O:
4x SATA/SAS ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Cooling
8x 40x40x56mm (23'000rpm) fans
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
TPM:
1x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
R181-340R181-340R181-340R181-340
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $214.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $285.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $349.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $361.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $436.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $477.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $577.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $221.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $261.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $281.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $315.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $348.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $376.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $429.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $490.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $564.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $160.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $174.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $223.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $229.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $299.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $306.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $359.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $381.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $456.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $484.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $147.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $188.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $209.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $264.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $331.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $349.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $389.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $399.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $466.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $499.00
OPTICAL DRIVE
*No CD-ROM
Added
Slim Internal DVD-RW
+ $39.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2692
1
1867.0000
