R181-NA0
$2,878.00 Configured Summary
R181-NA0
Gigabyte 1U 10Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Intel® Xeon® Processor Scalable Family
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Dual 1Gb/s LAN ports (Intel® I350-AM2)
  • 1x Dedicated management port
  • 10x 2.5" U.2 hot-swappable HDD/SSD bays
  • 1x PCIe Gen3 x16 expansion slot
  • 1x OCP Gen3 x16 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • Dual 1200W 80 PLUS Platinum redundant power supply

Storage configuration notice:
Hot-swap:
10 x 2.5" U.2/ SAS/ SATA hot-swappable HDD/SSD bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU R181-NA0
Processor
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our sales representative
Chassis
1U Rackmount Chassis
Dimensions
438mm(W) x 43.5mm(H) x 730mm(D)
Onboard Devices
LAN:
2x 1Gb/s LAN ports (Intel® I350-AM2)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
10 x 2.5" U.2/ SAS/ SATA hot-swappable HDD/SSD bays
SATA:
1 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
RAID:
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 5
Note: VROC module is compatible for Intel®SSD only

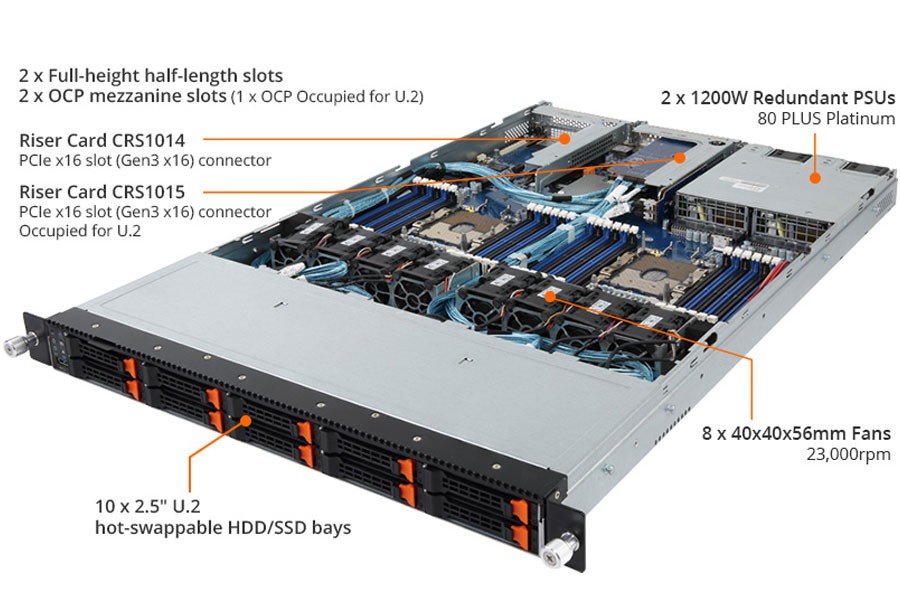

Expansion Slots
Riser Card CRS1014:
1x PCIe x16 slot (Gen3 x16), Full-height half-length
Riser Card CRS1015:
1x PCIe x16 slot (Gen3 x16), Full-height half-length
Occupied by CNV3124, 4 x U.2 HBA
2x OCP mezzanine slots
PCIe Gen3 x16
Type1, P1, P2, P3, P4, K2, K3
1 x OCP mezzanine slot is Occupied by CNVO124, 4 x U.2 mezzanine card
Power Supply
2x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
100-240V~/ 12-7A, 50-60Hz
DC Input:
240Vdc/ 6A
DC Output:
Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
Input Output
Internal I/O:
2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

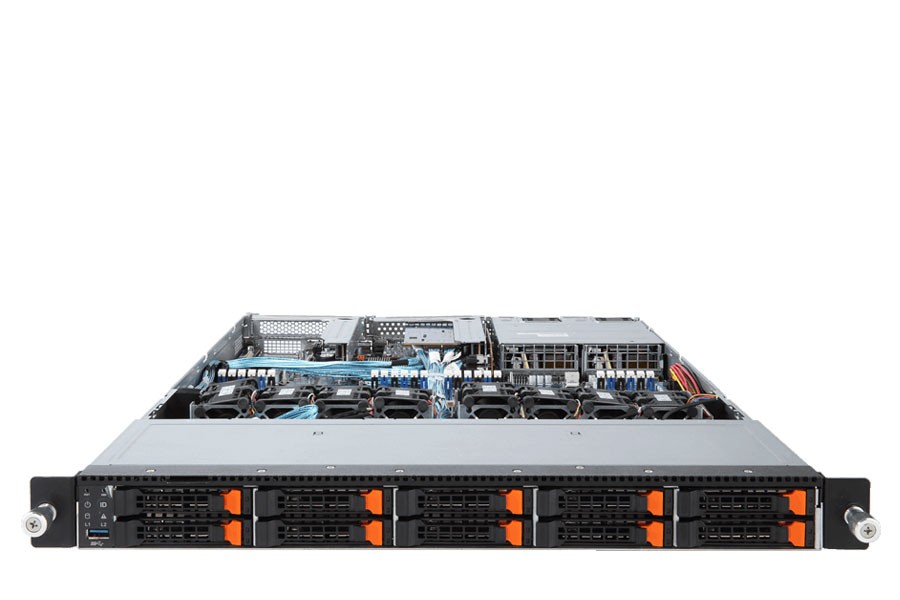

Front I/O:
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

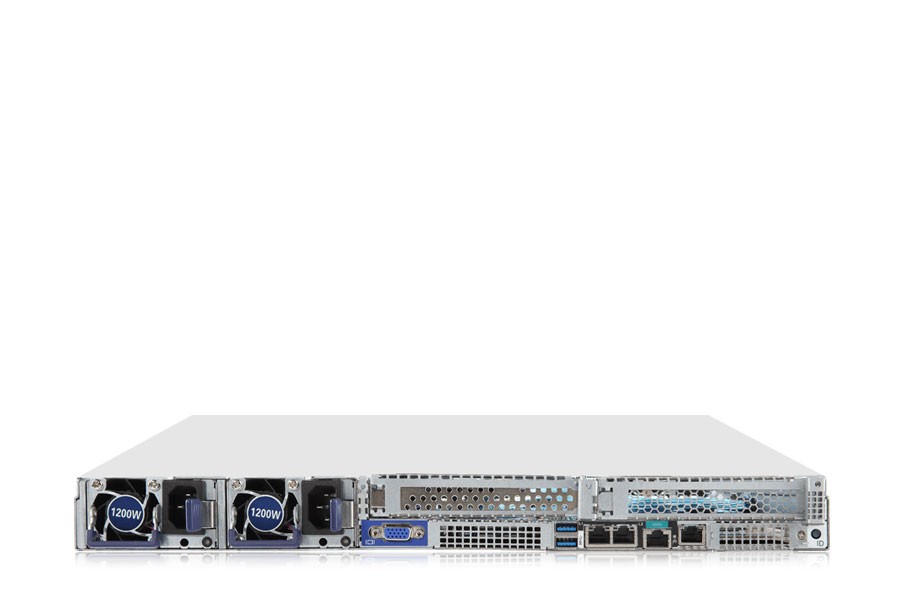

Rear I/O:
2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O:
10 x U.2 ports
Bandwidth: PCIe Gen3 x4 per port
Cooling
8x 40x40x56mm (23'000rpm) fans
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
TPM:
1x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
R181-NA0R181-NA0R181-NA0R181-NA0
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
NVMe U.2/U.3
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
Added
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $193.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $552.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,168.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $33.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $255.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $668.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,308.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
- $10.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $151.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $531.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,076.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,341.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $20.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $203.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $638.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,260.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,706.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $13.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $221.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $563.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,241.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,668.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
