H261-N80
$6,302.00 Configured Summary
H261-N80
Gigabyte 2U 4Nodes 24Bays Dual 2nd Gen Scalable Processor Rackmount Server

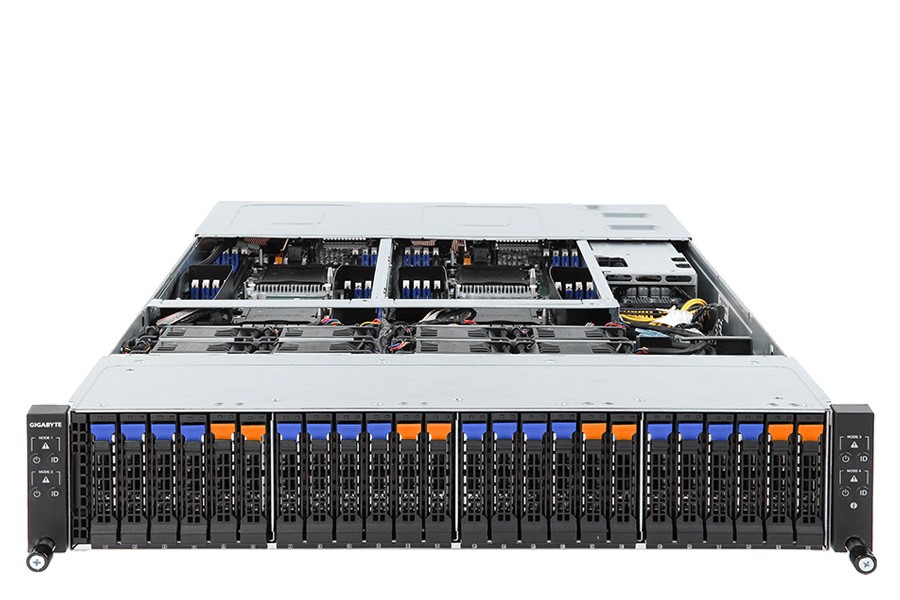

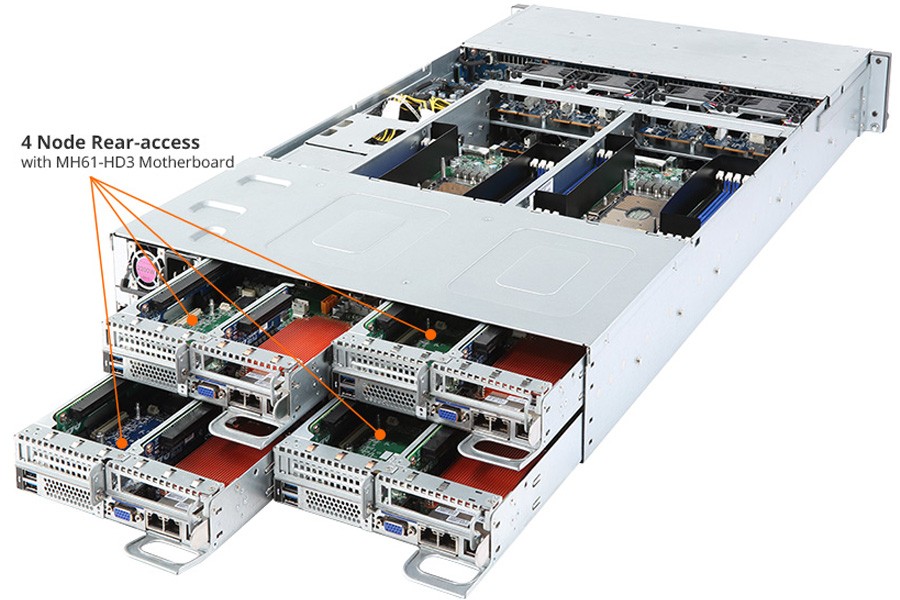

  • 2U - 4 nodes with rear access to the node trays
  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • 8 x LGA 3647 sockets
  • Intel® C621 Express Chipset
  • 6-Channel RDIMM/LRDIMM DDR4, 64 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • 8 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 4 x Dedicated management ports
  • 1 x CMC global management port
  • 8 x 2.5" U.2, 16 x SATA/SAS hot-swappable HDD/SSD bays
  • 8 x Low profile PCIe Gen3 expansion slots
  • 4 x OCP Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller
  • 2200W 80 PLUS Platinum redundant PSU
  • Optimized performance with Mellanox Infiniband EDR 100G or Ethernet 100G products

Storage configuration notice:
Hot-swap:
16x 2.5" SAS/SATA hot-swappable HDD/SSD bays
8x 2.5" U.2 or SATA hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU H261-N80
Processor
(per node)
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 165W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Memory
(per node)
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 165W (Max.)
* DCPMM 256GB x2 pcs (Per Node)
DCPMM installation locations:
DIMM_P1_( G1, J1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative

Chassis
2U Rackmount Chassis
Dimensions
440mm(W) x 87mm(H) x 820mm(D)
Onboard Devices
LAN:
Per node:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x Dedicated management port
Total:
8x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
4x Dedicated management ports
1x 10/100/1000 *CMC global management port
CMC: Chassis Management Controller, to monitor all status of computing nodes.
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Optical Drive
Per node:
4x 2.5" SAS/SATA hot-swappable HDD/SSD bays
2x 2.5" U.2 hot-swappable HDD/SSD bays
Total:
24x 2.5" hot-swappable HDD/SSD bays
16x 2.5" SAS/SATA hot-swappable HDD/SSD bays
8x 2.5" U.2 hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
RAID:
For SATA drives:
Intel® SATA RAID 0/1/5/10
For U.2 drives:
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 5
Note: VROC module is for Intel®SSD only

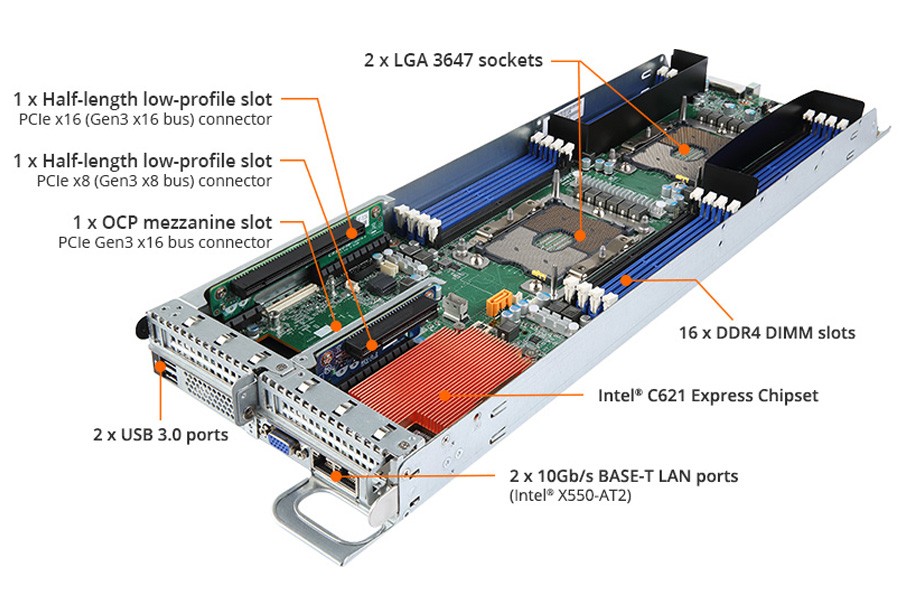

Expansion Slots
Per node:
1x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus)
1x Half-length low-profile slot with PCIe x8 (Gen3 x8 bus)
1x OCP mezzanine slot with PCIe Gen3 x16 bus
Total:
4x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus)
4x Half-length low-profile slot with PCIe x8 (Gen3 x8 bus)
4x OCP mezzanine slot with PCIe Gen3 x16 bus
Power Supply
2x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
100-127V~/ 14A, 47-63Hz
200-240V~/ 12.6A, 47-63Hz
DC Output:
Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
Input Output
Internal I/O:
(Per node)
1x COM header
1x TPM header
1x BMC SGPIO header
1x JTAG BMC header
1x PLD header
1x Clear CMOS jumper
1x IPMB connector
1x Buzzer
Front I/O:
(Per node)
1x Power button with LED
1x ID button with LED
1x Status LED
(Total)
4x Power button with LED
4x ID button with LED
4x Status LED
1x CMC status LED
Only one CMC status LED per system

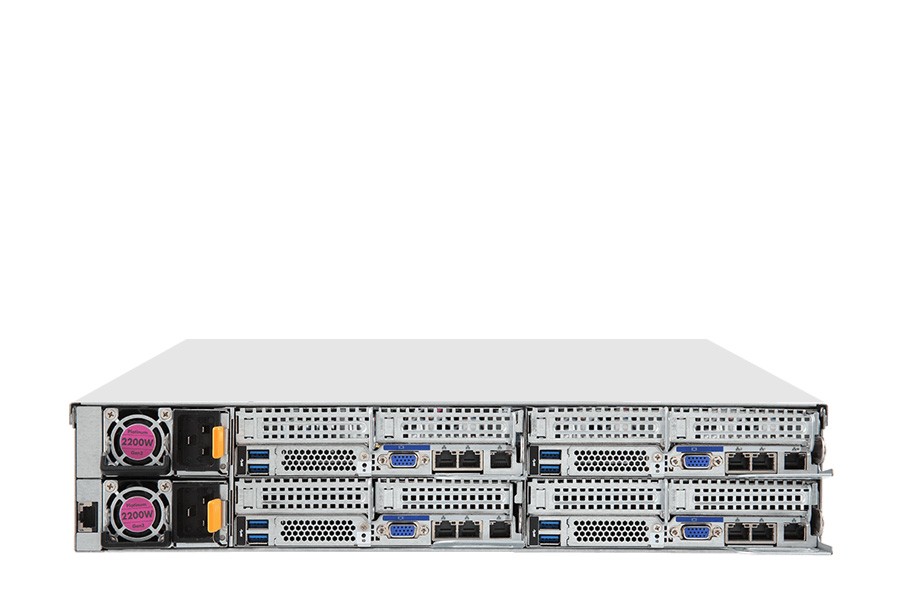

Rear I/O:
(Per node)
2x USB 3.0
1x VGA
2x RJ45
1x RJ45 MLAN
1x ID LED
(Total)
8x USB 3.0
4x VGA
8x RJ45
4x RJ45 MLAN
4x ID LEDs
1x CMC global management port
Only one CMC global management port per system
Backplane I/O:
24x ports
12Gb/s & 6Gb/s compatible
PCIe Gen3 x4 U.2 port

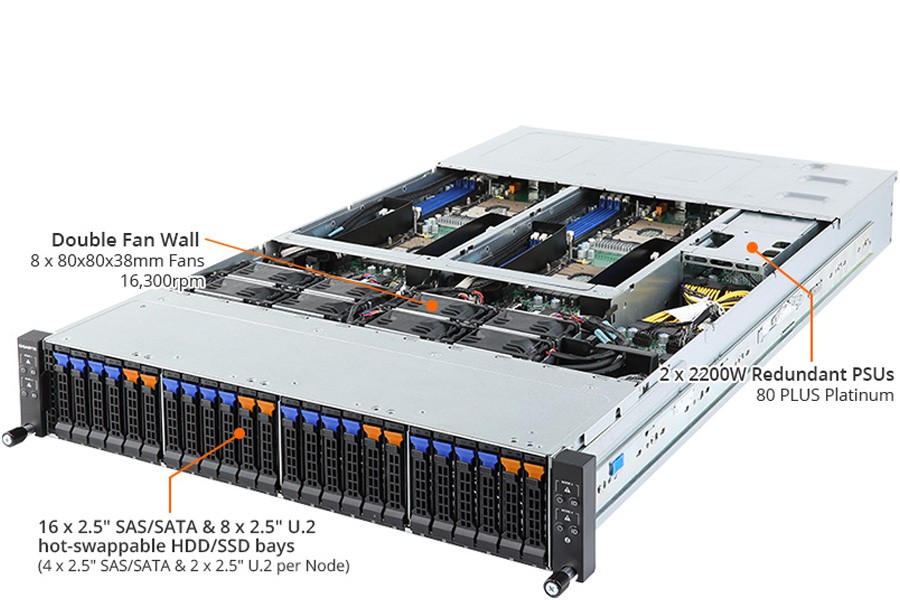

Cooling
8x 80x80x38mm (16,300rpm) fans
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details
TPM:
1x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
H261-N80H261-N80H261-N80H261-N80H261-N80H261-N80H261-N80
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Memory-1st Node
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $16.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $156.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $160.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $508.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $552.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,340.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,356.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
+ $225.00
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $344.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $562.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $810.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $950.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,428.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,458.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,744.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $2,064.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $2,112.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,929.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Memory-2nd Node
*No Memory
Added
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $324.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $340.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $480.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $484.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $876.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,664.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,680.00
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
+ $225.00
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $344.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $562.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $810.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $950.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,428.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,458.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,744.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $2,064.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $2,112.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,929.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Memory-3rd Node
*No Memory
Added
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $324.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $340.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $480.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $484.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $876.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,664.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,680.00
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
+ $225.00
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $344.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $562.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $810.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $950.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,428.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,458.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,744.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $2,064.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $2,112.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,929.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Memory-4th Node
*No Memory
Added
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $324.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $340.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $480.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $484.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $876.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,664.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,680.00
Enterprise-Class HDD/SSD
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $113.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $152.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $282.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $607.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,062.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,141.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
Added
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $43.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $134.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $343.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $710.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $140.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $335.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $684.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,398.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $142.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $344.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $745.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Intel P4510 U.2 2.5" PCIe NVMe SSD 1TB
+ $419.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 2TB
+ $948.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 4TB
+ $1,489.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 8TB
+ $2,508.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 1.6TB
+ $739.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 3.2TB
+ $1,589.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 6.4TB
+ $2,899.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 3.84TB
+ $936.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 7.68TB
+ $1,918.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB
+ $213.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB
+ $438.00
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $207.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $246.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $376.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $701.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,156.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,235.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $94.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $137.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $228.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $437.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $804.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $234.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $429.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $778.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,492.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $236.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $438.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $839.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2701
1
5659.0000
